Fabricant: KIRA Leuchten

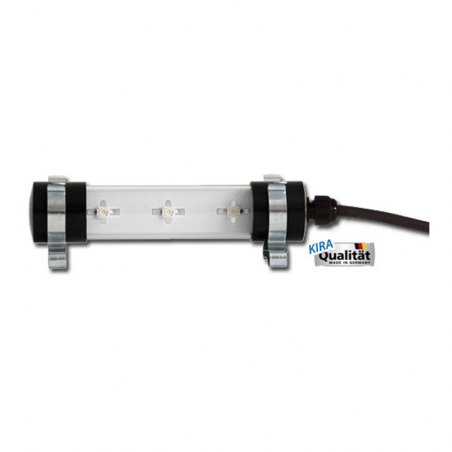

Ke-LED-EA 3003-P (court) | Lampe fluorescente LED

Thanks to its compact size of 150 x 33mm, the KE-LED-EA 3003-P is ideally suited for mounting in machines and systems with narrow or limited mounting possibilities for lighting. By means of the spring steel clamps included in the scope of delivery, the luminaire can be installed quickly and easily and the illumination can be adjusted optimally.

Technical Data KE-LED-EA 3003-P
Illuminant 3 POWER LEDs / 5000 Kelvin
Power 3 W
Luminous flux ca. 300 lumenów
Voltage 24V
Protective tube plexi glas, 30 mm Ø
Diffusor without (optinal available)
End caps ABS, black
Fixing clamps 2 fixing clamps made out of steel
Cable 5 m H05RN-F 2 x 1,0 mm2 (another lengths on request)
Plug without
Protection (IP) IP54
Protection class III
Length / Weight 150 mm / 0,4 kg
Ambient temperature range -10°C - +40°C


Type Dimensions in mm
a b c d e f
KE-LED-EA 3003-P 150 33 30 94 25 20


2 fixing clamps included in the scope of delivery

Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

Thanks to its compact size of 150 x 33mm, the KE-LED-EA 3003-P is ideally suited for mounting in machines and systems with narrow or limited mounting possibilities for lighting. By means of the spring steel clamps included in the scope of delivery, the luminaire can be installed quickly and easily and the illumination can be adjusted optimally.

Technical Data KE-LED-EA 3003-P
Illuminant 3 POWER LEDs / 5000 Kelvin
Power 3 W
Luminous flux ca. 300 lumenów
Voltage 24V
Protective tube plexi glas, 30 mm Ø
Diffusor without (optinal available)
End caps ABS, black
Fixing clamps 2 fixing clamps made out of steel
Cable 5 m H05RN-F 2 x 1,0 mm2 (another lengths on request)
Plug without
Protection (IP) IP54
Protection class III
Length / Weight 150 mm / 0,4 kg
Ambient temperature range -10°C - +40°C


Type Dimensions in mm
a b c d e f
KE-LED-EA 3003-P 150 33 30 94 25 20


2 fixing clamps included in the scope of delivery
