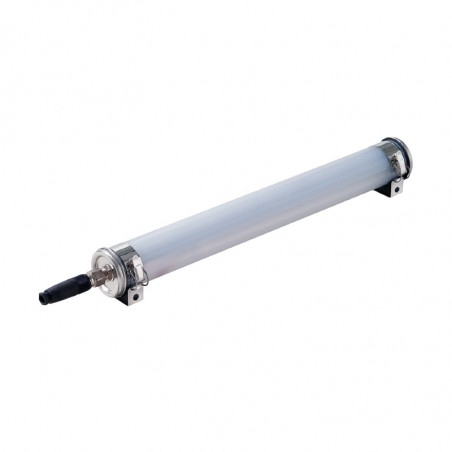

Fixation Celsius 70 SA 613 mm
  • Fixation Celsius 70 SA 613 mm

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Sammode

Fixation Celsius 70 SA 613 mm

CELSIUS 70 SA 613 mm

Basic features
  • fitting into confined spaces
  • operation down to -60oC
  • saving energy
  • increased service intervals
  • 5-year guarantee
Optimum temp.: -60oC do -35oC
Technology: LED
Light output: 741 lm
Power supply: 24V DC


Key features
Plug and Play installation with disconnectable plug
Designed for frequent on/off cycles
Infrequent maintenance
Resistant to detergents
Durable and maintainable luminaires

Materials
Diffuser
Special food processing housing in polycarbonate protected with a layer of co-extruded methacrylate
End caps, fixing straps, etc. – 304L stainless steel
Gaskets – EPDM

Standards
Sealing IP68 and IP69K
Shock resistance IK10
Fire resistance 650 °C

Technical features
Light source
LED modules for extreme cold developed by Sammode
50 000H L80/B50
Replaceable modules
Optics
Special satinised LED diffuser
Thermal management
Aluminium heat sink
Power supply
24V – 26V DC
Operating temperature
-60oC do +25oC
Connection
Disconnectable plug, cable Ø 8-10 mm (2x1,5 mm2)
Fixing
2 spring-loaded stainless steel fixing straps
Method of construction
Single-piece housing with reinforced sealing through radial expansion of the gasket
Closure by tightening the nut under the cable gland


Zasady zamawiania
Strumień * (lm) Znakowanie Symbol Moc (W) Optyka T (°K) L (mm)
741 CEL70 24DC 2M6L10 POME PS2 SA 6430 0050 18 4000 613
