Multimètre VC9808 + RLC EnergyLab
  • Multimètre VC9808 + RLC EnergyLab

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Kyoritsu

Multimètre VC9808 + RLC EnergyLab

  • 111553

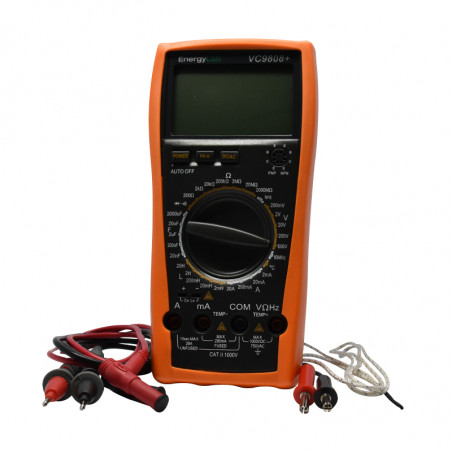

The VC9808+ RLC EnergyLab Multimeter is a precision 3 1/2 digit multimeter (max 1999) with RLC measurement functions. It is equipped with a display with a digit height of 26mm, which allows easy reading and convenient operation. The parameters measured by the multimeter are: DCV voltage up to 1000V and ACV 750V, current DCA and ACA up to 20A, resistance up to 2000 M Ohm, capacity 2000 uF, inductance 20 H, temperature 1000 degrees C, frequency 10 MHz, diode test, hFe test of transistors and continuity test. The multimeter is protected against overload. In order to ensure high accuracy and resolution of the measurements, an A / D converter with double integration was used. The housing is made of durable ABS plastic and additionally secured with a rubber protective cover. The meter version meets the safety category III 1000V.

  • Display: 3 ½ max. Indication 1999
  • Sampling 3x / s
  • LCD display (26mm digits high)
  • PEAK HOLD stop function on the maximum value display
  • Low battery indication
  • Auto-shutdown
  • Overload protection
  • Safety: EN61010-1, CAT II 1000V
Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

The VC9808+ RLC EnergyLab Multimeter is a precision 3 1/2 digit multimeter (max 1999) with RLC measurement functions. It is equipped with a display with a digit height of 26mm, which allows easy reading and convenient operation. The parameters measured by the multimeter are: DCV voltage up to 1000V and ACV 750V, current DCA and ACA up to 20A, resistance up to 2000 M Ohm, capacity 2000 uF, inductance 20 H, temperature 1000 degrees C, frequency 10 MHz, diode test, hFe test of transistors and continuity test. The multimeter is protected against overload. In order to ensure high accuracy and resolution of the measurements, an A / D converter with double integration was used. The housing is made of durable ABS plastic and additionally secured with a rubber protective cover. The meter version meets the safety category III 1000V.

  • Display: 3 ½ max. Indication 1999
  • Sampling 3x / s
  • LCD display (26mm digits high)
  • PEAK HOLD stop function on the maximum value display
  • Low battery indication
  • Auto-shutdown
  • Overload protection
  • Safety: EN61010-1, CAT II 1000V
