Fabricant: ABB

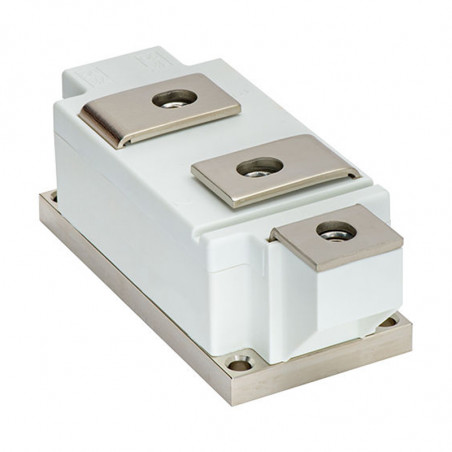

Modules ABB électro isolés

The ABB is a semiconductors manufacturer characterized by high quality. Modules are used to drive industrial motors, smoothly accelarating fans and pumps and supply power to demanding applications.


The above module has a standard housing commonly found on the market. Module is characterized by low losses when working at high temperatures. The module structure is pressed by the main spring against the base plate instead of a soldered joint. This design has better properties and ensures a longer life of the semiconductor.


Modules is characterized by

  • High reliability
  • Industry standard housing, size 60 mm
  • Insulated baseplate by AIN ceramic
  • Low losses when working at high temperatures
  • UL recognized
  • Voltage range 1,8 - 2,2 kV
  • Forward current up to 890 A

Application

  • Input rectifier in AC/AC converters
  • DC power supply for applications such as industrial and renewables
  • AC motor soft starters and variable speed drives in applications such as industrial and renewables

Types of electro-insulated modules

Part number URRM [V] IFAV [A] Configuration
5SET 0540T1800 1800 542 TT
5SEG 0540T1820 1800 542 TD
5SEE 0540T1830 1800 542 DT
5SED 0890T2240 2200 889 DD
