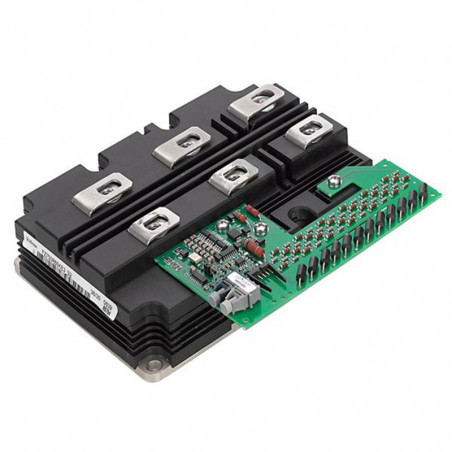

modules IGBT à haute tension
  • modules IGBT à haute tension

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Mitsubishi

modules IGBT à haute tension

VCES
[V]		 Generation and base material Configuration IC[A]
200 400 600 750
1700 Gl(Cu) single
half bridge     CM600DY-34H
chopper     CM600E2Y-34H
G3(AISiC) single
half bridge
G4(Cu) half bridge
Gf(AISiC) pojedyńczy
half bridge
pojedyńczy
2500 Gl(Cu) single
half bridge   CM400DY-50H
G2(Cu) single
G3(AISiC) single
3300 G2(Cu) single
half bridge   CM400DY-66H
single
G3(AISiC) single   CM400HG-66H
single
4500 G2(Cu) single   CM400HB-90H CM600HB-90H
G3(AISiC) single     CM600HG-90H-
6500 G3(AISiC) single CM200HG-130H3) CM400HG-130H1),3) CM600HG-130H3) CM750HG-130R1),2),3)
single   CM400E4G-130H3)

1)1 during work out,2)CSTBT technology, 3)casing insulation (10,2kVrms. ),4)casing 190 x 140 ,5)new R series

VCES
[V]		 Generation and base material Configuration IC[A]
800 900 1000 1200
1700 Gl(Cu) single CM800HA-34H     CM1200HA-34H
half bridge
chopper
G3(AISiC) single       CM1200HC-34H
half bridge CM800DZ-34H
CM800DZB-34W
G4(Cu) half bridge       CM1200DB-34N!
Gf(AISiC) pojedyńczy
half bridge       CM1200DC-34N!
pojedyńczy
2500 Gl(Cu) single CM800HA-50H     CM1200HA-50H
half bridge
G2(Cu) single CM800HB-50H     CM1200HB-50H
G3(AISiC) single
3300 G2(Cu) single CM800HA-66H     CM1200HA-66H
half bridge
single CM800HB-66H     CM1200HB-66H
G3(AISiC) single CM800HC-66H   CM1000HC-66R1,5) CM1200HC-66H
CM1200HG-66H3
single CM800E2C-66H
CM800E4C-66H
CM800E6C-66H		   CM1000E4C-66R11,5)
4500 G2(Cu) single   CM900HB-90H
G3(AISiC) single CM800HG-90R1),2),3) CM900HC-90H
CM900HG-90H3		   CM1200HC-90R15
CM1200HG-90R135
6500 G3(AISiC) single
single

1)1 during work out,2)CSTBT technology, 3)casing insulation (10,2kVrms. ),4)casing 190 x 140 ,5)new R series

VCES
[V]		 Generation and base material Configuration IC[A]
1500 1600 1800 2400
1700 Gl(Cu) single
half bridge
chopper   CM1600HC-34H CM1800HC-34H CM2400HC-34H
G3(AISiC) single
half bridge
G4(Cu) half bridge     CM1800HC-34N2)
CM1800HCB-34N2), 3)		 CM2400HC-34N2
CM2400HCB-34N2),4)
Gf(AISiC) pojedyńczy
half bridge
pojedyńczy
2500 Gl(Cu) single
half bridge
G2(Cu) single
G3(AISiC) single
3300 G2(Cu) single
half bridge
single CM1500HC-66R
CM1500HG-66R1),3),5)
G3(AISiC) single
single
4500 G2(Cu) single
G3(AISiC) single
6500 G3(AISiC) single
single

1)1 during work out,2)CSTBT technology, 3)casing insulation (10,2kVrms. ),4)casing 190 x 140 ,5)new R series

Type Maximum parameters V ce(sat) Tj =25°C
[V]		 IGBT
Rth(j-c)
[°C/W]		 Diode Rth(j-c)
[°C/W]		 Rth(j-c) (°C/W) Casing
Vces
[V]		 Ic |
[A]		 Viso
[V]
1700V
CM600DY-34H 1700 600 4000 2.75 0.0180 0.056 0.016 HV2
CM600E2Y-34H 1700 600 4000 2.75 0.0180 0.056 0.016 HV4
CM800HA-34H 1700 800 4000 2.75 0.0135 0.042 0.012 HV1
CM800DZ-34H 1700 800 4000 2.60 0.0200 0.034 0.016 HV2
CM800DZB-34N 1700 800 4000 2.10 0.0240 0.034 0.016 HV2
CM1200HA-34H 1700 1200 4000 2.75 0.0090 0.028 0.008 HV1
CM1200HC-34H 1700 1200 4000 2.50 0.0120 0.021 0.008 HV1
CM1200DB-34N 1700 1200 4000 2.15 0.0180 0.04 0.016 HV10
CM1200DC-34N 1700 1200 4000 2.15 0.0190 0.042 0.016 HV10
CM1200E4C-34N 1700 1200 4000 2.15 0.0190 0.042 0.016 HV5
CM1200HCB-34N 1700 1200 4000 2.05 0.0145 0.0205 0.011 HV5
CM1600HC-34H 1700 1600 4000 2.60 0.0100 0.017 0.008 HV1
CM1800HC-34H 1700 1800 4000 2.40 0.0080 0.013 0.006 HV6
CM1800HC-34N 1700 1800 4000 2.15 0.0130 0.028 0.011 HV5
CM1800HCB-34N 1700 1800 4000 2.00 0.0090 0.013 0.007 HV6
CM2400HC-34H 1700 2400 4000 2.60 0.0070 0.012 0.006 HV6
CM2400HC-34N 1700 2400 4000 2.15 0.0098 0.021 0.008 HV5
CM2400HCB-34N 1700 2400 4000 2.10 0.0080 0.012 0.006 HV6
2500V
CM400DY-50H 2500 400 6000 3.2 0.036 0.072 0.016 HV3
CM800HA-50H 2500 800 6000 3.2 0.018 0.036 0.008 HV5
CM800HB-50H 2500 800 6000 2.8 0.012 0.024 0.008 HV7
CM1200HA-50H 2500 1200 6000 3.2 0.012 0.024 0.006 HV6
CM1200HB-50H 2500 1200 6000 2.8 0.008 0.016 0.006 HV6
CM1200HC-50H 2500 1200 6000 2.8 0.0085 0.017 0.006 HV6
3300V
CM400DY-66H 3300 400 6000 4.4 0.036 0.072 0.016 HV3
CM400HG-66H 3300 400 10200 3.3 0.030 0.060 0.018 HV9
CM800E2C-66H 3300 800 6000 3.8 0.012 0.024 0.008 HV6
CM800E4C-66H 3300 800 6000 3.8 0.013 0.025 0.006 HV6
CM800E6C-66H 3300 800 6000 3.3 0.013 0.025 0.008 HV6
CM800HA-66H 3300 800 6000 4.4 0.018 0.036 0.008 HV5
CM800HB-66H 3300 800 6000 3.8 0.012 0.024 0.008 HV7
CM800HC-66H 3300 800 6000 3.3 0.013 0.025 0.008 HV7
CM1200HA-66H 3300 1200 6000 4.4 0.012 0.024 0.006 HV6
CM1200HB-66H 3300 1200 6000 3.8 0.008 0.016 0.006 HV6
CM1200HC-66H 3300 1200 6000 3.3 0.0085 0.017 0.006 HV6
CM1200HG-66H 3300 1200 10200 3.3 0.010 0.020 0.006 HV8
CM1000HC-66R 3300 1000 6000 2.45 0.012 0.022 0.009 HV7
CM1000E4C-66R 3300 1000 6000 2.45 0.012 0.022 0.007 HV6
CM1500HC-66R 3300 1500 6000 2.45 0.008 0.016 0.006 HV6
CM1500HG-66R 3300 1500 10200
4500V
CM400HB-90H 4500 400 6000 3.0 0.021 0.042 0.015 HV7
CM600HB-90H 4500 600 6000 3.0 0.0135 0.027 0.010 HV7
CM600HG-90H 4500 600 10200 3.5 0.016 0.033 0.010 HV11
CM800HG-90R 4500 800 10200
CM900HB-90H 4500 900 6000 3.0 0.009 0.018 0.007 HV6
CM900HC-90H 4500 900 6000 3.4 0.011 0.022 0.007 HV6
CM900HG-90H 4500 900 10200 3.4 0.011 0.022 0.007 HV8
CM1200HC-90R 4500 1200 6000 3.5 0.009 0.018 0.006 HV6
CM1200HG-90R 4500 1200 10200 3.5 0.010 0.019 0.006 HV8
6500V
CM200HG-130H 6500 200 10200 5.1 0.042 0.066 0.018 HV9
CM400E4G-130H 6500 400 10200 5.1 0.021 0.036 0.012 HV8
CM400HG-130H 6500 400 10200 4.5 0.021 0.033 0.01 HV11
CM600HG-130H 6500 600 10200 5.1 0.014 0.022 0.006 HV8
CM750HG-130R 6500 750 10200 3.9 0.012 0.022 0.006 HV8

Symbol Electrical scheme
H
T
D

Casing - HV1
CM800HA-34H, CM1200HA-34H, CM1200HC-34H, CM1600HC-34H		 Casing - HV2
CM600DY-34H, CM800DZ-34H, CM800DZB-34N
Casing - HV3
CM400DY-50H, CM400DY-66H		 Casing - HV4
CM600E2Y-34H
Casing - HV5
CM1200E4C-34N, CM1200HCB-34N, CM1800HC-34N, CM2400HC-34N, CM800HA-50H, CM800HA-66H		 Casing - HV6
CM1800HC-34H, CM1800HCB-34N, CM2400HC-34H, CM2400HCB-34N, CM1200HA-50H, CM1200HB-50H, CM1200HC-50H, CM800E2C-66H, CM800E4C-66H, CM800E6C-66H, CM1200HA-66H, CM1200HB-66H, CM1200HC-66H, CM1000E4C-66R, CM1500HC-66R, CM900HB-90H, CM900HC-90H, CM1200HC-90R
Casing - HV7
CM800HB-50H, CM800HB-66H, CM800HC-66H, CM1000HC-66R ,CM400HB-90H, CM600HB-90H		 Casing - HV8
CM1200HG-66H, CM900HG-90H, CM1200HG-90R, CM400E4G-130H, CM600HG-130H, CM750HG-130R
Casing - HV9
CM400HG-66H, CM200HG-130H		 Casing - HV10
CM1200DB-34N, CM1200DC-34N
Casing - HV11
CM600HG-90H, CM400HG-130H
