Fabricant: PREMIUM

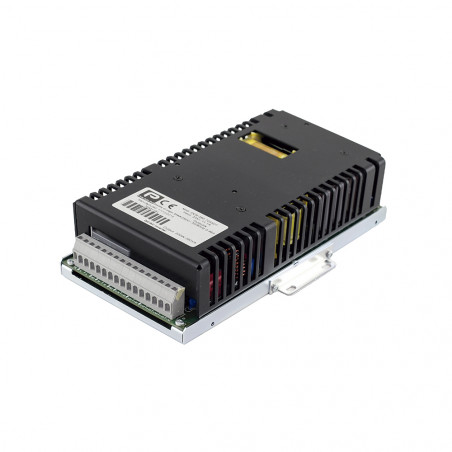

Inverseurs DC / AC Industriels et ferroviaires 260VA

The OCS-260 series is composed of sinusoidal inverters of up to 260VA apparent power and are presented in a very compact format. We have the rail version (EN50155) and offer multiple mounting options.

KEY FEATURES

  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • Output failure alarm
  • Remote inhibit
  • Optional railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 90%
PRODUCT WARRANTY
  • 3 years for Industrial version
  • 5 years for Railway version
ACCESSORIES
  • 19″ rack front panel (3U 10TE)
  • Mounting base
  • DIN rail mounting Kit
TERMINAL OPTIONS
  • Spring clamp terminal
  • DIN 41612 H15
ModelInput
[V]		Input range
[V]		Output
[V]		Active Power
[W]		Apparent power
[W]		Output peak current
(10ms)		EfficiencyNo load input current

7031

 12Vdc 9.5... 15V 230Vac 180W 260VA 4Apk 86% < 0.50A

7033

 24Vdc 16.8... 30V 230Vac 200W 260VA 4Apk 87% < 0.26A

7034

 36Vdc 25.2 ... 45V 230Vac 220W 260VA 4Apk 88% < 0.21A

7035

 48Vdc 33.6 ... 60V 230Vac 220W 260VA 4Apk 89% < 0.15A

7036

 72Vdc 50.4 ... 90V 230Vac 220W 260VA 4Apk 89% < 0.11A

7037

 110Vdc 77 ... 138V 230Vac 220W 260VA 4Apk 90% < 0.08A

7041

 12Vdc 9.5 ... 15V 120Vac 180W 260VA 8Apk 85% < 0.50A

7043

 24Vdc 16.8 ... 30V 120Vac 200W 260VA 8Apk 87% < 0.26A

7044

 36Vdc 25.2 ... 45V 120Vac 220W 260VA 8Apk 88% < 0.21A

7045

 48Vdc 33.6 ... 60V 120Vac 220W 260VA 8Apk 88% < 0.15A

7046

 72Vdc 50.4 ... 90V 120Vac 220W 260VA 8Apk 88% < 0.11A

7047

 110Vdc 77 ... 138V 120Vac 220W 260VA 8Apk 89% < 0.08A
