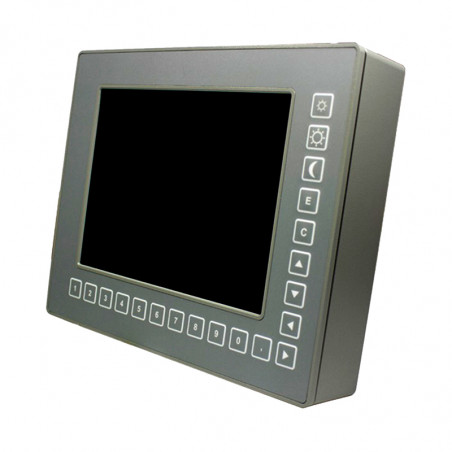

Computer DC13 Industrial Panel pour applications industrielles de Hommes 8.4 ''
  • Computer DC13 Industrial Panel pour applications industrielles de Hommes 8.4 ''

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: MEN Mikro Elektronik

Computer DC13 Industrial Panel pour applications industrielles de Hommes 8.4 ''

The DC13 is a rugged, fanless and maintenance-free human-machine interface (HMI) especially designed for interactive railway applications with a power consumption of less than 13 W. It com-plies with the EN 50155 class Tx railway standard, fulfills IP65 and comes with 20 backlit front keys with tactile feedback. For wireless functions a PCI Express ® Mini Card slot with an external antenna can be made available. Other screen sizes (7“ to 15“) or other aspect ratios as well as other types of the Intel ® Atom™ processor or a larger memory can be realized easily.

  • 8.4“ 4:3 TFT LCD panel, 800 x 600 pixels resolution
  • Intel ® Atom™ E600 series
  • 1 USB 2.0 Type A, 1 Fast Ethernet on M12
  • Power supply via PoE Class 0 (48 VDC nom)
  • -30 to +85°C operating temperature

Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

The DC13 is a rugged, fanless and maintenance-free human-machine interface (HMI) especially designed for interactive railway applications with a power consumption of less than 13 W. It com-plies with the EN 50155 class Tx railway standard, fulfills IP65 and comes with 20 backlit front keys with tactile feedback. For wireless functions a PCI Express ® Mini Card slot with an external antenna can be made available. Other screen sizes (7“ to 15“) or other aspect ratios as well as other types of the Intel ® Atom™ processor or a larger memory can be realized easily.

  • 8.4“ 4:3 TFT LCD panel, 800 x 600 pixels resolution
  • Intel ® Atom™ E600 series
  • 1 USB 2.0 Type A, 1 Fast Ethernet on M12
  • Power supply via PoE Class 0 (48 VDC nom)
  • -30 to +85°C operating temperature
