Fabricant: HMi Elements

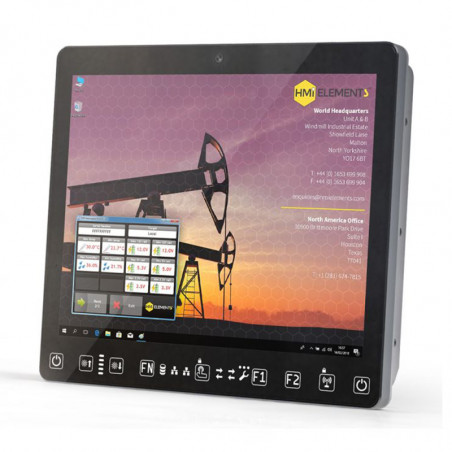

Interface pour la zone 1 - HMI 1301-Z1

Show-stopping design meets rugged toughness, in this revolutionary 19” machine built to survive the challenges of any Zone 1 environment.
Crafted from a single piece of aluminum, the 1301 is lighter and slimmer than other Zone 1 HMI’s, IP66 and fi eld maintainable too.

Characteristics

  • Light [&] slim (weighing in at just 21.5Kg / 47.3Ibs; 150 mm / 5" thin)
  • Certification (certified to ATEX, IECEx, AEx (NEC505) Section 18 CSA 22,2)
  • Crisp [&] bright display (1000 nit)
  • Super fast processor (the intel core i7 processor works 100% from -40°C to +60°C - no throttling back here)
  • Precision engineered (machined from a single piece of aluminium, this is precision engineering at its finest)



Typical EX code II2 GD Ex eb db q op is [ib] IIC T4 Gb
Ex tb IIIC T135°C Db
Class 1, Zone 1, AEx
eb db q op is [ib] IIC T4 Gb
Zone 21 Ex tb IIIC T135°C Db IP66
Power requirements Choice of universal operating voltages: PSU built in AC or DC
Working temperature -40°C ÷ +60°C
Storage temperature -40°C ÷ +85°C
Humidity 10 to 90 % non-condensing, operating
0 to 100 % non-operating
Weight 21,5kg / 47,3 lbs (excluding connectors, cables and accessories)
Size 430(W) x 410(H) x 150(D) mm / 16,9” x 16,1” x 5,9”
Material Enclosure is aluminium alloy 7075 hard anodised natural finish
External fixings and accessories SS316 or similar
Ingress protection IP66 NEMA4X
Interfaces Ethernet, USB, PS/2, communications
Processor / memory Intel iCore 6th/7th generation
Memory options DDR4 – 8, 16 or 32 Gbytes
DDR4 RAM
Display 19” SXGA,1280x1024, wide viewing angle, 24 bit colour
Sunlight readable high brightness panel, IR filtering and anti-glare coating
Touchscreen Projected Capacitive
Diagnostics LED diagnostic indicators
Options Wi-Fi connectivity IS
Bluetooth connectivity
Fibre optic connectivity (op IS)
Remote interrogation of on-board diagnostics
Built in camera


Design and specifi cations subject to change without notice.

Errors and omission excepted.
