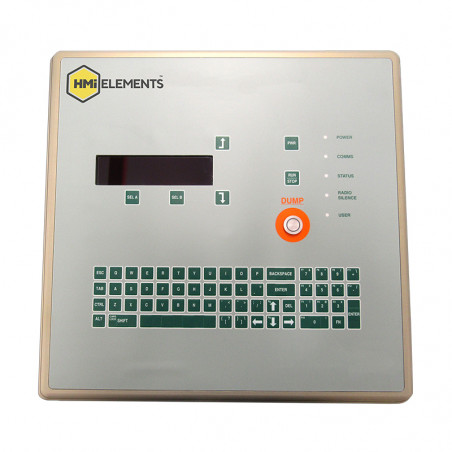

Portable DAQ HMI 1801-Z1
  • Portable DAQ HMI 1801-Z1
  • Portable DAQ HMI 1801-Z1

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: HMi Elements

DAQ portable HMI 1801-Z1

Zone 1 certifi ed portable DAQ system, designed specifi cally for use in the oilfi eld. Customizable digital I/O, analog I/O, barriers, and fi rmware to meet end users’ unique requirements.

Characteristics

  • Environment ready (-40°C ÷ +60°C operating temperature)
  • Certification (EX II (2) GD; Ex e db ib [ib] IIC T4 Gb; Class1 Zone1; AEx e db ib [ib] IIC T4 Gb)
  • Customizable I/O (customizable analogue and digital I/O)
  • Intelligent PSU (provides monitoring and event logging of power source; with indicator on the front panel)
  • Interface designu (user defi ned front panel layout)



Typical EX code Ex e db ib [ib] IIC T4 Gb
Class1 Zone1 AEx e db ib [ib] IIC T4 Gb
Power requirements 100 ÷ 240 V AC
47-63 Hz
Operating temperature -40°C ÷ +60°C
Storage temperature -40°C ÷ +85°C
Humidity Operating 10 - 90 %
Non-operating 10 - 100 %
Weight 15kg (33 lbs)
Size 430(W) x 417(H) x 165(D) mm / 16,93” x 16,3” x 6,5”
Material Aircraft grade aluminium
Ingress protection IP66 NEMA4X
Interfaces 3x Ex d Wireless antenna
2x Ex d Power
2x Ex d Control/Signal
8x IS Barriered I/O
Channels barriered digital Confi gurable channels including; Namur switches, Quadrature encoder, 24VDC switched outputs
Channels barriered analogue Confi gurable channels including; 4-20mA, low level inputs, bidirectional mA drive outputs, bridged analogue inputs
Processor / memory AMD G series 1GHz, 4Gb RAM, 128Gb SSD storage
Display OLED Matrix display 256 x 64 pixels
Communications 1x Wireless 802.11 abgn
1x 10/100 and GbE IEEE 802.3 Copper LAN
1x Zigbee custom control interface
Diagnostics Extensive continuous status monitoring with logging
Options Open architecture for future customization


Design and specifi cations subject to change without notice.

Errors and omission excepted.
