Fabricant: HMi Elements

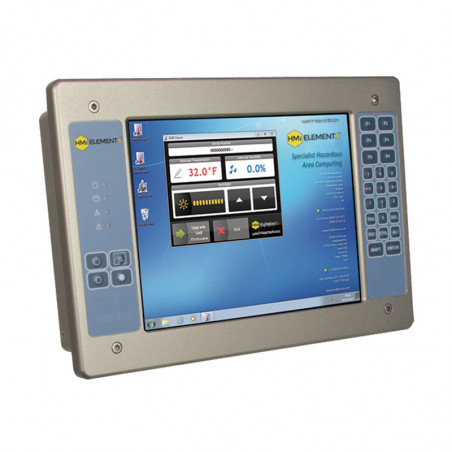

DAQ portable HMI 470-Z1

A precision-machined aluminum enclosure provides durability and low weight. Multi-touch and glove friendly touchscreen, field-tested and proven to perform in the harshest environments.

Characteristics

  • Fully Certifi ed (ATEX, IECEx, AEx (NEC505) Section 18 CSA 22,2 EAC)
  • Lightweight (weight: 15kg / 33 lbs)
  • Crisp [&] Bright Display (Sunlight readable PCT display)
  • Versatile Mounting options (Choice of mounting [&] connector options Yoke, VESA and Panel mounting. Rear or bottom mounted connectors.)



Product type PC Workstation / Driller's Display Unit (DDU)
Model No 470-Z1
Typical EX code II (2) GD Ex e mb ib [ib] IIC T4 Gb (Gb)
Ex tb IIIB T135°C Dc IP66
Class I, Zone 1, AEx e mb ib [ib] IIC T4 Gb (Gb)
Zone 21 Ex tb IIIB T135°C Db IP66
Display size 12.1" LCD panel with LED backlight display
Display type Projected Capacitive Technology (PCT) - Multi Touch, Glove Friendly
Resolution 1024 x 768
Processor Quad Core N Series 1.83GHz
Operating system Windows 10 Enterprise LTSB, Windows 7 Professional
Storage 64GB - 128GB mSATA SSD
Memory 4GB DDR3 SDRAM
Ethernet options (optional) Copper Ethernet port 10/100/1000 Mbits/s Base-T
(optional) Fibre Optic port via Omnitron media converter
Wi-Fi / Bluetooth 2.4 GHz Wi-Fi (802.11 b/g/n)
Bluetooth V2
Keyboard / mouse (optional) Intrinsically Safe PS/2 Interface
USB Internal USB port for Safe area
(optional) External USB type 2.0 port via ROTA DR4 connector
Ingress protection IP66 / NEMA4X
Operating temperature -40°C to +60°C (-40°F to +140°F)
Storage temperature -40°C to +80°C (-40°F to +176°F)
Humidity 10 to 90 % non-condensing, operating
0 to 100 % non-operating
Weight < 33Ibs / 15kg
Dimensions W 385 x H 260 x D 116mm; 15.2 x 10.2 x 4.6 inches
Shock [&] vibration Shock: In accordance with BS EN60068-2-27:2009
Vibration: In accordance with BS EN60068-2-6:2008


Design and specifi cations subject to change without notice.

Errors and omission excepted.
