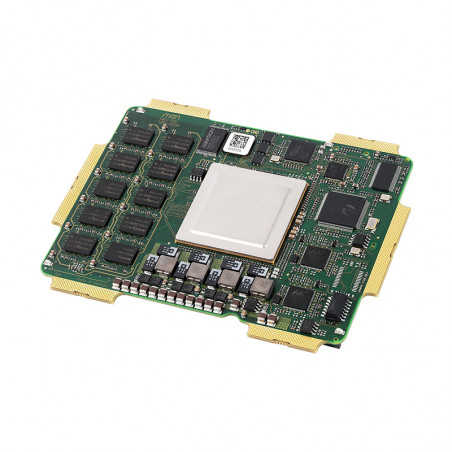

CB70C - Rugged COM Express® z Intel® Core™ i7

• Intel®Core™i7, 3rd generation
• Quad-core 64-bit processor
• Up to 16 GB DDR3 DRAM, ECC, soldered
• Board Management Control
• Active Management Technology
• Open CL 1.1 support
• Adaptable BIOS
• 9 V to 16 V extended input range
• -40°C to +85°C Tcase screened, depending on processor
• Conduction cooling
• VITA 59 in process, compliant with COM Express®Basic, type 6

Controlled by a third generation Intel® Core™i7 processor running at up to 3.1 GHz maximum turbo frequency, the CB70C comes with a scalable performance with 1 up to 4 cores, integrated graphics, as well as support of Intel ® AMT or Open CL 1.1. The interfaces include a combination of PCI Express® links, LVDS, DDI, VGA, high-definition audio, SATA, Ethernet and USB

CC10C - Rugged COM Express® z ARM® i.MX 6

• Freescale™ARM®i.MX 6 Series
• Quad-core 64-bit processor
• Comprehensive usage of i.MX 6 I/O
• Configurable FPGA I/O with more than 140 pins
• Maximum flexibility in interface configuration
• Up to 4 GB DDR3 SDRAM
• eMMC multimedia card
• U-Boot Universal Boot Loader
• -40°C to +85°C Tcase guaranteed with qualified components
• Conduction cooling
• VITA 59 in process, compliant with COM Express®Compact, type 6

ESMexpress®

XM51 – ESMexpress® COM z PowerPC® QorIQ™ P4080

• Freescale™QorIQ™P4080, P4040 or P3041
• 64-bit Power Architecture e500mc CPU
• Up to 8 cores, up to 1.5 GHz
• Up to 16 GB ECC DDR3 SDRAM, 1 or 2 controllers
• -40°C to +85°C Tcase with qualified components

XM50 – ESMexpress® COM z PowerPC® MPC8548

• MPC8548 (or MPC8543), up to 1.5 GHz
• Up to 2 GB (ECC) DDR2 SDRAM
• 3 (or 2) Gb Ethernet ports
• Gb Ethernet, USB, SATA, PCI Express®x8
• -40°C to +85°C Tcase screened

XM1L – ESMexpress® COM z Intel® Atom™ XL

• Intel®Atom™Z510P, Z530P, Z510PT, Z520PT
• Up to 2 GB DDR2 SDRAM
• Up to 2 PCI Express®
• Up to 1 Gb Ethernet
• 1 SATA port, 8 USB 2.0
• SDVO, LVDS, Intel®HD Audio
• -40°C to +85°C Tcase screened or qualified

XM2 – ESMexpress® COM z Intel® Core™ 2 Duo

• MPC5121e or MPC5123, up to 400 MHz
• Up to 512 MB DDR2 SDRAM
• 1 Fast Ethernet interface
• 6 USB 2.0 (1 client), 2 UARTs, up to 4 CAN bus
• 6 programmable serial controllers, or display interface
• AC´97 audio
• -40°C to +85°C screened

ESMini™

MM50 – ESMini™ COM z PowerPC® MPC5121e/MPC5123

• MPC5121e lub MPC5123, do 400 MHz
• Do 512 MB DDR2 SDRAM
• 1 Fast Ethernet interface
• 6 USB 2.0 (1 client), 2 UARTs, do 4 CAN bus
• 6 programowalne sterowniki szeregowe, lub interfejs wyświetlacza
• AC´97 audio
• Temperatura pracy -40°C to +85°C

MM2 – ESMini™ COM z Intel® Atom™ E600 Series

• Intel®Atom™E600 series, up to 1.6 GHz
• Up to 2 GB DDR2 SDRAM
• 2 PCI Express®
• 2 Gb Ethernet interfaces
• 6 USB 2.0 hosts and 1 USB 2.0 client
• 4 UARTs, 1 CAN bus, 2 SATA ports
• -40°C to +85°C Tcase (screened or with qualified components)

MM1 – ESMini™ COM z Intel® Atom™

• Intel®Atom™Z530 or Z510, up to 1.6 GHz
• Up to 1 GB DDR2 SDRAM
• 1 PCI Express®
• Up to 2 Fast Ethernet interfaces
• 8 USB 2.0 (1 client)
• 2 UARTs, up to 2 CAN bus interfaces
• SDVO, LVDS, Intel® HD Audio
• -40°C to +85°C Tcase screened
• (-25°C to +85°C Tcase with 1 GB DRAM)
