Fabricant: Icel

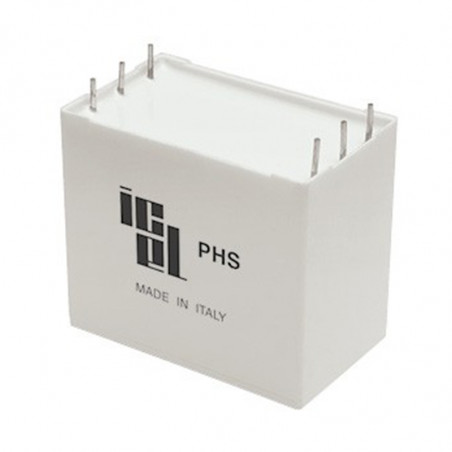

PHS - condensateurs en polypropylène

Main applications

  • Switching-Snubber
  • Energy conversion and control in power semiconductor circuits,
  • resonant circuits, industrial and motor speed controls, SMPS, induction heaters
  • High voltage, high current and medium-high pulse applications

Execution and reference standard

  • Extended metallized film with internal series connection
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS


PHS Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
550 Vdc (340 Vac) 0.22 ÷ 18.5 72 ÷ 205 4.5 ÷ 37 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
700 Vdc (420 Vac) 0.15 ÷ 12.5 100 ÷ 250 4.5 ÷ 36.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
850 Vdc (500 Vac) 0.1 ÷ 8.2 110 ÷ 375 4 ÷ 36 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1000 Vdc (575 Vac) 0.068 ÷ 6.3 135 ÷ 425 3.5 ÷ 35 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1200 Vdc (630 Vac) 0.047 ÷ 4.7 150 ÷ 485 3 ÷ 34.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1500 Vdc (650 Vac) 0.033 ÷ 3 175 ÷ 610 2.5 ÷ 33 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
2000 Vdc (700 Vac) 0.015 ÷ 2 225 ÷ 810 2 ÷ 31 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
2500 Vdc (725 Vac) 0.01 ÷ 1.25 280 ÷ 1050 1.5 ÷ 28.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
3000 Vdc (750 Vac) 0.0068 ÷ 0.68 370 ÷ 1500 1.5 ÷ 26.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
