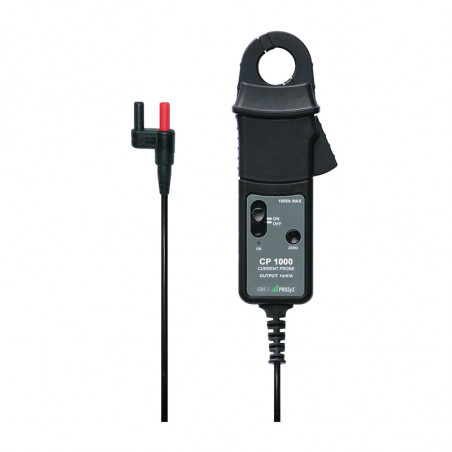

Sondes actuelles AC / CC - Série CP1

  • Two models Multimeter (CP1000) and Oscilloscope (CP1005)
  • Measurement of AC / DC and complex current waveforms
  • 1000A Range (CP1000) 100A / 1000A Ranges (CP1005)
  • Excellent Accuracy with high resolution
  • Wide Bandwidth with low phase shift
  • DC Auto Zero and Auto Power Off
  • Compact lightweight design
  • Output voltages 1mV/A and 10mV/A (CP1005)
  • Superior noise rejection for power electronics applications
Typical applications
  • Light industrial and residential electrical installation testing
  • Battery charging systems
  • Analysis of switching waveforms in inverters, switch mode power supplies and industrial controls
  • Automotive applications eg., Cranking current measurement on car battery lead, current profiling, all
    requiring high accuracy and superior resolution..


Specifications

Non-invasive current measurement
MODEL

CP1000

CP1005
Current Range 1000A DC lub AC RMS 100 / 1000A DC lub AC RMS
Output Sensitivity 1mV/A 10 / 1mV/A
Resolution ± 500mA ±100mA / ±500mA
Basic Accuracy ± 1% reading ± 0.5A ± 1% reading ± 0.1A / ± 0.5A
Conductor position sensitivity < ± 1% relative to centre reading
Frequency Range (-3dB) 10kHz 20kHz
Phase shift (up to 1kHz) N/A < 2 degress
Load Impedance > 100 kΩ
Output connection Safety 4mm plugs Safety BNC / connector 4mm

ENVIRONMENTAL DATA
Operating Temperature
0°C do 50°C
Temp. Coefficient

± 0.15% of reading per°C
Storage Temperature (without battery)
-20°C do 85°C
POWER SUPPLY
Battery type
9v Alkaline: MN1604, PP3 IEC 6LR61 or equivalent
Battery life
50 hours typical
MECHANICAL DATA
Dimensions (mm)
200 (W) x 74 (S) x 25 (G)
Jaw Capacity

32mm Ø
Weight
320g
SAFETY

EN61010-2-032:2002,
300V, Measurement Category III, Pollution Degree 2.

MAXIMUM SAFE VOLTAGES
300V AC RMS or DC between uninsulated conductor and ground
EMC Standard EN 61326-2-2:2006
All accuracies stated at 23°C ± 1°C (73.4°F ± 1.8°F)

High Accuracy with Superior External Field Rejection
Advanced magnetic circuit design results in probes accuracy to be little affected by external magneticfields
or off-centre conductor positioning.

EN61010-2-032:2002 and EMC Conformance
Safety features including a tactile barrier and special jaw design provide the user with confidence when making measurements in hazardous voltage areas.
Conformance to EMC standards ensures high reliability through reduced susceptibility to electromagnetic interference.

Catalog number
Output type

CP1000
BNC

CP1005
BNC

CP1005_4mm
4mm
