Fabricant: ELEQ

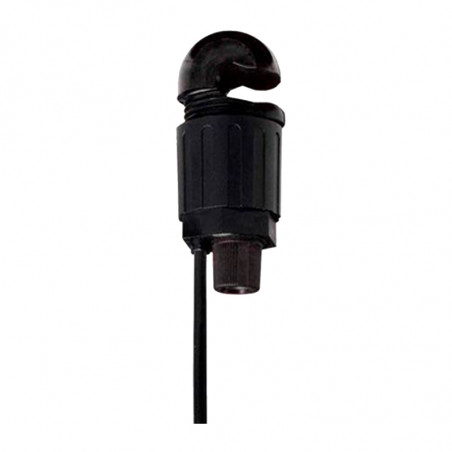

Pinces pour la mesure de la tension sur les fils

In existing installations there is rarely a fused terminal available for measurement purposes. This unique tapping clamp allows you to tap a fused voltage from an insulated wire for measurement using one hand and without the need for additional tools. The fuse is mounted directly on the primary conductor, which results in an optimum degree of safety. This unique product is a breakthrough for fast and safe measurement in existing installations.

Properties:
• One-handed and safe tapping of voltage for measurement purposes
• No tools needed
• Safe mounting
• Including 5x25 mm fuse, 2A
• For insulated conductors 2,5 up to 6 and 10 up to 16 mm2
• Breaking capacity 6kA@400V/50Hz


Description Color Diameter of measured cable Model
Fused phase terminal for solid and stranded cable Black 2,5-6mm2

UAD6-R
Neutral terminal unfused for solid and stranded cable Blue 2,5-6mm2

UAD6N-R
Fused phase terminal for flexible cable Black 2,5-6mm2

UAD6-F
Neutral terminal unfused for flexible cable Blue 2,5-6mm2

UAD6N-F
Fused phase terminal for cable Black 10-16mm2

UAD16
Terminal set (3 x 500070 + 1 x 500071) for cable Blue 10-16mm2

UAD16N
Phase terminal Black 150mm2

UAD150S
