Fabricant: GMC-I PROSyS

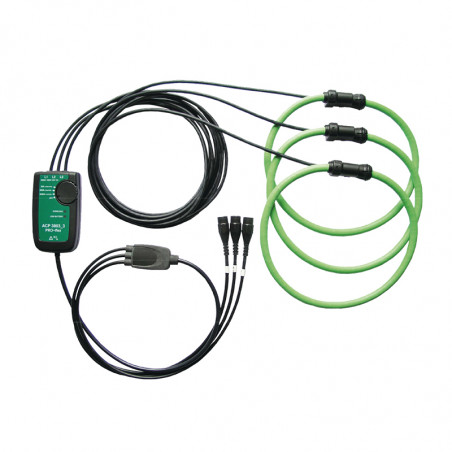

Pro-Flex 3 phases

3-phase Rogowski coils PRO ~ flex to measure AC currents series ACP

Characteristic

  • 30/300/3000A and 60/600/6000A models
  • Wide dynamic range 100mA to 6000A ACRMS
  • Battery powered with external power option
  • 1000 hours continuous battery life
  • 1000V, CAT III, Pollution degree 2
  • IP 65 (Probe head only)
  • Compact lightweight design
  • No magnetic hysteresis, saturation or non linearity
  • Single and three phase models
  • UL Approved, ROHS and WEEE Compliant

TYPICAL APPLICATIONS

  • Connection to most measuring instruments includingmultimeters, oscilloscopes PQ recording devices
  • Electrical maintenance, repair and machine installation and start up applications
  • Low and medium voltage distribution installations
  • Analysis of current distribution in mains networks
  • Analysis of harmonics, power measurements, measurement of peak loads in mains and in UPS.
  • High current testing of switchgear and fuses
  • Measurement of starting transients of electric motors

SPECIFICATIONS


MODEL ACP 3003_3 ACP 6003_3
Current Ranges 30 / 300 / 3000A 60 / 600 / 6000A
Output Sensitivity 100mV / 10mV / 1mV / A 50mV / 5mV / 0.5mV / A
Linearity ± 0.2% of reading
Basic Accuracy ± 1% of reading ± 0.1A (30A, 60A)
± 1% of reading ± 1A (300A/3000A, 600A/6000A)
Conductor position sensitivity ± 2% of reading
Frequency Range (-1dB) 10Hz do 20kHz
Phase shift (45 – 65Hz) < 1 degrees
Load Impedance > 100 kΩ
Output connection 3 x 0.5m coax terminated with safety male BNC connector

Technical data

ENVIRONMENTAL DATA

Operating Temperature -20°C to 65°C
Temperature Coefficient ± 0.15% of reading per °C
Storage Temperature (without battery) -40°C do 75°C

POWER SUPPLY

Battery type 2 x AA MN 1500 LR6 Alkaline
Battery life 1000 hours continuous

External Power Supply 3V / 100mA

MECHANICAL DATA

Dimensions (mm) 110 (W) x 65 (S) x 23 (G)
Probe Lengths 610mm (24”), 915mm (36”) 1220mm(48”)
Cable length 2m (Probe to Integrator)



SAFETY

EN61010-2-032:2002,
UL 610101, 2nd Edition, 2005-07-22
CAN/CSA-22.2 No. 61010-1, 2 nd Edition 2004-07
1000V, Measurement Category III, Pollution Degree 2.

EMC Standard EN 61326-2-2:2006

MAXIMUM SAFE VOLTAGES
1000V AC RMS or DC (Probe and Integrator)
POWER SUPPLY 30 Volts max (Output)
All accuracies stated at 23°C ± 1°C



High Accuracy and Wide Dynamic Range

Advanced coupling design results in minimal effect of external magnetic fields and off-centre conductor positioning on probe accuracy.

EN61010-2-032:2002 and EMC Conformance

Safety features provide the user with confidence when making measurements in hazardous voltage areas.
Conformance to EMC standards ensures high reliability through reduced susceptibility to electromagnetic interference.



Dimensions [mm]


3-fazowe Cewki Rogowskiego PRO~flex

DEGREE OF PROTECTION
IP65 PROBE IP40 Integrator

Catalog number The loop diameter of the probe (S) [mm] Output type

ACP 3003_3/24

 610 BNC

ACP 3003_3/36

 915 BNC

ACP 3003_3/48

 1220 BNC

ACP 6003_3/24

 610 BNC

ACP 6003_3/36

 915 BNC

ACP 6003_3/48

 1220 BNC
