Profiplast PBS-R - fil submersible -40 ° C à + 70 ° C
  • Profiplast PBS-R - fil submersible -40 ° C à + 70 ° C
  • Profiplast PBS-R - fil submersible -40 ° C à + 70 ° C

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: OMERIN

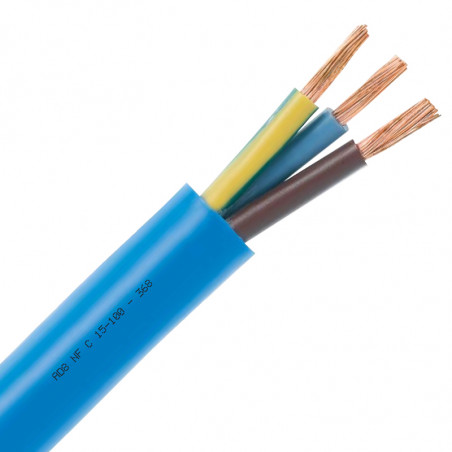

Profiplast PBS-R - fil submersible -40 ° C à + 70 ° C

Characteristics
  • Rated voltage:

fixed installation: 0.6/1 kV
flexible installation: 450/750 V

  • Operating temperature:

outdoor fixed installation: -40°C to +70°C
outdoor flexible installation: -25°C to +70°C
underwater fixed installation: +50°C

  • Test voltage: 2500 V
  • Permanent immersion AD8 according to NF C 15-100
  • Depth of immersion: 250 m - 25 bars
  • Resistance per unit length at 20°C according to IEC 60228

Marking

  • PROFIPLAST PBS-R section mm2 - ACS ALIMENTAIRE - IMMERSION PERMANENTE NF C 15-100 AD8

Packaging

  • Coils. Reels. Drums.

Certifications - Standards

  • NF C 15-100, IEC 60228, NF C 32-070, IEC 60332-1
  • Certification AD8 by Bureau Veritas according to NF C 32-102-16 A-B
  • Contact with food: ACS 17 MAT NY 042
  • France: Official journal no. 1227/2002 and amendments
  • Germany: Federal Law gazette, Part I, Annex 3 (1992)
  • Belgium: Royal Belgian decrees: Belgian Gazette (MB) of 24.07.1992 and updates
  • Spain: Royal decree 2207/94 of 16 November 1994 and updates
  • Italy: Italian ministerial decree of 21 March 1973 (GU No. 104 of 20 April 1973) and updates
  • The United Kingdom: British regulations “Statutory instruments” No.1376 (1998) and updates
  • CE: Directive 2002/72/CE

Applications

  • Ideal for the power supply of submersible pumps in direct contact with fresh water, PROFIPLAST® PBS-R is certified by Bureau Veritas AD8 (immersion and submersion) in accordance with standard NF C 15-100. This cable is certified ACS (Certificate of Sanitary Conformity) by the Institut Pasteur in Lille which guaranties its use in “water and environment”.

Options

  • Flexible tin plated copper core: contact us
  • Other cross-sections: contact us
 PROFIPLAST PBS-R i PBS8-F - kable do pomp głębinowych -40°C do +70°C

1- Flexible bare copper core class 5 - IEC 60228
2- Insulation: isovinyl
Plain or two-tone colours or numbering
3- Sheath: Atoxic PROFIPRENE
Standard colour: blue RAL 5012

Nominal cross-section (mm2) Nominal composition Diameter of insulated conductors
[mm]		 Nominal external diameter
[mm]		 Approximate linear weight
[kg/km]
1 x 0.75 24 x 0.190 2.3 5.5 40
1 x 1,5 28 x 0,245 3.0 6,2 50
1 x 2,5 47 x 0,245 3.6 6,8 64
1 x 4 56 x 0,290 4.3 7,7 85
1 x 6 80 x 0,290 4.8 8,5 110
1 x 10 84 x 0,38 6.2 9,5 165
1 x 16 132 x 0,38 7.4 11,5 240
1 x 25 175 x 0,40 9.5 13,5 340
1 x 35 238 x 0,40 10.6 15 480
1 x 50 377 x 0,40 12.9 17,5 675
1 x 70 340 x 0,50 14.8 20 900
1 x 95 444 x 0,50 16.6 22,5 1200
1 x 120 568 x 0,50 18.4 24 1400
3 x 1,5 28 x 0,245 3.0 10,0 135
3 x 2,5 47 x 0,245 3.6 11,8 175
3 x 4 56 x 0,29 4.3 13,4 250
3 x 6 80 x 0,29 4.8 15,0 352
3 x 10 84 x 0,38 6.2 16,0 475
3 x 16 132 x 0.380 1,21 20,0 685
3 x 25 175 x 0,40 9.5 27,0 1050
3 x 35 238 x 0,40 10.6 30,0 1305
3 x 50 377 x 0,40 12.9 34,0 1820
4 x 1,5 28 x 0,245 3.0 11,0 163
4 x 2,5 47 x 0,245 3.6 12,9 245
4 x 4 56 x 0,29 4.3 14,7 340
4 x 6 80 x 0,29 4.8 16,9 455
4 x 10 84 x 0,38 6.2 20,0 680
4 x 16 132 x 0,38 7.4 23,0 950
4 x 25 175 x 0,40 9.5 29,0 1450
4 x 35 238 x 0,40 10.6 33,0 1850
4 x 50 377 x 0,40 12.9 38,0 2650
4 x 70 340 x 0.50 14.8 43,0 4250
5 x 1 32 x 0,19 2.5 11,1 140
5 x 1,5 28 x 0,245 3.0 12,3 200
5 x 2,5 47 x 0,245 3.6 14,2 265
5 x 4 56 x 0,29 4.3 16,6 395
5 x 6 80 x 0,29 4.8 18,7 590
