Phare de la technologie LED
  • Phare de la technologie LED

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: KSE Lights

Phare de la technologie LED

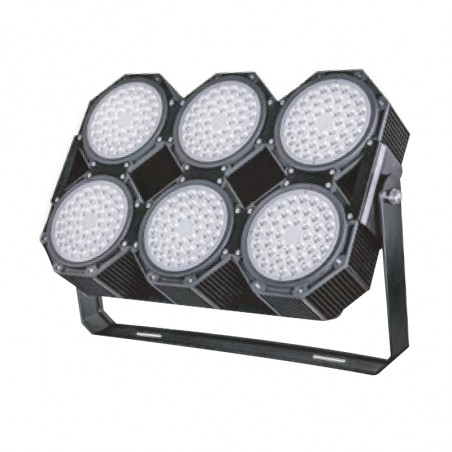

LED projector light

Powerful, maintenance-low and cost-optimized

Application
The FL-series especially is suitable for illuminating large out-door areas and can replace conventional lamps up to 2000 W by the different performance classes.

Light distribution
The light distribution of the FL-series is generated by special optics. Because of this optic, a traditional reflector is not needed anymore. By using these optics the lumen loss gets reduced and the whole lamp efficiency gets better. We can offer optics with different light distributions whereby nearly every industrial scenario can be illuminated.

Light source
To get a reliable and efficient light source we have chosen a diode from the well-known company Lumileds (formerly Philips).
The for years used diode has even at high temperatures a small loss of luminous flux und extremely good photometric charac-teristics, for example a high color rendering index

Reflektor w technologii LED - źródło światła Reflektor w technologii LED - regulowany wspornik Reflektor w technologii LED - źródło światła
Unique embossing lens and reflector design, better performance for industrial lighting.

360° adjustable bracket, can be adjusted to any projection angle.

Use waterproof connector to fix the input cables, en-sure product safety



Reflektor w technologii LED - kąt Beam Angle: 30 °   Beam Angle: 45 ° Beam Angle: 60 °
Reflektor w technologii LED - kąt świecenie 30 stopni Reflektor w technologii LED - kąt świecenie 45 stopni Reflektor w technologii LED - kąt świecenie 60 stopni

Application

  1. Sport ground
  2. Industrial areas
  3. Object illumination
  4. Harbour
  5. Public places


Specifications
Name LED projector light
Light source KSE - COMP-LED-ENGINE
Power 280 W to 840 W
Lumen output 31.360 lm to  94.080 lm
CCT 5.000 K  others optional
CRI >70
Lifespan at 25°C (L70 B50) 60.000 h
Failure rate 0,12 %  na 5000 h
Temperatura  pracy -40°C do+50°C
Driver integrated
Voltage AC 100 V bis / to 240 V / 277 V, 50/60 Hz
Dimming function optional
Housing material Aluminium
Housing colour black
Optics 30°, 45, 60°
Optical cover polycarbonate
Warranty 5 years

Order information and drawings

Product number Lumens [lm] Power [ W] Weight [kg]

FL- 11280-xx*-5000K**

31.360 280 14

FL- 11560-xx*-5000K**

62.720 560 26

FL- 11840-xx*-5000K**

94.080 840 39,5


280W Reflektor w technologii LED - wymiary 280W
560W Reflektor w technologii LED - wymiary 560W
840W Reflektor w technologii LED - wymiary 840W
