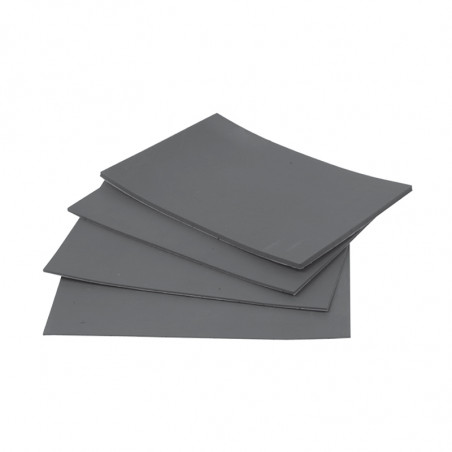

The material can be used inside of microwave housings to reduce internal resonance and to lower the "Q" of the microwave cavity. They are also effective in isolating antennas from ground plane reflections. Q-Zorb® can be used with board-level shielding and other types of EMI shielding to enhance the shielding effectiveness at frequencies from 2-40 GHz.
P/N | Size | Thickness | Weight | Temperature maximum |
Electrical performace |
Color | Bonding | Fire retardant rating | |
---|---|---|---|---|---|---|---|---|---|
2388 | 24"x24" | 0.20" nominal (.5 mm) |
.50 lb/sq ft | 300 °F | 12-18 GHz | Gray | RoHS Compliant Sulfur-free |
Supplied with 3M 9485 PSA |
UL V0 |
2388 -.25 | 12" x12" | ||||||||
2388 - S | 4" x 6" | ||||||||
2238 | 24"x24" | .040" nominal (1 mm) |
.94 lb/sq ft | 300 °F | 8-18 GHz | Gray | Good general weather and chemical resistance Sulfur-free |
Supplied with 3M 9485 PSA |
UL V0 |
2238 -.25 | 12" x12" | ||||||||
2238 - S | 4" x 6" | ||||||||
2240 | 24"x24" | 0.60" nominal (1.5 mm) |
1.2 lb/sq ft | 300 °F | 4-18 GHz Excellent for surface current attenuation |
Gray | Good general weather and chemical resistance Sulfur-free |
Supplied with 3M 9485 PSA | UL V0 |
2240 -.25 | 12" x12" | ||||||||
2240 - S | 4" x 6" | ||||||||
2242 | 24"x24" | .125" nominal (3.2 mm) |
2.75 lb/ sq ft | 300 °F | 1-18 GHz Excellent for surface current attenuation |
Gray | Good general weather and chemical resistance Sulfur-free |
Supplied with 3M 9485 PSA | UL V0 |
2242 -.25 | 12" x12" | ||||||||
2242 - S | 4" x 6" |
Typical attenuation values
![]() |
![]() |
![]() |
![]() |
