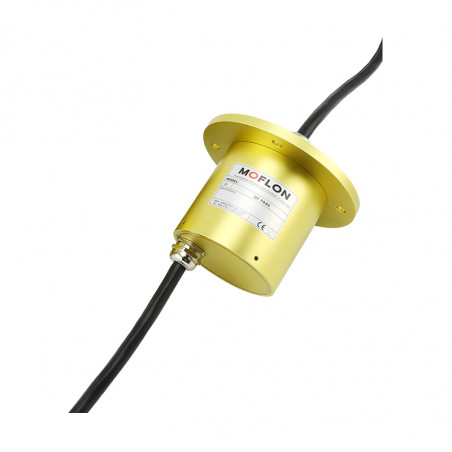

Connecteur pivotant avec le collier sur le côté stator, série MG
  • Connecteur pivotant avec le collier sur le côté stator, série MG

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Moflon

Connecteur pivotant avec le collier sur le côté stator, série MG

MG Series

  • MG Series slip rings ,solid shaft ,which are designed for end shaft/flange installation, also called big capsule slip ring because it has a stator flange like caps.
  • With solid style, no through bore, can support much more circuits at the same OD.
  • This solid stator flange slip ring is suitable for end face mounting by stator flange.
Part# OD(mm) Circuits(ring) Pcurrent(A)

Voltage(VDC/VAC)

MG056 56 1~48 10A or Signal 440
MG056F 56 1~48 10A or Signal 440
MG086 86 1~72 10A or Signal 440
MG086F 86 1~72 10A or Signal 440
MG119 119 1~119 10A or Signal 440
MG119F 119 1~119 10A or Signal 440
