Connecteurs pivotants avec le passage KYH

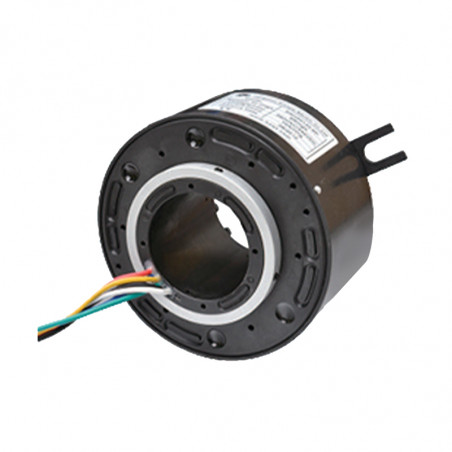

KYH Rotary Joints with Through Hole

Slip rings can be used in electromechanical devices where it is required to transfer electrical signals to rotating parts of these devices. The signals transferred through the slip rings are continuously transmitted through them, allowing any number of rotations in any direction. Slip rings are also known by many other names: electrical rotary connectors, rotary unions, commutator connectors, brush connectors. Popular English names include: slip rings, rotary electrical interface, commutator, collector, swivel, electrical rotary joint. Slip rings with through holes are available in four versions – with hole sizes: 12.7mm, 25.4mm, 38.1mm, 50.0mm, 60.0mm, 70.0mm, 80.0mm, 90.0mm. On request, they can have over 100 contacts. The use of slip rings with a through hole allows easy mounting of the rings on a shaft and/or passing other electrical, hydraulic, or pneumatic wires through their center. Slip rings have a long lifespan, specially designed brushes do not require lubrication or any additional maintenance throughout the entire usage period of the rings. Slip rings are maintenance-free devices.



Technical Data

  • Voltage: 0-380V
  • Current: 5A, 10A, 15A, 20A, higher currents upon special request.
  • IP 51, IP65 upon special request
  • Rotational speed: 300 RPM, higher speeds upon special request.



The connector can additionally transmit signals

  • Profibus
  • Ethernet
  • RF up to 3 GHz
  • RS 232, RS 485

Applications of Slip Rings

  • Industrial machinery
  • Advertising and exhibition machines and equipment
  • Medical equipment
  • Rotary and indexing tables
  • Packaging/rewinding machines
  • Automatic systems, manipulators
  • Wind turbines, generators
  • Surveillance systems
  • Process control systems
  • Robotics
  • Cable and wire winding/unwinding systems



Model Number of contacts Current/Voltage
[A]/380V		 Max. rotational speed
[RPM]		 Dimensions [mm]
D d L a b c e f g
6 contacts 12 contacts 18 contacts 24 contacts
KYH12 6-24 5 300 55.0 12.7 35.0 48.8 62.6 76.4 30.0 6.2 2.0 32.5 12.0 6.0
10 38.0 54.8 71.6 88.4
KYH25 5 86.0 25.4 43.5 62.7 81.9 101.1 50.0 8.7 4.0 58.0 19.5 9.5
10 47.7 71.1 94.5 117.9
15 52.5 80.7 108.9 137.1
KYH38 5 99.0 38.1 44.0 63.8 83.6 103.4 60.0 8.7 4.0 62.4 19.5 9.5
10 48.2 72.2 96.2 120.2
15 53.0 81.8 110.6 139.4
KYH50 5 119.0 50.0 50.0 69.8 89.6 109.4 75.0 8.7 4.0 76.0 19.5 9.5
10 54.2 78.2 102.2 126.2
15 59.0 87.8 116.6 145.4
KYH60 6-48   300 135.0 60.0 6 contacts 12 contacts 18 contacts 24 contacts 85.0 11.0 3.0 74.5 19.0 9.5
5 62.5 77.5 92.5 107.5
10-20 77.5 107.5 137.5 167.5
  30 contacts 36 contacts 42 contacts 48 contacts
5 122.5 137.5 152.5 167.5
10-20 197.5 227.5 257.5 287.5
KYH70   155.0 70.0 6 contacts 12 contacts 18 contacts 24 contacts 89.5 11.5 3.0 83.25 19.0 9.5
5 65.8 80.8 95.8 110.8
10-20 80.8 110.8 140.8 170.8
  30 contacts 36 contacts 42 contacts 48 contacts
5 125.8 140.8 155.8 170.8
10-20 200.8 230.8 260.8 290.8
KYH80   180.0 80.0 6 contacts 12 contacts 18 contacts 24 contacts 109.0 12.0 5.0 100.5 32.0 12.8
5 73.5 88.5 103.5 118.5
10-20 88.5 118.5 148.5 178.5
  30 contacts 36 contacts 42 contacts 48 contacts
5 133.5 148.5 163.5 178.5
10-20 218.5 248.5 278.5 308.5
KYH90   190.0 90.0 6 contacts 12 contacts 18 contacts 24 contacts 119.0 12.0 5.0 109.0 32.0 12.8
5 73.5 88.5 103.5 118.5
10-20 88.5 118.5 148.5 178.5
  30 contacts 36 contacts 42 contacts 48 contacts
5 133.5 148.5 163.5 178.5
10-20 218.5 248.5 278.5 308.5

 KYH50
