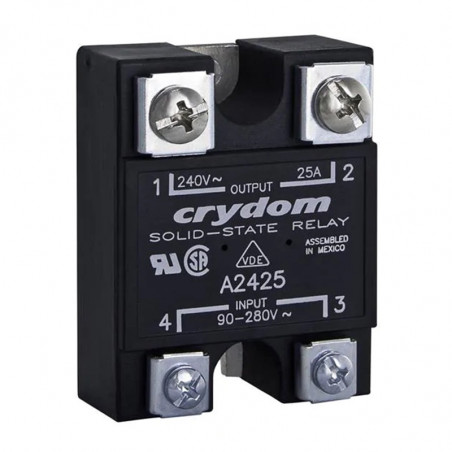

Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters
Technical data
|
|
• Insulation voltage
|
4000 VRMS
|
• Input/output capacity
|
8 pF
|
• Operation temperature range
|
-40°C - 80°C
|
• Operation frequency range
|
47 - 63 Hz
|
• Switching on method
|
at max voltage-
|
recommended for inductive load
|
|
•Build in diode for turning on signalization
|
|
Available options:
|
|
•G- Build in diode for turning on signalization(Uwej=4,5-32 VDC)
|
Symbol | Input data | Output data | Characteristic | ||||
---|---|---|---|---|---|---|---|
Control voltage VDC |
Input current [mA] |
Load current A RMS |
Voltage range VRMS |
Max voltage Vpeak |
I2t [A2s] |
||
PSD2410 | 3 - 32 | 2 | 0,4 - 10 | 90 - 280 | 600 | 60 | 1 |
PSD2425 | 0,4 - 25 | 90 - 280 | 600 | 260 | 2 | ||
PSD2450 | 0,4 - 50 | 90 - 280 | 600 | 1620 | 3 | ||
PSD2490 | 0,4 - 90 | 90 - 280 | 600 | 6000 | 4 |
![]() |
Drawing 1
![]() |
|
Drawing 2
![]() |
Drawing 3
![]() |
Drawing 4
![]() |
//
