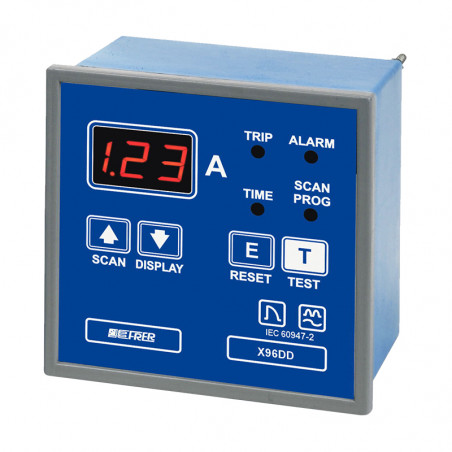

Relais de courant de fuite avec affichage LED X96DD
  • Relais de courant de fuite avec affichage LED X96DD

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: FRER

Relais de courant de fuite avec affichage LED X96DD

Current setting range 0,03...10,0A   (co 0,01A)
current accuracy +/- 5% v.m. / rdg +/- 1 dgt
Delay setting range 0,03...5,00s      (co 0,01sec)
Delay accuracy 5%
Operating frequency 47...63Hz
Third harmonic filter Osłabienie 88% @ 150Hz
Operation characteristic Typ A wg.IEC775
Toroid connection test Ciągła
Trip contact SPDT, 5A 250Vac
Alarm contact SPDT, 5A 250Vac
Operating temperature 0...+50°C, U.R. / R.H. <90% n.c.
Storage temperature -20...+70°C
Insulation 2kV 50Hz, 1 min.
Connections faston 6,3 x 0,8 mm
Thermoplastic material UL 94V0
Protection for housing IP52
Protection for terminals IP20
According to IEC 60947-2

TYPE

X96DD

Characteristics to be specified
Aux. supply voltage Standard Va.c. (±10%, 45÷65Hz, 3VA) 115 - 230 V
On demand
with extraprice		 Va.c. (±10%, 45÷65Hz, 3VA) 115 - 230 V 24V; 48V; 400V
Vd.c. (-15...+20%, 3W) 24V; 48V; 110V; 220V
Va.c./d.c. (5VA/5W) 20÷60V; 80÷260V

DESCRIPTION

The X...DD series earth leakage relays are designedto measure the leakage or unbalance currents caused by conductors or appliances insulation losses and to react, in case the set limits are exceeded, switching off the power supply to thedefective system. Thanks to their distinctive feature (the displaying of the leakage current) it is possible to continuously monitor the insulation state and to program the preventive maintenance in order to avoid unexpected power breaks. Main features:

  • Continuous digital displaying of the instantaneous leakage current from 0,02A to 10.0A.
  • Setting of the operating parameters (current and time) independently for alarm and trip.
  • Continuous check of the good connection with the toroidal transformer performed on the measure winding, with displaying of a warning message in case of negative result and swit-ching of the alarm and/or trip contacts (programmable).
  • Memorizing (even in case of power supply losses) ofthe maximum fault current.
  • Operation (enable or disable) of the “TEST” key programmable.
  • Manual reset or automatic reset in 2 seconds (with disabling of the automatic function after the third trip in less than 9 minutes).
  • Programmable operating mode of the trip contact as impulsive (with pulse width ranging from 100 to 900 msec.) or as steady.

Dimension

Przekaźnik prądu upływu z wyświetlaczem LED X96DD wymiar

Connection diagram

Przekaźnik prądu upływu z wyświetlaczem LED X96DD połaczen
