Tension d'isolation | 4000 VRMS |
---|---|
Capacité entrée/sortie | 8 pF |
Plage de température de fonctionnement | de -40°C à 80°C |
Plage de fréquence de fonctionnement | 47-63 Hz |
Mode de commutation | à zéro de tension |
Options disponibles | 10-commutation immédiate 4 - pour fonctionner à une fréquence de 400 Hz E - tension de commande 18 - 36 VAC (concernant uniquement les relais HA) |
Exemple de désignation | 4 HA4890 - B |

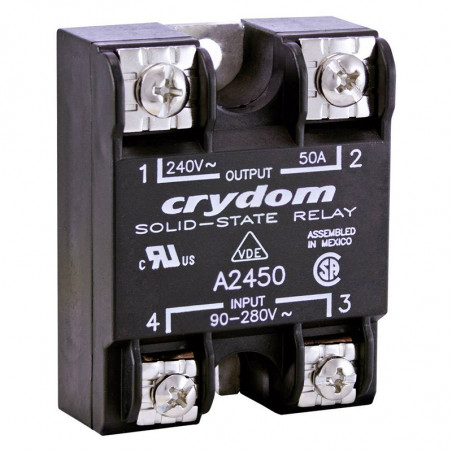

HD4890-10 |
Symbole | Données d'entrée | Données de sortie | I2t [A2s] | Résistance thermique jonction/boîtier [°C/W] | Dimensions | Graphique | ||||
---|---|---|---|---|---|---|---|---|---|---|
Tension de commande VRMS AC | Courant d'entrée [mA] | Courant de charge ARMS | Plage de tension VRMS | Tension max Vpeak | Courant max Apeak | |||||
A 2410 | 90 - 280 | 4(240V)RMS | 0,04 - 10 | 24-280 | 600 | 120 | 60 | 1,48 | fig. 1 | 2 |
A 2425 | 90 - 280 | 4 (240V)RMS | 0,04 - 25 | 24-280 | 600 | 250 | 260 | 1,02 | rys. 1 | 4 |
A 2450 | 90 - 280 | 4 (240V)RMS | 0,04 - 50 | 24-280 | 600 | 625 | 1620 | 0,63 | rys. 1 | 5 |
A 2475 | 90 - 280 | 4 (240V)RMS | 0,04 - 75 | 24-280 | 600 | 1000 | 4150 | 0,31 | rys. 1 | 6 |
A 2490 | 90 - 280 | 4 (240V)RMS | 0,04 - 90 | 24-280 | 600 | 1200 | 6000 | 0,28 | rys. 1 | ^4| |
A 24110 | 90 - 280 | 4 (240V)RMS | 0,15- 110 | 24-280 | 600 | 1500 | 9340 | 0,25 | rys. 1 | 8 |
A 24125 | 90 - 280 | 4 (240V)RMS | 0,15 - 125 | 24-280 | 600 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
A 4812 | 90 - 280 | 4 (240V)RMS | 0,04 -12 | 80-530 | 800 | 140 | 81 | 1 48 | rys. 1 | 3 |
A 4825 | 90 - 280 | 4 (240V)RMS | 0,04 - 25 | 80-530 | 800 | 250 | 260 | 1 02 | rys. 1 | 4 |
A 4850 | 90 - 280 | 4 (240V)RMS | 0,04 - 50 | 80 530 | 800 | 625 | 1620 | 0,63 | 1A | 5 |
A 4875 | 90 - 280 | 4 (240V)RMS | 0,04 - 75 | 80-530 | 800 | 1000 | 4150 | 0,31 | rys. 1 | 6 |
A 4890 | 90 - 280 | 4 (240V)RMS | 0,04 - 90 | 80-530 | 800 | 1200 | 6000 | 0,28 | rys. 1 | 7 |
HA 4812 | 90 - 280 | 4 (240V)RMS | 0,04 - 12 | 48-530 | 1200 | 140 | 81 | 1,48 | rys. 1 | 3 |
HA 4825 | 90 - 280 | 4 (240V)RMS | 0,04 - 25 | 48-530 | 1200 | 250 | 260 | 1,02 | rys. 1 | 4 |
HA 4850 | 90 - 280 | 4 (240V)RMS | 0,04 - 50 | 48-530 | 1200 | 625 | 1620 | 0,63 | rys. 1 | 5 |
HA 4875 | 90 - 280 | 4 (240V)RMS | 0,04 - 75 | 48 530 | 1000 | 1000 | 4150 | 0,31 | rys. 1 | 6 |
HA 4890 | 90 - 280 | 4 (240V)RMS | 0,04 - 90 | 48-530 | 1200 | 1200 | 6000 | 0,28 | rys. 1 | 7 |
HA 48110 | 90 - 280 | 4(240V)RMS | 0,15 - 110 | 48-530 | 1200 | 1500 | 9340 | 0,25 | rys. 1 | 8 |
HA 48125 | 90 - 280 | 4 (240V)RMS | 0,15 - 125 | 48-660 | 1200 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
HA 6025 | 90 - 280 | 4 (240V)RMS | 0,04 - 25 | 48-660 | 1200 | 250 | 260 | 0,31 | rys. 1 | 4 |
HA 6050 | 90 - 280 | 4 (240V)RMS | 0,04 - 50 | 48-660 | 1200 | 625 | 1620 | 0,28 | rys. 1 | 5 |
HA 6090 | 90 - 280 | 4 (240V)RMS | 0,04 - 90 | 48-660 | 1200 | 1200 | 6000 | 0,25 | rys. 1 | 7 |
HA 60125 | 90 - 280 | 4(240V)RMS | 0,15 - 125 | 48-660 | 1200 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
Symbole | Données d'entrée | Données de sortie | I2t [A2s] | Résistance thermique jonction/boîtier [°C/W] | Dimensions | Graphique | ||||
---|---|---|---|---|---|---|---|---|---|---|
Tension de commande VDC | Courant d'entrée [mA] | Courant de charge ARMS | Plage de tension VRMS | Tension max Vpeak | Courant max Apeak | |||||
D2410 | 3-32 | 3,4(5V)DC | 0,04 - 10 | 24-280 | 600 | 120 | 60 | 1,48 | fig. 1 | 2 |
D2425 | 3-32 | 3,4(5VDC | 0,04 - 25 | 24-280 | 600 | 250 | 260 | 1,02 | fig. 1 | 4 |
D2450 | 3-32 | 3,4(5V)DC | 0,04 - 50 | 24-280 | 600 | 625 | 1620 | 0,63 | rys. 1 | 5 |
D2475 | 3-32 | 3,4(5V)DC | 0,04 - 75 | 24-280 | 600 | 1000 | 4150 | 0,31 | rys. 1 | 6 |
D2490 | 3-32 | 3,4(5VDC | 0,04 - 90 | 24-280 | 600 | 1200 | 6000 | 0,28 | rys. 1 | 7 |
D24110 | 3-32 | 3,4(5V)DC | 0,15 - 110 | 24-280 | 600 | 1500 | 9340 | 0,25 | rys. 1 | 8 |
D24125 | 3-32 | 3,4(5V)DC | 0,15 - 125 | 24-280 | 600 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
HD4825 | 3-32 | 3,4(5V)DC | 0,04 - 25 | 48-530 | 1200 | 250 | 260 | 1,02 | rys. 1 | 4 |
HD4850 | 3-32 | 3,4(5V)DC | 0,04 - 50 | 48-530 | 1200 | 625 | 1620 | 0,63 | rys. 1 | 5 |
HD4875 | 3-32 | 3,4(5V)DC | 0,04 - 75 | 48-530 | 1200 | 1000 | 4150 | 0,31 | rys. 1 | 6 |
HD4890 | 3-32 | 3,4(5V)DC | 0,04 - 90 | 48-530 | 1200 | 1200 | 6000 | 0,28 | rys. 1 | 7 |
HD48110 | 3-32 | 3,4(5V)DC | 0,15 - 110 | 48-530 | 1200 | 1500 | 9340 | 0,25 | rys. 1 | 8 |
HD48125 | 3-32 | 3,4(5V)DC | 0,15 - 125 | 48-660 | 1200 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
HD6025 | 3-32 | 3,4(5V)DC | 0,04 - 25 | 48-660 | 1200 | 250 | 260 | 0,31 | rys. 1 | 4 |
HD6050 | 3-32 | 3,4(5V)DC | 0,04 - 50 | 48-660 | 1200 | 625 | 1620 | 0,28 | rys. 1 | 5 |
HD6090 | 3-32 | 3,4(5V)DC | 0,04 - 90 | 48-660 | 1200 | 1200 | 6000 | 0,25 | rys. 1 | 7 |
HD60125 | 3-32 | 3,4(5V)DC | 0,15 - 125 | 48-660 | 1200 | 1750 | 12700 | 0,22 | rys. 1 | 9 |
Figure 2![]() | Figure 3![]() | Figure 4![]() |
Figure 5![]() | Figure 6![]() | Figure 7![]() |
Figure 8![]() | Figure 9![]() |
