Fabricant: Greenwood-Power

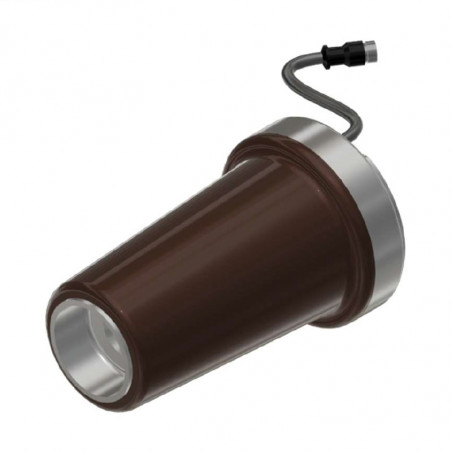

Capteur de tension avec un cône compatible avec EN50181 Type C - T240C

Voltage sensor T240C-xx

The voltage sensor range is designed according the IEC-standard to meet maximum combability on the market. This product is designed for use in conjunction with devices, which are build according the standard. The voltage sensor cone shape is according EN50181 type C and fits for all T-connectors using this standard.

Features

  • No calibration on Site is needed
  • Accuracy class according IEC61869-11: 0,2/0,5/1/3 [&] 3P/6P
  • Cost efficient design
  • Easy to install and robust design
  • Short form factor, double T-cable extensions could be used.
  • Accuracy over complete lifetime

Specification
Applied Standards: IEC61869-11, Type C cone acc. EN50181
Primary voltage: 20000/√3V*
Voltage factor 1,9*Un for 8h
Secondary output: 3,25/√3V*
Burden: 200kOhm±1%, 350pF*
Insulation level: 24/50/125kV
Accuracy classes: 0,2/0,5/1/3 [&] 3P/6P according IEC61869-11
Operating temperature range: -40°C to +80°C
Storage temperature range: -40°C to +80°C
Frequency: 50 or 60Hz*
Overvoltage protection: Internal surge arrestor
Cable: 2pole, shielded, twisted pair, 2m, open ends (brown-a, black-n)*

Dimensions

The short form factor enables maximum compatibility to existing installations. The hexagonal nut is
made of solid aluminium for maximum torque during the installation.

Installation

The voltage sensor is simple to install; the existing blind plug could be removed and the voltage
sensor could be screwed in, without making calibration measurements in the switch gear.


The voltage sensor earthing point must be connected with ≥ 6mm² wire to the switch gear ground





Connection

The voltage sensor is directly connected to a measurement
device. Contact Vendor for a list of compatible devices. 3
Voltage sensors should be used for each device.



M8-Subconnector

1… Connection a, brown wire

3… Connection n, black wire

4… Shield connection point
