Fabricant: PEM

Série de recti

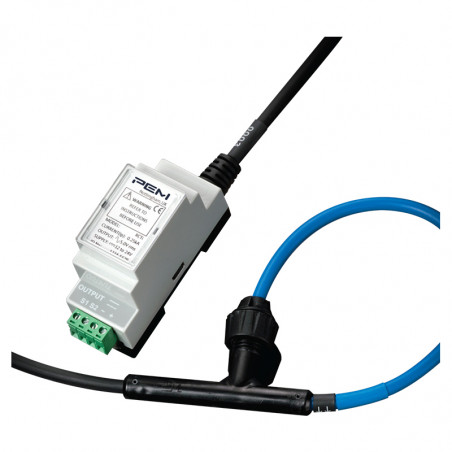

The RCTi is a current transducer for permanent installation. Simple to install and easy to retrofit, the Rogowski (sense) coil is thin, lightweight, flexible and clip-around. The secondary output from the transducer is an instantaneous voltage proportional to the measured primary current providing an accurate, low cost, wide-band measurement of the primary current. The RCTi is typically used with power and harmonic meters and analyzers, current meters, oscilloscopes, data-loggers, data acquisition cards, and in power quality applications.

Technical data:

  • Traceable calibration
    • Every unit is supplied with a traceable calibration certificate
    • No magnetic materials means excellent linearity <0.1% reading
  • Fully isolated measurement
    • Isolated power supply 2kVdc
    • Coil rated at 2kVpeak (withstand test is 4kVrms / 50Hz/ 60 sec)
  • Small DIN rail (or panel mount) enclosure – UL94
    V-0 rated

Options:

  • IP65 die-cast aluminium panel mount enclosure (previously known as the IRF)
  • Isolated BNC-BNC cable split option - Between coil and electronics to enable ease of installation e.g. threading through existing conduit. Standard cable permanently fixed.

Features:

  • Easy to retrofit
  • Simple to install in applications where space is limited
  • Non-intrusive - no power drawn from the primary circuit
  • Wide-band up to 1MHz, to measure harmonic components or complex waveforms (e.g. induction heating, VF drives, power measurement
  • The size of the Rogowski coil can be specified independently of the primary current
  • Does not suffer from magnetic saturation
  • Intrinsically safe
  • Equivalent to Class 1 CT or better
  • Low cost monitoring for medium/large currents.

Rated current [Arms] 250, 500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000,
10000, 16000, 20000, 25000, 30000, 40000, 50000
Rated output (Full scale FS) 5,0Vrms (±7,07V peak)
Output limit 150% FS (±10,6V peak)
Supply voltage (Wide input) 12Vdc (-10%) to 24Vdc (+20%)
Max. Input power 0,4W
Operating temperature range -5°C do +65°C (Integrator electronics)
-20°C do +80°C (Coil and cable)
Bandwidth (-3dB) (<2000A) 0,6Hz to 1MHz (300mm) 600kHz (700mm)
(≥2000A) 0,2Hz to 1MHz (300mm) 600kHz (700mm)
Phase shift @50Hz (<2000A) 0,9±0,1degrees
(≥2000A) 0,4±0,1degrees
Accuracy (typ.) ±1,0% of reading (5% to 150% FS, 25°C)
Output load >10,0kΩ
Coil Length 300mm, 500mm or 700mm (Custom lengths available)
Cable Length 1m or 2,5m (Custom lengths available)

Connections
Catalogue number
Rated current [A]:
250, 500, 800, 1000, 1600, 2000, 2500, 3000, 4000, 5000, 8000, 10000, 16000, 20000, 25000, 30000, 40000, 50000
Cable Length [m]:
1
2,5
....Custom lengths available
Coil Length [mm]:
300
500
700
....Custom lengths available
Options
BC - an option with detachable cable with BNC connectors
IRF - cast aluminum housing with IP65
Dimensions [mm]
