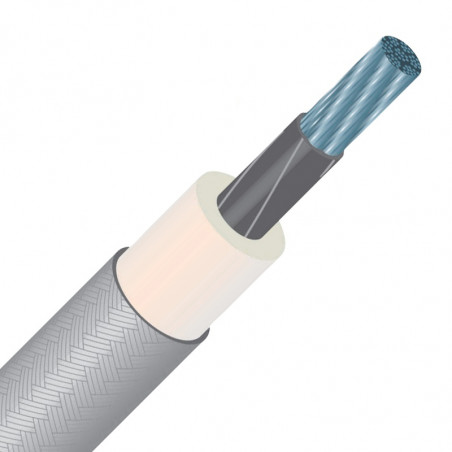

SILICOUL 6,6kV -60 ° C à + 180 ° C (Classe H)

Characteristics
• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV.
• Excellent mechanical strength.
• Rated voltage: 6.6 kV.
• Test voltage: 15 kV.

Standard products
• Standard insulation colour: white.
• Standard reinforcing braid colour: grey.

Approvals - standards
• Lloyd’s Register approval certificates: compliance with the tests described as per standards
IEC 60228, IEC 60092-350/354/360,
IEC 60754-2, IEC 60332-1-1/2,
IEC 60332-3-22 category A and IEC 60331-11/21.

Applications
• Cabling for rotating machines: motors, alternators, generators.
• Cabling for static machines: transformers, inductors, inverters, choppers.
• Shipbuilding and railway construction.
• Power cabinets.

Options
• Extra-flexible tin-plated copper core class 6 as per IEC 60228: contact us.
• Flexible or extra-flexible bare copper, silver-plated or nickel-plated copper core – class 5 or 6 as per IEC 60228: contact us.
• Without reinforcing braid (ref. SILICOUL® ST 6.6 KV): contact us.
• Varnished synthetic fibre reinforcing braid (ref. SILICOUL® RI 6.6 KV): contact us.
• Very high temperature fibre reinforcing braid: contact us.
• Outer flexible armour: > Galvanised steel braid (ref. SILICOUL® BG 6.6 KV): contact us. > Stainless steel braid (ref. SILICOUL® BI 6.6 KV): contact us.
• Multi-conductor cable made up of an assembly of several single conductor cables SILICOUL® 6.6 KV: contact us.
• Other colours: contact us.
• Other nominal cross-sections: contact us.
• Other options and/or combinations of the options outlined above: contact us.

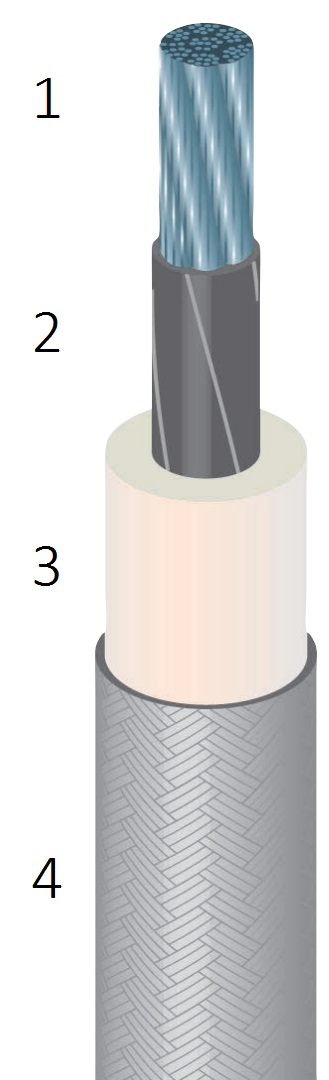

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • Semi-conductor tape(s).
3 • Insulation: Silicone rubber.
4 • Reinforcement: Coated synthetic fibre braid.


Nominal cross-section
[mm2]		 Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Nominal diameter
[mm]		 Approximate linear weight
[kg/km]
2.5 50 x 0.25 8.21 7.7 68.1
4 56 x 0.30 5.09 8.3 86.2
6 84 x 0.30 3.39 9.2 114
10 80 x 0.40 1.95 10.4 166
16 126 x 0.40 1.24 1 1.6 227
25 196 x 0.40 0.795 13.1 325
35 276 x 0.40 0.565 14.6 425
50 396 x 0.40 0.393 16.7 583
70 360 x 0.50 0.277 18.3 759
95 485 x 0.50 0.210 20.9 995
120 608 x 0.50 0.164 23.0 1262
150 756 x 0.50 0.132 25.3 1555
185 944 x 0.50 0.108 26.9 1904
240 1221 x 0.50 0.0817 30.7 2522
300 1525 x 0.50 0.0654 32.9 3059
400 2037 x 0.50 0.0495 37.2 3999
