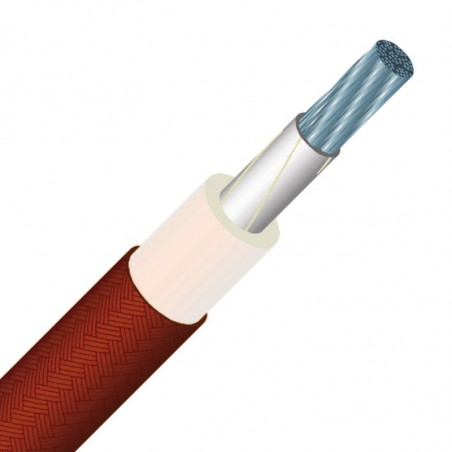

Silicoul® Style 3662 - Certificat UL et Cul UL et Cul -60 ° C jusqu'à +180 °

General characteristics

• continuous operating temperatures: -60 °C to +180 °C
• good resistance to thermal shock and UV
• excellent mechanical strength
• rated voltage: 4.2 kV
• test voltage: 10 kV

Standard products

• standard insulation colour: white
• standard reinforcing braid colour: brown

Approvals – standards

• UL approval (180 °C / 4200 V) as per standard UL 758 – File no. E101965
• cUL approval (CSA 180 °C / 4200 V) as per GTO-15 and standard C22.2 N° 127 – File no. E211350
• compliance with the tests described as per standard IEC 60092-350/354/360, IEC 60331-11/21, IEC 60332-1-1/2, IEC 60332-3-22 category A and IEC 60754-2
• horizontal flame as per UL approval
• FT1 and FT2 flame ratings as per cUL approval

Applications

• cabling for rotating machines: motors, alternators, generators
• cabling for static machines: transformers, inductors, inverters, choppers
• shipbuilding and railway construction
• power cabinets

Options

• flexible bare copper core class 5 as per IEC 60228: contact us
• flexible or extra-flexible silver-plated or nickel-plated copper core - class 5 or 6 as per IEC 60228: contact us
• without reinforcing braid: contact us
• varnished synthetic fibre reinforcing braid: contact us
• very high temperature fibre reinforcing braid: contact us
• multi-conductor cable made up of an assembly of single conductor cables SILICOUL® Style 3662 4.2 KV: contact us
• other colours: contact us
• other nominal metric or American cross-sections: contact us
• other options and/or combinations of the options outlined above: contact us
