Siligaine 15C2 de -60 ° C à + 250 ° C (classe H et C)
  • Siligaine 15C2 de -60 ° C à + 250 ° C (classe H et C)

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: OMERIN

Siligaine 15C2 de -60 ° C à + 250 ° C (classe H et C)

SILIGAINE 15C2 -60°C to +250°C Classes H and C

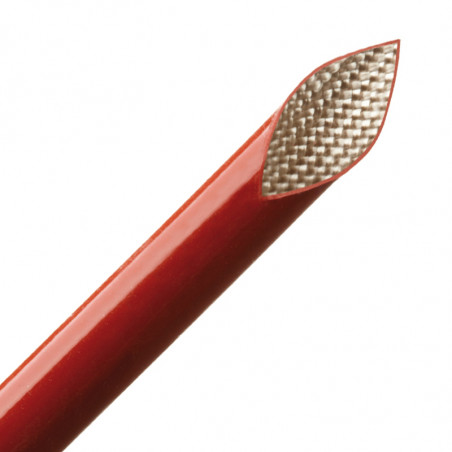

15C2 FIBRE G LASS BRAIDED SLEEVIN G WITH SILICONE RUBBER COATIN G

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV
• Good resistance to common chemical environments
• Compatible with most impregnation varnishes class H
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): 2.5 kV.

Standard products
• Colour : brick red.

Packaging
• Diameters from 0.5 to 4.5 mm: 200 m rolls.
• Diameter 5 mm: 100 m rolls
• Diameters from 6 to 16 mm: 100 m spools.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 402.
• UL approval, category UZIQ2: meets the requirements of the flame retardant test VW-1. File no.: E212701.

Applications
• Internal cabling for rotating machines classes H and C (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.


INTERNAL DIAMETER SILIGAINE 15C2
Nominal value (mm) Tolerance (mm) Minimum wall thickness (mm) Approximate linear weight (kg/km)
0.5 ±0.15 0.15 2.4
0.8 ±0.15 0.15 3.0
1 ±0.20 0.15 3.4
1.5 ±0.20 0.15 4.5
2 ± 0.20 0.15 5.7
2.5 ± 0.20 0.15 6.9
3 ± 0.20 0.15 8.2
3.5 ± 0.25 0.15 9.5
4 ± 0.25 0.20 11.0
4.5 ± 0.25 0.20 12.4
5 ± 0.25 0.20 14.0
6 ± 0.25 0.20 17.2
7 ± 0.25 0.20 20.7
8 ± 0.25 0.20 24.4
9 ± 0.50 0.20 28.4
10 ± 0.50 0.40 32.7
12 ± 0.50 0.40 54.0
14 ± 1.0 0.40 73.6
16 ± 1.0 0.40 91.8
