Vous devez être connecté
Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters

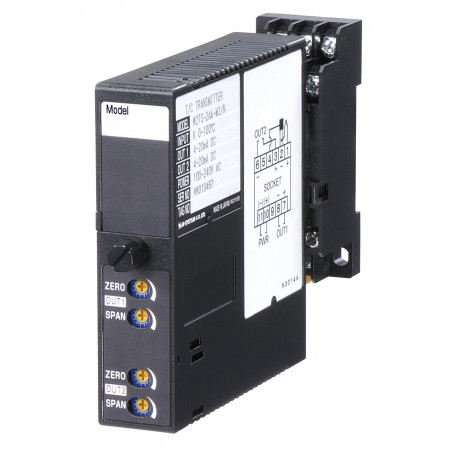

Types of inputs: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage o different ranges
Possibility to make a range of inputs / outputs on a special order.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Strength dielectric | With z DC power supply: 2000V AC With AC power: 1500V AC |
Ranges selection | Programmable via PC |
Double Output | Yes |
Power | AC / DC | tr>
Operating temperature | - 5 to + 55 ° C |
Mounting | DIN rail |
Dimensions | 29.5x88.5x124mm |
Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?
