Fabricant: ALRE

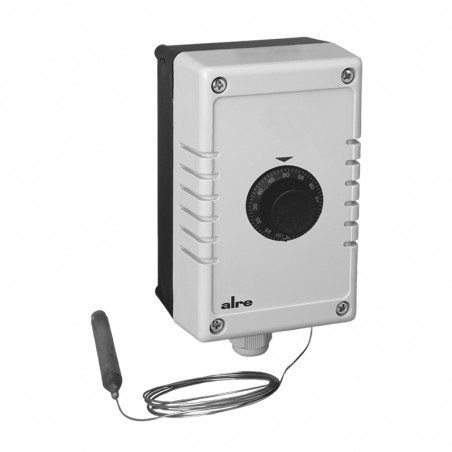

Thermostats JMT-2 à deux étages

Application

Multi-stage control of the temperature of liquid or gaseous media, e.g., for activating two-stage burners or heating registers.

The SW-200-12 protecting coil is to be used for temperature control of non-aggressive gases in ducts; for temperature control in non-aggressive fluids, use the TH immersion sleeve, and in aggressive fluids, the NTH immersion sleeve.

Technical data

Housing colour: grey (lower part like RAL 7016, upper part like RAL 7035)
Sensor material: Cu
Capillary length: 1.5 m
Ambient temperature: −15…+55 °C
Max. sensor temperature top scale value +15%
Permissible atmospheric humidity: Max. 95% rel. humidity, non-condensing
Operating voltage: none
Max. switching current: 15 (8) A
Min. switching current: 150 mA
Max. switching voltage: 230 VAC, 50 Hz
Min. switching voltage: 24 VAC, 50 Hz
Switching element: microswitch
Switching contact: 2 x togglers, potential-free
Control function: 2-stage heating, 2-stage cooling, heating or cooling with neutral zone
Hysteresis between the stages: approx. 1…7 K, adjustable
Electrical connection: screw-type terminals
Mounting/attachment: wall mounting
Protection rating: IP 65
Protection class: I
Safety and EMC: according to DIN EN 60730
Sensor: liquid-filled capillary
General features: Scale: degrees Celsius
Type Item no. Control range Hysteresis in thestage (approx.): Sensor a x l (mm) Features PG
JMT-206 X E6060340 20…80 °C 1 K 9.6 x 122 mm External setting, TR II

TR = Temperature controller
