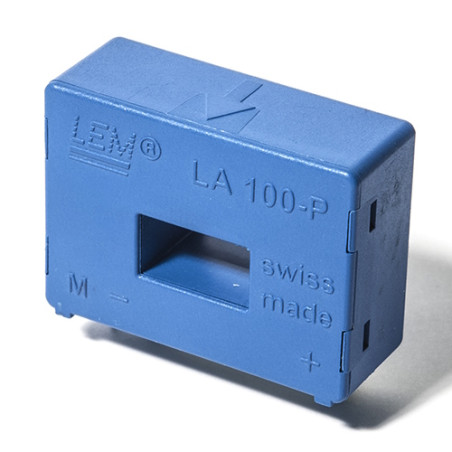

Transducteur de courant LA 100-P
Transducteur de courant LA 100-P

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: LEM

Transducteur de courant LA 100-P

  • LA 100-P
  • Précision
  • Courant nominal (A)







  • Boucle de rétroaction [ouverte / fermée] // technologie Eta

Description:

LEM LA 100-P is a high-quality current transducer that provides precise measurement of DC, AC, pulsed, and mixed currents. It features high accuracy, excellent linearity, low temperature drift, and a wide bandwidth. With its fast response time and high resistance to electromagnetic interference, it is perfect for demanding industrial applications.

The device has galvanic isolation between the primary and secondary circuits, ensuring additional safety and insulation. LEM LA 100-P is used in variable speed AC drives, servo motor drives, DC motor converters, battery power supplies, UPS, SMPS, and welding systems.

Main Features:

  • Closed-loop (compensated) current transducer using the Hall effect
  • Insulated plastic housing compliant with UL 94-V0
  • Excellent accuracy
  • Very good linearity
  • Low temperature drift
  • Optimized response time
  • Wide bandwidth
  • No insertion losses
  • High immunity to external interference
  • Overcurrent capability

Applications:

  • Variable speed AC drives and servo motors
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical Data:

Parameter Value
Nominal Primary Current RMS 100A
Primary Current Measurement Range 0…±150A
Measuring Resistance at: TA=70°C TA=85°C
RM min RM max RM min RM max
±12V ±100Amax 0 50Ω 0 42Ω
±120Amax 0 22Ω 0 14Ω
±15V ±100Amax 0 110Ω 20Ω 102Ω
±150Amax 0 33Ω 20Ω 25Ω
Nominal Secondary Current RMS 50mA
Ratio 1:2000
Supply Voltage (±5%) ±12…15V
Current Consumption 10 + ISmA
Error at IPN, TA=25°C ±15V (±5%) ±0.45%
±12…15V (±5%) ±0.70%
Bandwidth (-1dB) DC…200kHz
Operating Temperature -40÷85°C
Storage Temperature -40÷95°C
Secondary Winding Resistance at: TA=70°C 120Ω
TA=85°C 128Ω
Weight 18g
