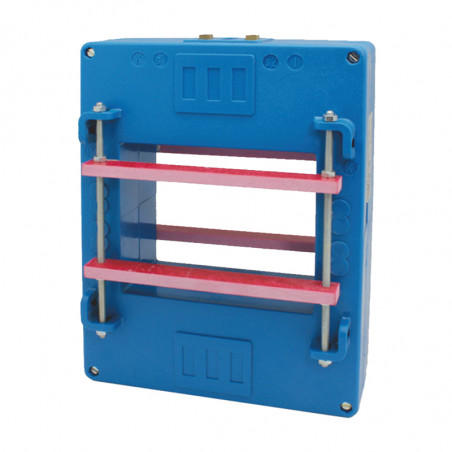

![TAT129 Transformateur de courant pour un rail 127x105mm TAT129 Transformateur de courant pour un rail 127x105mm](https://www.dacpol.eu/8401-large_default/tat129-transformateur-de-courant-pour-un-rail-127x105mm.jpg)
![TAT129 Transformateur de courant pour un rail 127x105mm TAT129 Transformateur de courant pour un rail 127x105mm](https://www.dacpol.eu/8401-large_default/tat129-transformateur-de-courant-pour-un-rail-127x105mm.jpg)
Vous devez être connecté
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters
Technical Data
Thermoplastic material | UL94-V0 |
Operating frequency | 50-60Hz |
Voltage | 0.72kV |
Test voltage | 3kV * 1’50Hz |
Insulation | Klasa E |
Protection degree | IP 20 |
Continuous overcurrent | 1.2In |
Rated short-time thermal current (I th) | 80 In |
Rated dynamic current (I dyn) | 2.5 x I th |
Safety factor | N<5 |
max. power dissipation (max range value) | <40W |
Operating temperature | -25 +50o C |
Storage temperature | -40 +80o C |
Manufactured according to |
IEC/E N 60044-1, |
SECONDARY 5A
Ratio | Burdens [VA] |
Code | |
---|---|---|---|
cl. 0.5 | cl. 1 | ||
1000/5 A | 25 | 50 |
TAT1291K0X05 |
1200/5 A | 30 | 60 |
TAT1291K2X05 |
1500/5 A | 35 | 70 |
TAT1291K5X05 |
2000/5 A | 40 | 80 |
TAT1292K0X05 |
2500/5 A | 50 | 100 |
TAT1292K5X05 |
3000/5 A | 70 | 120 |
TAT1293K0X05 |
4000/5 A | 80 | 150 |
TAT1294K0X05 |
5000/5 A | 100 | 180 |
TAT1295K0X05 |
6000/5 A | 100 | 180 |
TAT1296K0X05 |
SECONDARY 1A
Ratio | Burdens [VA] |
Code | |
---|---|---|---|
cl. 0.5 | cl. 1 | ||
1000/1 A | 25 | 50 |
TAT1291K0X01 |
1200/1 A | 30 | 60 |
TAT1291K2X01 |
1500/1 A | 35 | 70 |
TAT1291K5X01 |
2000/1 A | 40 | 80 |
TAT1292K0X01 |
2500/1 A | 50 | 100 |
TAT1292K5X01 |
3000/1 A | 70 | 120 |
TAT1293K0X01 |
4000/1 A | 80 | 150 |
TAT1294K0X01 |
5000/1 A | 100 | 180 |
TAT1295K0X01 |
6000/1 A | 100 | 180 |
TAT1296K0X01 |
Dimensions
