Tuyaux en plastique (polyamide 12)
  • Tuyaux en plastique (polyamide 12)

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: John-Guest

Tuyaux en plastique (polyamide 12)

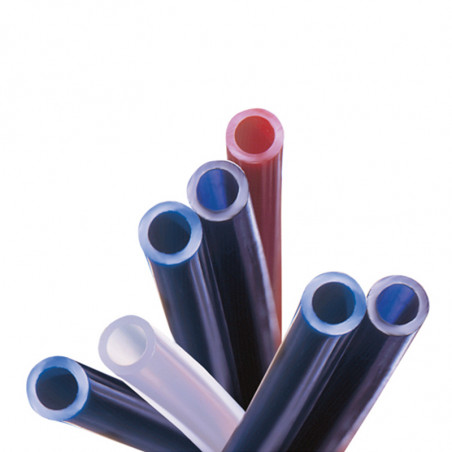

Plastic pipes offered by John Guest well successfully tested in many applications through many years.They are temperature, pressure, vibration, shocks, corrosion and ageing processes resistant. They are also not heavy. They are great to use with John Guest fast pipe connectors. They are great for air and liquid application.

Operation temperature
with constant load: -40 °C -+120 °C (air)

Physical properties

Type Unit material polyamid 12
Density in 20°C temperature g/cm3 1,04
Expansion line coefficient l/K 15x1O5
Melting point °C ca. + 160° bis + 170°


Article number Execution according to dimensions [mm] external diameter                    internal diameter wall thickness [mm] Operating pressure bar**(20°c) max. min. bending radius [mm] Package unit[m]
PA-FM0402-100M* DIN 73378 soft 4                                    2 1 45 20 100
PA-FM0503-100M* DIN 73378 soft 5                                    3 1 33 25 100
PA-FM0604-100M* DIN 73378 soft 6                                    4 1 26 30 100
PA-FM0806-100M* DIN 73378 soft 8                                    6 -1 19 40 100
PA-FM1008-100M* DIN 73378 soft 10                                   8 1 15 60 100
PA-FM1209-100M* DIN 73378 soft 12                                   9 1/5 19 60 100
PA-FM1512-100M* DIN 73378 soft 15                                  12 1/5 15 90 100
PA-FM1814-100M* DIN 73378 soft 18                                  14 2,0 16 100 100
PA-FM2218-100M* soft 22                                  18 2,0 14 100 100
PA-FM2823-50M* soft 28                                 23 2,5 14 190 50


Article number Execution according to Dimensions [mm] external diameter                     internal diameter wall thickness [mm] Operation pressure  bar ** (20°c) maks. Package unit [m]
PA-RM1209-3M-20* DIN 73378 hard 12                                   9 1,5 38 20x 3m=60m
PA-RM1512-3M-20* DIN 73378 hard 15                                   12 1,5 25 20x 3m=60m
PA-RM1814-3M-20* DIN 73378 hard 18                                   14 2,0 28 20x 3m=60m
PA-RM2218-3M-20* hard 22                                   18 2,0 22 20x 3m=60m
PA-RM2823-3M-10* hard 28                                  23 2,5 20 10x3m=30m


Operation pressure usage (calculation example)

Temperature range +20 °C +30 °C +40 °C +50 °C +60 °C +70 °C +80 °C +90 °C +100°C
John Guest pipes soft/hard 100% 33% 71% 62% 55% 49% 45% 41% 37%
Example: PA-FM1512-100M-E (soft): Operation pressure @ +50 °C: 62% with 15 bar = 9,3 bar
PA-RM1512-3M-20E (hard]: Operation pressure @ +50 °C: 62% with 25 bar = 15,5 bar

Clamping ring
Pipe clipper
article number External pipe diameter
JG-RK  6 6
JG-RK  8 8
JG RK 10 10
JG RK 12 12
JG RK 15 15
JG-RK 18 18
JG-RK 22 22
JG-RK 28 28
article number External pipe diameter
JG-TS 28 04-28 mm
additional blade 28 (1 pce.)
