Type de thyristor | IT(AV) [A] | UDRM [V] | ITSM [A] | I2t [A2s] | (duD/dt) [V/µs] | tq(typ) [µs] | diT/dt [A/µs] | ITRM - 50% de remplissage à Tc=55°C, di/dt=100A/µs | IGT [mA] | Rthjc [°C/W] | P kG | Boîtier fig. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 kHz | 5 kHz | 10 kHz | ||||||||||||
[A] | [A] | [A] | ||||||||||||
R 210 CH | 425 | 200 - 1400 | 4700 | 110000 | 200 | 20 -30 | 1000 | 800 | 685 | 670 | 200 | 0,06 | 530 - 1000 | 1 |
R 185 CH | 500 | 200 - 1200 | 6600 | 218000 | 200 | 20 -25 | 1000 | 1000 | 850 | 820 | 200 | 0,06 | 530 - 1000 | |
R 216 CH | 560 | 200 - 1200 | 6900 | 240000 | 200 | 20 -30 | 1000 | 1180 | 1000 | 975 | 200 | 0,06 | 530 - 1000 | |
R 180 CH | 810 | 200 - 1000 | 8800 | 387000 | 200 | 12 - 20 | 1500 | 1500 | 1200 | 1050 | 300 | 0,032 | 1000 - 2000 | 2 |
R 190 CH | 830 | 200 - 1400 | 9350 | 437000 | 200 | 25 - 35 | 1500 | 1650 | 1450 | 1350 | 300 | 0,032 | 1000 - 2000 | |
R 200 CH | 880 | 1200 - 2100 | 8250 | 340000 | 200 | 60 - 75 | 1500 | 1700 | 1400 | 1200 | 300 | 0,032 | 1000 - 2000 | |
R 219 CH | 930 | 200 - 1200 | 9900 | 490000 | 200 | 15 - 25 | 1500 | 1800 | 1500 | 1350 | 300 | 0,032 | 1000 - 2000 | |
R 220 CH | 959 | 200 - 1200 | 10800 | 580000 | 200 | 20 - 30 | 1500 | 1950 | 1700 | 1500 | 300 | 0,032 | 1000 - 2000 | |
R 270 CH | 990 | 200 - 800 | 12000 | 720000 | 200 | 10 - 20 | 1500 | 2000 | 1950 | 1900 | 300 | 0,032 | 1000 - 2000 |

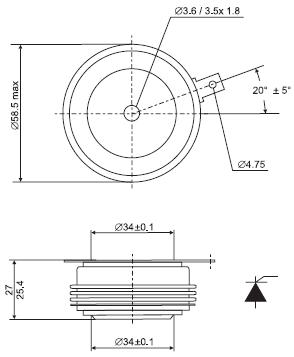

Rysunek 1 | Rysunek 2 |
![]() | ![]() |
Disponibilité: Veuillez noter que ce produit est en rupture de stock
Vous pouvez passer une première commande, signaler votre intérêt pour un produit en cliquant sur le bouton «Demander la disponibilité».
Ajouter à la liste de souhaits
Vous devez être connecté
Type de thyristor | IT(AV) [A] | UDRM [V] | ITSM [A] | I2t [A2s] | (duD/dt) [V/µs] | tq(typ) [µs] | diT/dt [A/µs] | ITRM - 50% de remplissage à Tc=55°C, di/dt=100A/µs | IGT [mA] | Rthjc [°C/W] | P kG | Boîtier fig. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 kHz | 5 kHz | 10 kHz | ||||||||||||
[A] | [A] | [A] | ||||||||||||
R 210 CH | 425 | 200 - 1400 | 4700 | 110000 | 200 | 20 -30 | 1000 | 800 | 685 | 670 | 200 | 0,06 | 530 - 1000 | 1 |
R 185 CH | 500 | 200 - 1200 | 6600 | 218000 | 200 | 20 -25 | 1000 | 1000 | 850 | 820 | 200 | 0,06 | 530 - 1000 | |
R 216 CH | 560 | 200 - 1200 | 6900 | 240000 | 200 | 20 -30 | 1000 | 1180 | 1000 | 975 | 200 | 0,06 | 530 - 1000 | |
R 180 CH | 810 | 200 - 1000 | 8800 | 387000 | 200 | 12 - 20 | 1500 | 1500 | 1200 | 1050 | 300 | 0,032 | 1000 - 2000 | 2 |
R 190 CH | 830 | 200 - 1400 | 9350 | 437000 | 200 | 25 - 35 | 1500 | 1650 | 1450 | 1350 | 300 | 0,032 | 1000 - 2000 | |
R 200 CH | 880 | 1200 - 2100 | 8250 | 340000 | 200 | 60 - 75 | 1500 | 1700 | 1400 | 1200 | 300 | 0,032 | 1000 - 2000 | |
R 219 CH | 930 | 200 - 1200 | 9900 | 490000 | 200 | 15 - 25 | 1500 | 1800 | 1500 | 1350 | 300 | 0,032 | 1000 - 2000 | |
R 220 CH | 959 | 200 - 1200 | 10800 | 580000 | 200 | 20 - 30 | 1500 | 1950 | 1700 | 1500 | 300 | 0,032 | 1000 - 2000 | |
R 270 CH | 990 | 200 - 800 | 12000 | 720000 | 200 | 10 - 20 | 1500 | 2000 | 1950 | 1900 | 300 | 0,032 | 1000 - 2000 |
Rysunek 1 | Rysunek 2 |
![]() | ![]() |
