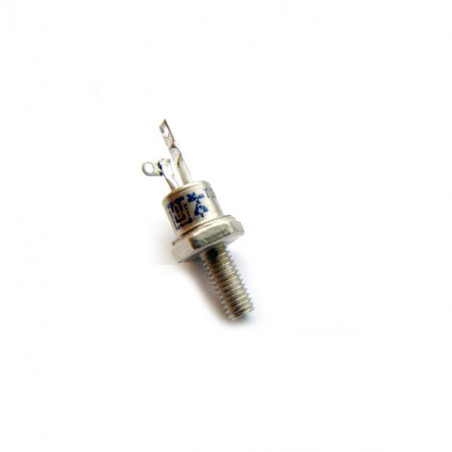

Thyristors standard

Type de thyristorIT(AV)/TC
[A/°C]
UDRM VRRM
[V]
ITSM
[A]
I2t
[A2s]
IGT
[mA]
duD/dt
[V/µs]
tq
[µs]
Rthjc
[°C/W]
Moment
[Nm]
Numéro de dessin
T22-1010/70100-80015011250100-1000402,01,5-21
T32-1616/95100-80030045050100-10001001,22-2,5
T32-2020/85100-80035062075  12-2,52
T32-2525/80100-800450102575  12-2,5
T52-6363/95400-120013008500150320-10001000,3514-124/5
T51-6363/951400-2000
T52-8080/90400-1200145010500
T51-8080/901400-1800
T52-100100/85400-1200160012800
T62-125125/90400-1200400080000150320-10001500,1428-326
T61-125125/901400-2000
T62-150150/90400-12004500101000
T61-150150/901400-1600
T62-175175/90400-12004700110000
T61-175175/901400-1600
T62-200200/80400-12005000125000   0,14
T62-225225/80400-8005500125000
T71-250250/751200-24006300200000200320-10002000,1038-417
T71-300300/70400-22007600290000
T71-350350/70400-20009100415000
T63-200200/90400-2200360065000150320-10001500,084,5-6,58
T63-300300/80400-16004500101000    kN
T63-400400/65400-12004700110000
T73-450450/70400-24007600290000200320-10002000,069-1111
T73-550550/65400-20009100415000    kN
T73-600600/60400-12009100415000
T75-650650/65400-16008100330000150320-10002000,049-119
T75-750750/65400-16009500450000    kN
T83-630630/70400-240010200520000200320-10002500,03712-1411
T83-800800/70400-160013000845000    kN
T83-10001000/75200-800180001620000
T95-10001000/70400-2400200002000000200320-1000 0,02322,5-2510
T95-12501250/70400-2000200002000000    kN
T95-14001400/70400-1600210002200000
T95-16001600/70200-800270003600000

Type de thyristorIT(AV)/TC
[A/°C]
UDRM VRRM
[V]
ITSM
[A]
I2t
[A2s]
IGT
[mA]
duD/dt
[V/µs]
tq
[µs]
diT/dt
[A/µs]
Rthjc
[°C/W]
Moment
[Nm]
Boîtier
numéro de dessin
F22-1010/70100-80012072100200-100012,5-402021,5-2, Nm1
F32-2020/80100-800300450100200-100012,5-40200,952,-2,5 Nm2
F32-2525/80
F51-6363/80800-1200108004000150320-100016-321500,3214,-17, Nm4
F51-8080/75800-120012607900
F61-125125/85800-1600360065000150320-100020-631500,1428,-32, Nm6
F62-150150/85800-1200400080000
F71-225225/80800-12006100168000200320-100025-631500,138,-41, Nm7
F63-200200/85800-1600310048000150320-100020-631500,084,5-6,5 kN8
F63-300300/70800-1200400080000150 25-63
F75-500500/70800-1200720026000150320-100025-632000,049,-11, kN9
P71-225225/80800-12006100186000200320-100025-402500,138,-41, Nm7
P83-500500/90800-12008000320000200320-100025-634000,03712,-14, kN11
P83-600600/75800-12009600460000200320-1000
P95-900900/75800-1200150001125000200320-100032-633000,02322,5-25, kN10

Rysunek 1Rysunek 2Rysunek 3Rysunek 4
T22, F22, S22T32, F32, S32T42, S42T52, F51, T52, F52
Tyrystor lamina T22, F22, S22Tyrystor lamina T32, F32, S32Tyrystor lamina T42, S42Tyrystor lamina T52, F51, T52, F52
Rysunek 5
T51, F51, T52, F52...-X1
Tyrystor Lamina T51, F51, T52, F52...-X1
Rysunek 6
T61, F61, T62, F62
Tyrystor Lamina T61, F61, T62, F62
Rysunek 7
T71, F71, P71
Tyrystor Lamina T71, F71, P71
Rysunek 8Rysunek 9
T63,F63T75,F75
Tyrystor Lamina T63,F63Tyrystor Lamina T75, F75
Rysunek 10Rysunek 11
T95,P95T73,F73,P73,T83,P83
Tyrystor Lamina T95,P95Tyrystor Lamina T73,F73,P73,T83,P83
