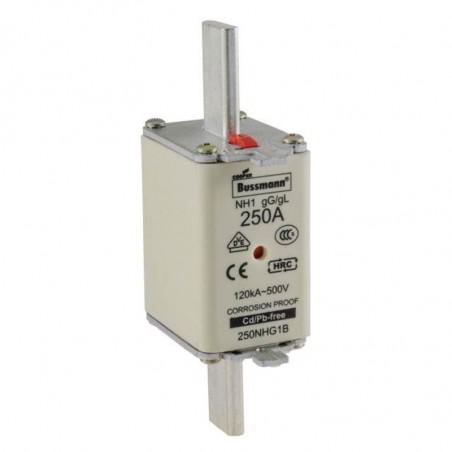

coupe industrielle insert NH (WTN)
  • coupe industrielle insert NH (WTN)

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: EATON Bussmann

coupe industrielle insert NH (WTN)

Technichal data
Dimension c00

Marking
In + NHG000B
Nominal current for gL/gG inserts
2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 35A, 40A, 50A, 63A, 80A, 100A
Nominal current for aM motor inserts
4A, 6A, 8A, 10A, 12A, 16A, 20A, 25A, 32A, 40A, 50A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw1.

Dimensions 00

Marking
In + NHG00B, In + NH00M
Nominal current for gL/gG inserts
125A, 160A
Nominal current for aM motor inserts
63A, 80A, 100A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw2.

Dimensions 1

Marking
In + NHG01B, In + NH1M
Nominal current for gL/gG inserts
6A, 10A, 16A, 20A, 25A, 32A, 35A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 224A, 225A, 250A
Nominal current for aM motor inserts
40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw3.

Dimensions 2

Marking
In + NHG02B, In + NH2M
Nominal current for gL/gG inserts
35A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 224A, 250A, 300A, 315A, 355A, 400A
Nominal current for aM motor inserts
125A, 160A, 200A, 250A, 315A, 400A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw4.

Dimensions 3

Marking
In + NHG03B, In + NH3M
Nominal current for gL/gG inserts
100A, 125A, 160A, 200A, 224A, 250A, 315A, 350A, 400A, 500A, 630A
Nominal current for aM motor inserts
315A, 400A, 500A, 630A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw5.

Dimensions 4A

Marking
In + NH4AG
Nominal current for gL/gG inserts
800A, 1000A, 1250A, 1600A
Nominal voltage
500V AC
Quantity in package
3
Time - current gL/gG inserts characteristic - drw6.

Drw. 1

Drw. 3

Drw. 5
Drw. 2

Drw. 4

Drw. 6

Casing

Dimensions A
[mm]
B
[mm]
B
[mm]
D
[mm]
E
[mm]
F
[mm]
G
[mm]
C00 49 78,5 15 21 35 41 6
00 49 78,5 15 30 35 48 6
1 68 135 20 41 40 53 6
2 68 150 25 51 48 61 6
3 68 150 32 72 60 76 6
4A 90 200 50 100 85 85 6
