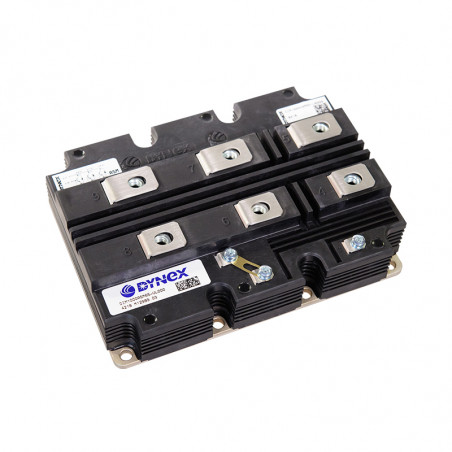

![Moduły tranzystorowe Moduły tranzystorowe](https://www.dacpol.eu/9023-large_default/moduly-tranzystorowe.jpg)
![Moduły tranzystorowe Moduły tranzystorowe](https://www.dacpol.eu/9023-large_default/moduly-tranzystorowe.jpg)
Musisz być zalogowany/a
Kategória
Eszközök telepítése
Induktorok korszerűsítése
Urządzenia indukcyjne
asd
A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit
Kérjük, használjon latin karaktereket
Symbol | Konfiguracja | Napięcie(V) | IC (A) | at TC (°C) | VCE (sat) (V) @ Tc=25°C | Total Esw (mJ) @ Tc=125°C | Rth(j-c) (°C/kW) (per switch) | Wymiary (mm) | Napięcie izolacji | Technologia |
1200 V | ||||||||||
AISiC Baseplate | ||||||||||
DIM2400ESM12-A | Single | 1200 | 2400 | 85 | 2,2 | 800 | 6 | 190 x 140 | 2.5kV | DNPT |
DIM1800ESM12-A | Single | 1200 | 1800 | 85 | 2,2 | 570 | 8 | 190 x 140 | 2.5kV | DNPT |
DIM1600FSM12-A | Single | 1200 | 1600 | 85 | 2,2 | 500 | 9 | 140 x 130 | 2.5kV | DNPT |
DIM1200FSM12-A | Single | 1200 | 1200 | 85 | 2,2 | 400 | 12 | 140 x 130 | 2.5kV | DNPT |
DIM800FSM12-A | Single | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
DIM800DDM12-A | Dual | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
DIM600DDM12-A | Dual | 1200 | 600 | 85 | 2,2 | 200 | 24 | 140 x 130 | 2.5kV | DNPT |
DIM400DDM12-A | Dual | 1200 | 400 | 85 | 2,2 | 120 | 36 | 140 x 130 | 2.5kV | DNPT |
DIM800DCM12-A | Chopper | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
Copper Baseplate | ||||||||||
DIM1600FSS12-A | Single | 1200 | 1600 | 85 | 2,2 | 500 | 9 | 140 x 130 | 2.5kV | DNPT |
DIM1200FSS12-A | Single | 1200 | 1200 | 85 | 2,2 | 400 | 12 | 140 x 130 | 2.5kV | DNPT |
DIM800FSS12-A | Single | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
DIM800DDS12-A | Dual | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
DIM600DDS12-A | Dual | 1200 | 600 | 85 | 2,2 | 200 | 24 | 140 x 130 | 2.5kV | DNPT |
DIM400DDS12-A | Dual | 1200 | 400 | 85 | 2,2 | 120 | 36 | 140 x 130 | 2.5kV | DNPT |
DIM800DCS12-A | Chopper | 1200 | 800 | 85 | 2,2 | 280 | 18 | 140 x 130 | 2.5kV | DNPT |
1700 V | ||||||||||
DNPT Range | ||||||||||
DIM2400ESM17-A | Single | 1700 | 2400 | 75 | 2,7 | 1950 | 6 | 190 x 140 | 4 kV | DNPT |
DIM1600FSM17-A | Single | 1700 | 1600 | 75 | 2,7 | 1250 | 9 | 140 x 130 | 4 kV | DNPT |
DIM1200FSM17-A | Single | 1700 | 1200 | 75 | 2,7 | 1000 | 12 | 140 x 130 | 4 kV | DNPT |
DIM800FSM17-A | Single | 1700 | 800 | 75 | 2,7 | 700 | 18 | 140 x 130 | 4 kV | DNPT |
DIM800DDM17-A | Dual | 1700 | 800 | 75 | 2,7 | 700 | 18 | 140 x 130 | 4 kV | DNPT |
DIM600DDM17-A | Dual | 1700 | 600 | 75 | 2,7 | 620 | 24 | 140 x 130 | 4 kV | DNPT |
DIM400DDM17-A | Dual | 1700 | 400 | 75 | 2,7 | 350 | 36 | 140 x 130 | 4 kV | DNPT |
DIM1600ECM17-A | Chopper | 1700 | 1600 | 75 | 2,7 | 1250 | 9 | 190 x 140 | 4 kV | DNPT |
DIM800DCM17-A | Chopper | 1700 | 800 | 75 | 2,7 | 785 | 18 | 140 x 130 | 4 kV | DNPT |
DIM600DCM17-A | Chopper | 1700 | 600 | 75 | 2,7 | 620 | 24 | 140 x 130 | 4 kV | DNPT |
DIM400DCM17-A | Chopper | 1700 | 400 | 75 | 2,7 | 350 | 36 | 140 x 130 | 4 kV | DNPT |
DIM400PHM17-A | Half Bridge | 1700 | 400 | 75 | 2,7 | 350 | 36 | 140 x 73 | 4 kV | DNPT |
DIM400PBM17-A | Bi-directional | 1700 | 400 | 75 | 4.9* | 350 | 36 | 140 x 73 | 4 kV | DNPT |
TSPT Range | ||||||||||
TG450HF17M1-S300 | Half Bridge | 1700 | 450 | 85 | 1,8 | 276 | 55 | 122 x 62 | 3.4 kV | TSPT |
TG1000HF17H1-S300 | Half Bridge | 1700 | 1000 | 100 | 1,85 | 745 | 20 | 250 x 89 | 4 kV | TSPT |
TIM800DDM17-TS000 | Dual | 1700 | 800 | 80 | 2,3 | 520 | 18 | 140 x 130 | 4 kV | TSPT |
TIM1200DDM17-TS000 | Dual | 1700 | 1200 | 75 | 1,8 | 756 | 22 | 140 x 130 | 4 kV | TSPT |
3300 V | ||||||||||
d2 MS Range | ||||||||||
DIM1500ESM33-MS000 | Single | 3300 | 1500 | 120 | 2,2 | 8200 | 7 | 190 x 140 | 6kV | d2 |
DIM1000ECM33-MS000 | Chopper | 3300 | 1000 | 120 | 2,2 | 5100 | 12 | 190 x 140 | 6kV | d2 |
d2 TS Range (standard) | ||||||||||
DIM1500ESM33-TS | Single | 3300 | 1500 | 110 | 2,2 | 6200 | 8 | 190 x 140 | 6kV | d2 |
DIM1500ASM33-TS001 | Single | 3300 | 1500 | 110 | 2,2 | 6200 | 8 | 190 x 140 | 10.2kV | d2 |
DIM1000NSM33-TS | Single | 3300 | 1000 | 110 | 2,2 | 3850 | 12 | 140 x 130 | 6kV | d2 |
DIM1000XSM33-TS001 | Single | 3300 | 1000 | 110 | 2,2 | 3850 | 12 | 140 x 130 | 10.2kV | d2 |
DIM500GDM33-TS | Dual | 3300 | 500 | 110 | 2,2 | 2100 | 24 | 140 x 130 | 6kV | d2 |
DIM1000ECM33-TS | Chopper | 3300 | 1000 | 110 | 2,2 | 3850 | 12 | 190 x 140 | 6kV | d2 |
DIM1000ACM33-TS001 | Chopper | 3300 | 1000 | 110 | 2,2 | 4300 | 12 | 190 x 140 | 10.2kV | d2 |
DIM500GCM33-TS | Chopper | 3300 | 500 | 110 | 2,2 | 2100 | 24 | 140 x 130 | 6kV | d2 |
DIM250PKM33-TS | Chopper | 3300 | 250 | 110 | 2,2 | 1040 | 48 | 140 x 73 | 6kV | d2 |
DIM250PLM33-TS | Chopper | 3300 | 250 | 110 | 2,2 | 1040 | 48 | 140 x 73 | 6kV | d2 |
DIM250PHM33-TS | Half Bridge | 3300 | 250 | 110 | 2,2 | 1040 | 48 | 140 x 73 | 6kV | d2 |
d2 TL Range (low conduction losses) | ||||||||||
DIM1500ESM33-TL | Single | 3300 | 1500 | 115 | 2 | 7800 | 8 | 190 x 140 | 6 kV | |
DIM1500ASM33-TL001 | Single | 3300 | 1500 | 115 | 2 | 7800 | 8 | 190 x 140 | 10.2 kV | d2 |
DIM1000NSM33-TL | Single | 3300 | 1000 | 115 | 2 | 4840 | 12 | 140 x 130 | 6 kV | d2 |
DIM1000XSM33-TL001 | Single | 3300 | 1000 | 115 | 2 | 4840 | 12 | 140 x 130 | 10.2 kV | d2 |
DIM500GDM33-TL | Dual | 3300 | 500 | 115 | 2 | 2650 | 24 | 140 x 130 | 6 kV | d2 |
DIM1000ECM33-TL | Chopper | 3300 | 1000 | 115 | 2 | 4840 | 12 | 190 x 140 | 6 kV | d2 |
DIM1000ACM33-TL001 | Chopper | 3300 | 1000 | 115 | 2 | 4840 | 12 | 190 x 140 | 10.2 kV | d2 |
DIM500GCM33-TL | Chopper | 3300 | 500 | 115 | 2 | 2650 | 24 | 140 x 130 | 6 kV | d2 |
DIM250PKM33-TL | Chopper | 3300 | 250 | 115 | 2 | 1300 | 48 | 140 x 73 | 6 kV | d2 |
DIM250PLM33-TL | Chopper | 3300 | 250 | 115 | 2 | 1300 | 48 | 140 x 73 | 6 kV | d2 |
DIM250PHM33-TL | Half Bridge | 3300 | 250 | 115 | 2 | 1300 | 48 | 140 x 73 | 6 kV | d2 |
4500 V | ||||||||||
d2 TS Range (standard) | ||||||||||
DIM1200ASM45-TS | Single | 4500 | 1200 | 90 | 2,7 | 11100 | 8 | 190 x 140 | 7.4 kV | d2 |
DIM1200ASM45-TS001 | Single | 4500 | 1200 | 90 | 2,7 | 11100 | 8 | 190 x 140 | 10.2 kV | d2 |
DIM800XSM45-TS | Single | 4500 | 800 | 90 | 2,7 | 7400 | 12 | 140 x 130 | 7.4 kV | d2 |
DIM800XSM45-TS001 | Single | 4500 | 800 | 90 | 2,7 | 7400 | 12 | 140 x 130 | 10.2 kV | d2 |
DIM400XCM45-TS | Chopper | 4500 | 400 | 90 | 2,7 | 3800 | 24 | 140 x 130 | 7.4 kV | d2 |
DIM400XCM45-TS001 | Chopper | 4500 | 400 | 90 | 2,7 | 3800 | 24 | 140 x 130 | 10.2 kV | d2 |
DIM400XSM45-TS | Single | 4500 | 400 | 90 | 2,7 | 3800 | 24 | 140 x 130 | 7.4 kV | d2 |
DIM400XSM45-TS001 | Single | 4500 | 400 | 90 | 2,7 | 3800 | 24 | 140 x 130 | 10.2 kV | d2 |
d2 TL Range (low conduction losses) | ||||||||||
DIM1200ASM45-TL | Single | 4500 | 1200 | 90 | 2,3 | 13650 | 8 | 190 x 140 | 7.4 kV | d2 |
DIM1200ASM45-TL001 | Single | 4500 | 1200 | 90 | 2,3 | 13650 | 8 | 190 x 140 | 10.2 kV | d2 |
DIM800XSM45-TL | Single | 4500 | 800 | 90 | 2,3 | 9100 | 12 | 140 x 130 | 7.4 kV | d2 |
DIM800XSM45-TL001 | Single | 4500 | 800 | 90 | 2,3 | 9100 | 12 | 140 x 130 | 10.2 kV | d2 |
Press-pack | ||||||||||
DPI1600P45C | Co-Pack | 4500 | 1600 | 90 | 2,5 | 17100 | 6,4 | 170/125/26.5 | - | d2 |
DPI2100P45A | All IGBT | 4500 | 2100 | 95 | 2,4 | 19800 | 4,4 | 170/125/26.5 | - | d2 |
6500 V | ||||||||||
d2 Range | ||||||||||
DIM750ASM65-TS | Single | 6500 | 750 | 90 | 3 | 10300 | 8 | 190 x 140 | 10.2 kV | d2 |
DIM500XSM65-TS | Single | 6500 | 500 | 90 | 3 | 7000 | 12 | 140 x 130 | 10.2 kV | d2 |
DIM500ACM65-TS | Chopper | 6500 | 500 | 90 | 3 | 7000 | 12 | 190 x 140 | 10.2 kV | d2 |
DIM250XCM65-TS | Chopper | 6500 | 250 | 90 | 3 | 3500 | 24 | 140 x 130 | 10.2 kV | d2 |
TSPT UF Range (low switching losses) | ||||||||||
DIM1000ASM65-UF000 | Single | 6500 | 1000 | 90 | 3,1 | 13800 | 8 | 190 x 140 | 10.2 kV | TSPT |
Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?
