Gyártó: A D METRO

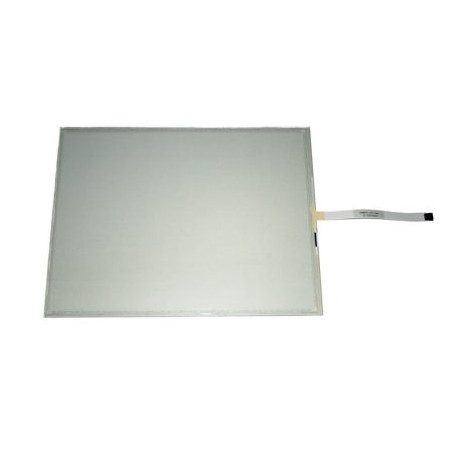

ULTRA Resistive touch screen

ULTRA is a line of durable resistive touchscreens from AD METRO, designed to operate in harsh environments. Thanks to a patented thin-glass lamination process, the resistive touchscreen uses a flexible, pressure-activated membrane, creating a Glass/Film/Glass (GFG) solution with exceptional performance. This resistive touch panel combines the operational reliability of resistive technology with the durability of a glass surface, offering longevity and scratch resistance.

With the ability to be operated by finger, stylus, or even gloved hand, the ULTRA resistive touchscreen is ideal for military, industrial, and medical applications where precision and reliability are critical. AD METRO's resistive screens provide durability and resistance to harsh weather conditions and chemicals, making them ideal for outdoor applications and use in environments exposed to contaminants.

Product Features:

  • Operable by finger, stylus, or gloved hand
  • Waterproof surface, allowing operation in harsh conditions
  • Chemical and mechanical resistance, including scratch resistance
  • 6.5 Mohs hardness for maximum durability
  • Over 200 million touches for long-lasting performance
  • Extended operating temperature range
  • Resistive touch panels available in sizes from 3.5" to 24"

Applications:

  • Military
  • Aerospace
  • Industrial
  • Healthcare
  • POS / Kiosks

Size From 3.5" to 24"
Type 5-wire, 4-wire, or 8-wire
Operation Finger, Stylus, Glove
Activation Force <80g
Surface Hardness 6.5 Mohs
Temperature Range "Operating Temp: -35°C to +80°C*
Storage Temp: -40°C to +85°C*"
Enclosure Compatibility "NEMA 4, 6, 12
IP65, IP67" IP65, IP67"
Transmittance ≥84%
Lifespan "5-wire: >200 million
4/8-wire: > 20 million"
