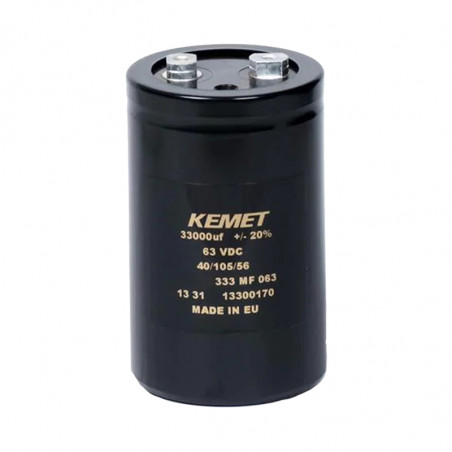

Seria ALS40/41, +105°C
  • Seria ALS40/41, +105°C

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: KEMET

Seria ALS40/41, +105°C

Sposób oznaczania

ALS4 0 A 153 DA 025
Seria Sposób mocowania Rodzaj wyprowadzeń śrubowych Kod pojemności [µF] Kod obudowy Napięcie znamionowe [VDC]
Screw Terminal Aluminum Electrolytic 2 = Bez śruby
mocującej
3 = Śruba mocująca		 Patrz tabela Pierwsze dwie cyfry - wartość pojemności
Trzecia - ilość zer		 Patrz tabela 025=25
040 = 40
063 = 63
100 = 100
160 = 160
200 = 200		 250 = 250
350 = 350
400 = 400
415 = 415
450 = 450
500 = 500


Item Cechy szczególne
Zakres pojemności 150 – 680,000 µF
Zakres napięcia 25 – 500 VDC
Temperatura pracy -40 to +105°C
Temperatura składowania -55 to +105°C
Tolerancja pojemności ±20% at 100 Hz / +20°C
Czas życia D (mm) UN i IR w +105°C (h) UN w +105°C (h)
36 6,000 10,000
51 7,000 11,000
66 8,000 13,000
77,90 9,000 15,000
Czas składowania 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
Normy IEC 60384–4 long


Warunki VDC [V]
25 40 63 100 200 250 350 400 415 450 500
Udar ≤ 30s bez obciążenia
w okresie 330s, 1,000 cykli w temperaturze +85°C		 28.75 46 72.45 115 230 287.5 385 440 456.5 495 550
Udar ≤ 500 ms, 100 cykli
w temp. 20°C, losowo
w ciągu czasu życia kondesatora		         350 400 500 520 530 550 600


VN VDC CN Obudowa Wymiary Prąd tętnień ESR Max Impedancja Max Typ
100 Hz  20°C (µF) D x L (mm) 100 Hz 105°C (A) 10 kHz 105°C (A) 100 Hz 20°C (mΩ) 10 kHz20°C (mΩ)
25 15000 DA 36 x 52 6.9 7.3 24 20 ALS4(1)(2)153DA025
25 22000 DB 36 x 62 8.4 8.8 17 15 ALS4(1)(2)223DB025
25 33000 DE 36 x 82 11.1 11.7 11 10 ALS4(1)(2)333DE025
25 47000 DF 36 x 105 14.0 14.7 9 8 ALS4(1)(2)473DF025
25 68000 KE 51 x 82 12.0 12.2 13 12 ALS4(1)(2)683KE025
25 100000 KF 51 x 105 16.4 16.7 9 8 ALS4(1)(2)104KF025
25 150000 ND 77 x 75 13.7 13.8 13 13 ALS4(1)(2)154ND025
25 150000 MF 66 x 105 23.8 24.1 6 6 ALS4(1)(2)154MF025
25 150000 QD 90 x 75 18.7 18.8 10 10 ALS4(1)(2)154QD025
25 220000 QC 90 x 67 18.6 19.2 9 8 ALS4(1)(2)224QC025
25 220000 NF 77 x 105 22.3 22.4 8 7 ALS4(1)(2)224NF025
25 330000 QH 90 x 98 22.3 22.4 8 8 ALS4(1)(2)334QH025
25 330000 NP 77 x 146 31.0 31.1 5 5 ALS4(1)(2)334NP025
25 470000 QP 90 x 146 36.9 37.1 4 4 ALS4(1)(2)474QP025
25 470000 NT 77 x 220 38.9 39.8 4 4 ALS4(1)(2)474NT025
25 680000 QT 90 x 220 47.0 48.1 4 3 ALS4(1)(2)684QT025
40 10000 DA 36 x 52 6.6 6.9 23 19 ALS4(1)(2)103DA040
40 10000 DB 36 x 62 8.1 8.7 19 16 ALS4(1)(2)103DB040
40 15000 DE 36 x 82 10.8 11.6 13 10 ALS4(1)(2)153DE040
40 22000 DF 36 x 105 13.6 14.5 10 8 ALS4(1)(2)223DF040
40 33000 KE 51 x 82 11.7 12.0 13 12 ALS4(1)(2)333KE040
40 47000 KF 51 x 105 16.2 16.6 9 8 ALS4(1)(2)473KF040
40 68000 ND 77 x 75 13.9 14.0 13 13 ALS4(1)(2)683ND040
40 100000 MF 66 x 105 20.6 20.8 7 7 ALS4(1)(2)104MF040
40 100000 QC 90 x 67 17.7 18.5 10 9 ALS4(1)(2)104QC040
40 100000 QD 90 x 75 16.0 16.1 12 11 ALS4(1)(2)104QD040
40 100000 NF 77 x 105 22.4 22.7 7 7 ALS4(1)(2)104NF040
40 150000 QH 90 x 98 22.6 22.8 8 8 ALS4(1)(2)154QH040
40 150000 NP 77 x 146 31.3 31.6 5 5 ALS4(1)(2)154NP040
40 220000 QP 90 x 146 36.8 37.1 4 4 ALS4(1)(2)224QP040
40 220000 NT 77 x 220 37.7 39.2 4 4 ALS4(1)(2)224NT040
40 330000 QT 90 x 220 45.6 47.0 4 4 ALS4(1)(2)334QT040
63 3300 DA 36 x 52 5.5 6.2 38 30 ALS4(1)(2)332DA063
63 4700 DB 36 x 62 6.7 7.5 27 22 ALS4(1)(2)472DB063
63 6800 DE 36 x 82 8.9 10.0 19 15 ALS4(1)(2)682DE063
63 10000 DF 36 x 105 11.2 12.6 13 10 ALS4(1)(2)103DF063
63 15000 KE 51 x 82 10.7 11.2 16 15 ALS4(1)(2)153KE063
63 22000 KF 51 x 105 14.7 15.3 11 10 ALS4(1)(2)223KF063
63 22000 ND 77 x 75 14.6 15.1 14 12 ALS4(1)(2)223ND063
63 33000 MF 66 x 105 21.3 22.2 8 7 ALS4(1)(2)333MF063
63 33000 QC 90 x 67 18.1 20.1 10 8 ALS4(1)(2)333QC063
63 33000 QD 90 x 75 17.1 17.5 11 11 ALS4(1)(2)333QD063
63 47000 NF 77 x 105 20.7 21.1 9 8 ALS4(1)(2)473NF063
63 47000 QH 90 x 98 24.4 25.1 8 7 ALS4(1)(2)473QH063
63 68000 NP 77 x 146 29.1 29.8 6 6 ALS4(1)(2)683NP063
63 100000 QP 90 x 146 34.5 35.2 5 5 ALS4(1)(2)104QP063
63 100000 NT 77 x 220 36.7 38.8 4 4 ALS4(1)(2)104NT063
63 150000 QT 90 x 220 44.4 46.5 4 4 ALS4(1)(2)154QT063
100 1500 DA 36 x 52 3.9 4.5 79 62 ALS4(1)(2)152DA100
100 2200 DB 36 x 62 4.8 5.5 56 44 ALS4(1)(2)222DB100
100 3300 DE 36 x 82 6.4 7.4 37 29 ALS4(1)(2)332DE100
100 4700 DF 36 x 105 8.1 9.3 26 21 ALS4(1)(2)472DF100
100 6800 KE 51 x 82 8.0 8.4 32 28 ALS4(1)(2)682KE100
100 10000 KF 51 x 105 10.9 11.5 21 18 ALS4(1)(2)103KF100
100 15000 ND 77 x 75 9.7 9.9 28 26 ALS4(1)(2)153ND100
100 15000 MF 66 x 105 15.8 16.7 14 12 ALS4(1)(2)153MF100
100 15000 QD 90 x 75 12.9 13.4 20 18 ALS4(1)(2)153QD100
100 22000 QC 90 x 67 14.3 15.2 17 16 ALS4(1)(2)223QC100
100 22000 NF 77 x 105 15.5 16.0 15 13 ALS4(1)(2)223NF100
100 22000 QH 90 x 98 18.4 19.0 13 11 ALS4(1)(2)223QH100
100 33000 NP 77 x 146 21.6 22.2 10 10 ALS4(1)(2)333NP100
100 47000 QP 90 x 146 25.9 26.5 9 8 ALS4(1)(2)473QP100
100 47000 NT 77 x 220 35.4 36.6 7 6 ALS4(1)(2)473NT100
100 100000 QT 90 x 220 37.2 37.9 6 6 ALS4(1)(2)104QT100
200 680 DA 36 x 52 2.9 4.0 195 154 ALS4(1)(2)681DA200
200 680 DB 36 x 62 3.3 4.6 188 147 ALS4(1)(2)681DB200
200 1000 DE 36 x 82 4.3 6.1 128 100 ALS4(1)(2)102DE200
200 1500 DF 36 x 105 5.6 7.8 86 67 ALS4(1)(2)152DF200
200 2200 KE 51 x 82 6.8 8.0 71 58 ALS4(1)(2)222KE200
200 3300 KF 51 x 105 9.1 10.9 47 38 ALS4(1)(2)332KF200
200 4700 ND 77 x 75 8.7 9.4 48 42 ALS4(1)(2)472ND200
200 6800 MF 66 x 105 12.9 14.5 27 23 ALS4(1)(2)682MF200
200 6800 QC 90 x 67 11.8 15.9 37 28 ALS4(1)(2)682QC200
200 6800 QD 90 x 75 10.9 11.7 36 32 ALS4(1)(2)682QD200
200 6800 NF 77 x 105 13.4 14.8 29 25 ALS4(1)(2)682NF200
200 10000 QH 90 x 98 15.4 16.6 23 20 ALS4(1)(2)103QH200
200 10000 NP 77 x 146 19.3 21.5 19 16 ALS4(1)(2)103NP200
200 15000 QP 90 x 146 24.2 26.5 14 12 ALS4(1)(2)153QP200
200 22000 NT 77 x 220 29.5 31.6 11 10 ALS4(1)(2)223NT200
200 33000 QT 90 x 220 34.3 36.4 10 8 ALS4(1)(2)333QT200
250 470 DA 36 x 52 2.5 3.9 235 174 ALS4(1)(2)471DA250
250 680 DB 36 x 62 3.2 4.8 164 122 ALS4(1)(2)681DB250
250 1000 DE 36 x 82 4.2 6.3 111 83 ALS4(1)(2)102DE250
250 1000 DF 36 x 105 4.7 7.5 108 79 ALS4(1)(2)102DF250
250 1500 KE 51 x 82 6.2 8.2 83 64 ALS4(1)(2)152KE250
250 2200 KF 51 x 105 8.3 11.1 56 42 ALS4(1)(2)222KF250
250 3300 ND 77 x 75 8.5 9.7 52 42 ALS4(1)(2)332ND250
250 4700 MF 66 x 105 12.3 15.0 30 24 ALS4(1)(2)472MF250
250 4700 QC 90 x 67 10.9 16.3 42 30 ALS4(1)(2)472QC250
250 4700 QD 90 x 75 10.7 12.1 38 32 ALS4(1)(2)472QD250
250 6800 NF 77 x 105 12.1 13.4 30 25 ALS4(1)(2)682NF250
250 6800 QH 90 x 98 15.1 17.3 25 20 ALS4(1)(2)682QH250
250 10000 NP 77 x 146 17.5 19.5 19 16 ALS4(1)(2)103NP250
250 15000 QP 90 x 146 21.9 23.9 14 12 ALS4(1)(2)153QP250
250 15000 NT 77 x 220 29.2 33.0 12 10 ALS4(1)(2)153NT250
250 22000 QT 90 x 220 34.1 38.2 11 9 ALS4(1)(2)223QT250
350 220 DA 36 x 52 1.8 4.5 457 303 ALS4(1)(2)221DA350
350 330 DB 36 x 62 2.4 5.7 307 204 ALS4(1)(2)331DB350
350 470 DE 36 x 82 3.0 7.2 215 143 ALS4(1)(2)471DE350
350 680 DF 36 x 105 3.9 8.9 149 99 ALS4(1)(2)681DF350
350 1000 KE 51 x 82 5.0 10.0 113 78 ALS4(1)(2)102KE350
350 1500 KF 51 x 105 6.8 12.5 75 52 ALS4(1)(2)152KF350
350 2200 ND 77 x 75 8.3 13.7 66 49 ALS4(1)(2)222ND350
350 2200 MF 66 x 105 9.8 17.9 51 35 ALS4(1)(2)222MF350
350 2200 QC 90 x 67 9.1 16.4 74 52 ALS4(1)(2)222QC350
350 2200 QD 90 x 75 9.4 17.8 56 40 ALS4(1)(2)222QD350
350 3300 NF 77 x 105 11.7 19.7 41 30 ALS4(1)(2)332NF350
350 4700 QH 90 x 98 14.6 23.2 31 23 ALS4(1)(2)472QH350
350 4700 NP 77 x 146 15.7 23.6 27 20 ALS4(1)(2)472NP350
350 6800 QP 90 x 146 20.3 29.7 19 14 ALS4(1)(2)682QP350
350 6800 NT 77 x 220 25.4 35.7 23 17 ALS4(1)(2)682NT350
350 10000 QT 90 x 220 31.0 42.7 21 16 ALS4(1)(2)103QT350
400 220 DA 36 x 52 2.0 4.9 542 349 ALS4(1)(2)221DA400
400 220 DB 36 x 62 2.1 5.4 537 344 ALS4(1)(2)221DB400
400 470 DE 36 x 82 3.2 7.8 254 164 ALS4(1)(2)471DE400
400 470 DF 36 x 105 3.5 8.5 251 161 ALS4(1)(2)471DF400
400 680 KE 51 x 82 4.2 9.8 183 121 ALS4(1)(2)681KE400
400 1000 KF 51 x 105 5.6 12.3 124 81 ALS4(1)(2)102KF400
400 1500 ND 77 x 75 7.6 13.9 93 64 ALS4(1)(2)152ND400
400 2200 MF 66 x 105 9.7 18.1 60 41 ALS4(1)(2)222MF400
400 2200 QC 90 x 67 9.4 15.9 63 44 ALS4(1)(2)222QC400
400 2200 QD 90 x 75 10.0 17.5 67 47 ALS4(1)(2)222QD400
400 2200 NF 77 x 105 10.6 19.8 62 42 ALS4(1)(2)222NF400
400 3300 QH 90 x 98 13.6 23.4 44 31 ALS4(1)(2)332QH400
400 4700 NP 77 x 146 15.4 22.6 33 23 ALS4(1)(2)472NP400
400 6800 QP 90 x 146 20.0 28.3 23 17 ALS4(1)(2)682QP400
400 6800 NT 77 x 220 23.5 33.3 21 15 ALS4(1)(2)682NT400
400 10000 QT 90 x 220 29.0 40.3 18 14 ALS4(1)(2)103QT400
415 220 DA 36 x 52 2.0 5.0 530 331 ALS4(1)(2)221DA415
415 220 DB 36 x 62 2.1 5.4 524 325 ALS4(1)(2)221DB415
415 330 DE 36 x 82 2.8 7.1 349 217 ALS4(1)(2)331DE415
415 470 DF 36 x 105 3.5 8.7 245 152 ALS4(1)(2)471DF415
415 680 KE 51 x 82 4.4 9.9 180 115 ALS4(1)(2)681KE415
415 1000 KF 51 x 105 5.8 12.3 122 77 ALS4(1)(2)102KF415
415 1500 ND 77 x 75 7.6 13.8 95 65 ALS4(1)(2)152ND415
415 2200 MF 66 x 105 9.7 18.1 60 39 ALS4(1)(2)222MF415
415 2200 QC 90 x 67 9.4 15.8 61 43 ALS4(1)(2)222QC415
415 2200 QD 90 x 75 10.0 17.3 67 47 ALS4(1)(2)222QD415
415 2200 NF 77 x 105 10.7 19.7 61 41 ALS4(1)(2)222NF415
415 3300 QH 90 x 98 13.6 23.3 44 30 ALS4(1)(2)332QH415
415 3300 NP 77 x 146 14.2 23.6 40 27 ALS4(1)(2)332NP415
415 4700 QP 90 x 146 18.5 29.8 29 19 ALS4(1)(2)472QP415
415 6800 NT 77 x 220 23.0 32.5 21 14 ALS4(1)(2)682NT415
415 10000 QT 90 x 220 28.3 39.3 18 14 ALS4(1)(2)103QT415
450 150 DA 36 x 52 1.8 4.5 721 360 ALS4(1)(2)151DA450
450 150 DB 36 x 62 1.9 4.8 715 356 ALS4(1)(2)151DB450
450 220 DE 36 x 82 2.5 6.2 487 242 ALS4(1)(2)221DE450
450 330 DF 36 x 105 3.2 7.9 325 162 ALS4(1)(2)331DF450
450 470 KE 51 x 82 4.1 9.0 239 123 ALS4(1)(2)471KE450
450 680 KF 51 x 105 5.3 11.3 164 84 ALS4(1)(2)681KF450
450 1000 ND 77 x 75 7.0 13.2 125 69 ALS4(1)(2)102ND450
450 1500 MF 66 x 105 8.9 17.1 79 42 ALS4(1)(2)152MF450
450 1500 QC 90 x 67 8.7 15.3 78 57 ALS4(1)(2)152QC450
450 1500 QD 90 x 75 9.3 16.7 87 49 ALS4(1)(2)152QD450
450 1500 NF 77 x 105 9.8 18.7 80 43 ALS4(1)(2)152NF450
450 2200 QH 90 x 98 12.5 22.5 58 32 ALS4(1)(2)222QH450
450 2200 NP 77 x 146 13.1 22.9 54 29 ALS4(1)(2)222NP450
450 3300 NP 77 x 146 14.6 22.0 38 27 ALS4(1)(2)332NP450
450 3300 QP 90 x 146 14.2 28.9 37 20 ALS4(1)(2)332QP450
450 4700 NT 77 x 220 21.9 32.0 27 15 ALS4(1)(2)472NT450
450 6800 QT 90 x 220 23.5 39.2 19 15 ALS4(1)(2)682QT450
500 220 DA 36 x 52 2.1 4.3 1000 810 ALS4(1)(2)221DA500
500 220 DB 36 x 62 2.1 4.4 1000 808 ALS4(1)(2)221DB500
500 330 DE 36 x 82 2.6 5.5 670 540 ALS4(1)(2)331DE500
500 470 DF 36 x 105 3.2 6.4 470 380 ALS4(1)(2)471DF500
500 680 KE 51 x 82 4.7 8.8 338 270 ALS4(1)(2)681KE500
500 1000 KF 51 x 105 5.7 10.6 230 187 ALS4(1)(2)102KF500
500 1500 ND 77 x 75 8.0 13.2 160 130 ALS4(1)(2)152ND500
500 2200 NF 77 x 105 10.2 17.1 110 90 ALS4(1)(2)222NF500
500 3300 NP 77 x 146 13.1 20.2 82 68 ALS4(1)(2)332NP500
500 4700 NT 77 x 220 15.3 22.9 60 48 ALS4(1)(2)472NT500
500 1500 QC 90 x 67 8.4 14.0 160 130 ALS4(1)(2)152QC500
500 2200 QD 90 x 75 10.2 16.3 112 90 ALS4(1)(2)222QD500
500 3300 QH 90 x 98 13.1 20.3 75 60 ALS4(1)(2)332QH500
500 3300 QP 90 x 146 14.1 23.4 80 66 ALS4(1)(2)332QP500
500 6800 QT 90 x 220 20.0 29.3 41 34 ALS4(1)(2)682QT500
Kevésbé
Olvass tovább

Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen
Kérelem beküldése

Add to wishlist

Musisz być zalogowany/a

Sposób oznaczania

ALS4 0 A 153 DA 025
Seria Sposób mocowania Rodzaj wyprowadzeń śrubowych Kod pojemności [µF] Kod obudowy Napięcie znamionowe [VDC]
Screw Terminal Aluminum Electrolytic 2 = Bez śruby
mocującej
3 = Śruba mocująca		 Patrz tabela Pierwsze dwie cyfry - wartość pojemności
Trzecia - ilość zer		 Patrz tabela 025=25
040 = 40
063 = 63
100 = 100
160 = 160
200 = 200		 250 = 250
350 = 350
400 = 400
415 = 415
450 = 450
500 = 500


Item Cechy szczególne
Zakres pojemności 150 – 680,000 µF
Zakres napięcia 25 – 500 VDC
Temperatura pracy -40 to +105°C
Temperatura składowania -55 to +105°C
Tolerancja pojemności ±20% at 100 Hz / +20°C
Czas życia D (mm) UN i IR w +105°C (h) UN w +105°C (h)
36 6,000 10,000
51 7,000 11,000
66 8,000 13,000
77,90 9,000 15,000
Czas składowania 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
Normy IEC 60384–4 long


Warunki VDC [V]
25 40 63 100 200 250 350 400 415 450 500
Udar ≤ 30s bez obciążenia
w okresie 330s, 1,000 cykli w temperaturze +85°C		 28.75 46 72.45 115 230 287.5 385 440 456.5 495 550
Udar ≤ 500 ms, 100 cykli
w temp. 20°C, losowo
w ciągu czasu życia kondesatora		         350 400 500 520 530 550 600


VN VDC CN Obudowa Wymiary Prąd tętnień ESR Max Impedancja Max Typ
100 Hz  20°C (µF) D x L (mm) 100 Hz 105°C (A) 10 kHz 105°C (A) 100 Hz 20°C (mΩ) 10 kHz20°C (mΩ)
25 15000 DA 36 x 52 6.9 7.3 24 20 ALS4(1)(2)153DA025
25 22000 DB 36 x 62 8.4 8.8 17 15 ALS4(1)(2)223DB025
25 33000 DE 36 x 82 11.1 11.7 11 10 ALS4(1)(2)333DE025
25 47000 DF 36 x 105 14.0 14.7 9 8 ALS4(1)(2)473DF025
25 68000 KE 51 x 82 12.0 12.2 13 12 ALS4(1)(2)683KE025
25 100000 KF 51 x 105 16.4 16.7 9 8 ALS4(1)(2)104KF025
25 150000 ND 77 x 75 13.7 13.8 13 13 ALS4(1)(2)154ND025
25 150000 MF 66 x 105 23.8 24.1 6 6 ALS4(1)(2)154MF025
25 150000 QD 90 x 75 18.7 18.8 10 10 ALS4(1)(2)154QD025
25 220000 QC 90 x 67 18.6 19.2 9 8 ALS4(1)(2)224QC025
25 220000 NF 77 x 105 22.3 22.4 8 7 ALS4(1)(2)224NF025
25 330000 QH 90 x 98 22.3 22.4 8 8 ALS4(1)(2)334QH025
25 330000 NP 77 x 146 31.0 31.1 5 5 ALS4(1)(2)334NP025
25 470000 QP 90 x 146 36.9 37.1 4 4 ALS4(1)(2)474QP025
25 470000 NT 77 x 220 38.9 39.8 4 4 ALS4(1)(2)474NT025
25 680000 QT 90 x 220 47.0 48.1 4 3 ALS4(1)(2)684QT025
40 10000 DA 36 x 52 6.6 6.9 23 19 ALS4(1)(2)103DA040
40 10000 DB 36 x 62 8.1 8.7 19 16 ALS4(1)(2)103DB040
40 15000 DE 36 x 82 10.8 11.6 13 10 ALS4(1)(2)153DE040
40 22000 DF 36 x 105 13.6 14.5 10 8 ALS4(1)(2)223DF040
40 33000 KE 51 x 82 11.7 12.0 13 12 ALS4(1)(2)333KE040
40 47000 KF 51 x 105 16.2 16.6 9 8 ALS4(1)(2)473KF040
40 68000 ND 77 x 75 13.9 14.0 13 13 ALS4(1)(2)683ND040
40 100000 MF 66 x 105 20.6 20.8 7 7 ALS4(1)(2)104MF040
40 100000 QC 90 x 67 17.7 18.5 10 9 ALS4(1)(2)104QC040
40 100000 QD 90 x 75 16.0 16.1 12 11 ALS4(1)(2)104QD040
40 100000 NF 77 x 105 22.4 22.7 7 7 ALS4(1)(2)104NF040
40 150000 QH 90 x 98 22.6 22.8 8 8 ALS4(1)(2)154QH040
40 150000 NP 77 x 146 31.3 31.6 5 5 ALS4(1)(2)154NP040
40 220000 QP 90 x 146 36.8 37.1 4 4 ALS4(1)(2)224QP040
40 220000 NT 77 x 220 37.7 39.2 4 4 ALS4(1)(2)224NT040
40 330000 QT 90 x 220 45.6 47.0 4 4 ALS4(1)(2)334QT040
63 3300 DA 36 x 52 5.5 6.2 38 30 ALS4(1)(2)332DA063
63 4700 DB 36 x 62 6.7 7.5 27 22 ALS4(1)(2)472DB063
63 6800 DE 36 x 82 8.9 10.0 19 15 ALS4(1)(2)682DE063
63 10000 DF 36 x 105 11.2 12.6 13 10 ALS4(1)(2)103DF063
63 15000 KE 51 x 82 10.7 11.2 16 15 ALS4(1)(2)153KE063
63 22000 KF 51 x 105 14.7 15.3 11 10 ALS4(1)(2)223KF063
63 22000 ND 77 x 75 14.6 15.1 14 12 ALS4(1)(2)223ND063
63 33000 MF 66 x 105 21.3 22.2 8 7 ALS4(1)(2)333MF063
63 33000 QC 90 x 67 18.1 20.1 10 8 ALS4(1)(2)333QC063
63 33000 QD 90 x 75 17.1 17.5 11 11 ALS4(1)(2)333QD063
63 47000 NF 77 x 105 20.7 21.1 9 8 ALS4(1)(2)473NF063
63 47000 QH 90 x 98 24.4 25.1 8 7 ALS4(1)(2)473QH063
63 68000 NP 77 x 146 29.1 29.8 6 6 ALS4(1)(2)683NP063
63 100000 QP 90 x 146 34.5 35.2 5 5 ALS4(1)(2)104QP063
63 100000 NT 77 x 220 36.7 38.8 4 4 ALS4(1)(2)104NT063
63 150000 QT 90 x 220 44.4 46.5 4 4 ALS4(1)(2)154QT063
100 1500 DA 36 x 52 3.9 4.5 79 62 ALS4(1)(2)152DA100
100 2200 DB 36 x 62 4.8 5.5 56 44 ALS4(1)(2)222DB100
100 3300 DE 36 x 82 6.4 7.4 37 29 ALS4(1)(2)332DE100
100 4700 DF 36 x 105 8.1 9.3 26 21 ALS4(1)(2)472DF100
100 6800 KE 51 x 82 8.0 8.4 32 28 ALS4(1)(2)682KE100
100 10000 KF 51 x 105 10.9 11.5 21 18 ALS4(1)(2)103KF100
100 15000 ND 77 x 75 9.7 9.9 28 26 ALS4(1)(2)153ND100
100 15000 MF 66 x 105 15.8 16.7 14 12 ALS4(1)(2)153MF100
100 15000 QD 90 x 75 12.9 13.4 20 18 ALS4(1)(2)153QD100
100 22000 QC 90 x 67 14.3 15.2 17 16 ALS4(1)(2)223QC100
100 22000 NF 77 x 105 15.5 16.0 15 13 ALS4(1)(2)223NF100
100 22000 QH 90 x 98 18.4 19.0 13 11 ALS4(1)(2)223QH100
100 33000 NP 77 x 146 21.6 22.2 10 10 ALS4(1)(2)333NP100
100 47000 QP 90 x 146 25.9 26.5 9 8 ALS4(1)(2)473QP100
100 47000 NT 77 x 220 35.4 36.6 7 6 ALS4(1)(2)473NT100
100 100000 QT 90 x 220 37.2 37.9 6 6 ALS4(1)(2)104QT100
200 680 DA 36 x 52 2.9 4.0 195 154 ALS4(1)(2)681DA200
200 680 DB 36 x 62 3.3 4.6 188 147 ALS4(1)(2)681DB200
200 1000 DE 36 x 82 4.3 6.1 128 100 ALS4(1)(2)102DE200
200 1500 DF 36 x 105 5.6 7.8 86 67 ALS4(1)(2)152DF200
200 2200 KE 51 x 82 6.8 8.0 71 58 ALS4(1)(2)222KE200
200 3300 KF 51 x 105 9.1 10.9 47 38 ALS4(1)(2)332KF200
200 4700 ND 77 x 75 8.7 9.4 48 42 ALS4(1)(2)472ND200
200 6800 MF 66 x 105 12.9 14.5 27 23 ALS4(1)(2)682MF200
200 6800 QC 90 x 67 11.8 15.9 37 28 ALS4(1)(2)682QC200
200 6800 QD 90 x 75 10.9 11.7 36 32 ALS4(1)(2)682QD200
200 6800 NF 77 x 105 13.4 14.8 29 25 ALS4(1)(2)682NF200
200 10000 QH 90 x 98 15.4 16.6 23 20 ALS4(1)(2)103QH200
200 10000 NP 77 x 146 19.3 21.5 19 16 ALS4(1)(2)103NP200
200 15000 QP 90 x 146 24.2 26.5 14 12 ALS4(1)(2)153QP200
200 22000 NT 77 x 220 29.5 31.6 11 10 ALS4(1)(2)223NT200
200 33000 QT 90 x 220 34.3 36.4 10 8 ALS4(1)(2)333QT200
250 470 DA 36 x 52 2.5 3.9 235 174 ALS4(1)(2)471DA250
250 680 DB 36 x 62 3.2 4.8 164 122 ALS4(1)(2)681DB250
250 1000 DE 36 x 82 4.2 6.3 111 83 ALS4(1)(2)102DE250
250 1000 DF 36 x 105 4.7 7.5 108 79 ALS4(1)(2)102DF250
250 1500 KE 51 x 82 6.2 8.2 83 64 ALS4(1)(2)152KE250
250 2200 KF 51 x 105 8.3 11.1 56 42 ALS4(1)(2)222KF250
250 3300 ND 77 x 75 8.5 9.7 52 42 ALS4(1)(2)332ND250
250 4700 MF 66 x 105 12.3 15.0 30 24 ALS4(1)(2)472MF250
250 4700 QC 90 x 67 10.9 16.3 42 30 ALS4(1)(2)472QC250
250 4700 QD 90 x 75 10.7 12.1 38 32 ALS4(1)(2)472QD250
250 6800 NF 77 x 105 12.1 13.4 30 25 ALS4(1)(2)682NF250
250 6800 QH 90 x 98 15.1 17.3 25 20 ALS4(1)(2)682QH250
250 10000 NP 77 x 146 17.5 19.5 19 16 ALS4(1)(2)103NP250
250 15000 QP 90 x 146 21.9 23.9 14 12 ALS4(1)(2)153QP250
250 15000 NT 77 x 220 29.2 33.0 12 10 ALS4(1)(2)153NT250
250 22000 QT 90 x 220 34.1 38.2 11 9 ALS4(1)(2)223QT250
350 220 DA 36 x 52 1.8 4.5 457 303 ALS4(1)(2)221DA350
350 330 DB 36 x 62 2.4 5.7 307 204 ALS4(1)(2)331DB350
350 470 DE 36 x 82 3.0 7.2 215 143 ALS4(1)(2)471DE350
350 680 DF 36 x 105 3.9 8.9 149 99 ALS4(1)(2)681DF350
350 1000 KE 51 x 82 5.0 10.0 113 78 ALS4(1)(2)102KE350
350 1500 KF 51 x 105 6.8 12.5 75 52 ALS4(1)(2)152KF350
350 2200 ND 77 x 75 8.3 13.7 66 49 ALS4(1)(2)222ND350
350 2200 MF 66 x 105 9.8 17.9 51 35 ALS4(1)(2)222MF350
350 2200 QC 90 x 67 9.1 16.4 74 52 ALS4(1)(2)222QC350
350 2200 QD 90 x 75 9.4 17.8 56 40 ALS4(1)(2)222QD350
350 3300 NF 77 x 105 11.7 19.7 41 30 ALS4(1)(2)332NF350
350 4700 QH 90 x 98 14.6 23.2 31 23 ALS4(1)(2)472QH350
350 4700 NP 77 x 146 15.7 23.6 27 20 ALS4(1)(2)472NP350
350 6800 QP 90 x 146 20.3 29.7 19 14 ALS4(1)(2)682QP350
350 6800 NT 77 x 220 25.4 35.7 23 17 ALS4(1)(2)682NT350
350 10000 QT 90 x 220 31.0 42.7 21 16 ALS4(1)(2)103QT350
400 220 DA 36 x 52 2.0 4.9 542 349 ALS4(1)(2)221DA400
400 220 DB 36 x 62 2.1 5.4 537 344 ALS4(1)(2)221DB400
400 470 DE 36 x 82 3.2 7.8 254 164 ALS4(1)(2)471DE400
400 470 DF 36 x 105 3.5 8.5 251 161 ALS4(1)(2)471DF400
400 680 KE 51 x 82 4.2 9.8 183 121 ALS4(1)(2)681KE400
400 1000 KF 51 x 105 5.6 12.3 124 81 ALS4(1)(2)102KF400
400 1500 ND 77 x 75 7.6 13.9 93 64 ALS4(1)(2)152ND400
400 2200 MF 66 x 105 9.7 18.1 60 41 ALS4(1)(2)222MF400
400 2200 QC 90 x 67 9.4 15.9 63 44 ALS4(1)(2)222QC400
400 2200 QD 90 x 75 10.0 17.5 67 47 ALS4(1)(2)222QD400
400 2200 NF 77 x 105 10.6 19.8 62 42 ALS4(1)(2)222NF400
400 3300 QH 90 x 98 13.6 23.4 44 31 ALS4(1)(2)332QH400
400 4700 NP 77 x 146 15.4 22.6 33 23 ALS4(1)(2)472NP400
400 6800 QP 90 x 146 20.0 28.3 23 17 ALS4(1)(2)682QP400
400 6800 NT 77 x 220 23.5 33.3 21 15 ALS4(1)(2)682NT400
400 10000 QT 90 x 220 29.0 40.3 18 14 ALS4(1)(2)103QT400
415 220 DA 36 x 52 2.0 5.0 530 331 ALS4(1)(2)221DA415
415 220 DB 36 x 62 2.1 5.4 524 325 ALS4(1)(2)221DB415
415 330 DE 36 x 82 2.8 7.1 349 217 ALS4(1)(2)331DE415
415 470 DF 36 x 105 3.5 8.7 245 152 ALS4(1)(2)471DF415
415 680 KE 51 x 82 4.4 9.9 180 115 ALS4(1)(2)681KE415
415 1000 KF 51 x 105 5.8 12.3 122 77 ALS4(1)(2)102KF415
415 1500 ND 77 x 75 7.6 13.8 95 65 ALS4(1)(2)152ND415
415 2200 MF 66 x 105 9.7 18.1 60 39 ALS4(1)(2)222MF415
415 2200 QC 90 x 67 9.4 15.8 61 43 ALS4(1)(2)222QC415
415 2200 QD 90 x 75 10.0 17.3 67 47 ALS4(1)(2)222QD415
415 2200 NF 77 x 105 10.7 19.7 61 41 ALS4(1)(2)222NF415
415 3300 QH 90 x 98 13.6 23.3 44 30 ALS4(1)(2)332QH415
415 3300 NP 77 x 146 14.2 23.6 40 27 ALS4(1)(2)332NP415
415 4700 QP 90 x 146 18.5 29.8 29 19 ALS4(1)(2)472QP415
415 6800 NT 77 x 220 23.0 32.5 21 14 ALS4(1)(2)682NT415
415 10000 QT 90 x 220 28.3 39.3 18 14 ALS4(1)(2)103QT415
450 150 DA 36 x 52 1.8 4.5 721 360 ALS4(1)(2)151DA450
450 150 DB 36 x 62 1.9 4.8 715 356 ALS4(1)(2)151DB450
450 220 DE 36 x 82 2.5 6.2 487 242 ALS4(1)(2)221DE450
450 330 DF 36 x 105 3.2 7.9 325 162 ALS4(1)(2)331DF450
450 470 KE 51 x 82 4.1 9.0 239 123 ALS4(1)(2)471KE450
450 680 KF 51 x 105 5.3 11.3 164 84 ALS4(1)(2)681KF450
450 1000 ND 77 x 75 7.0 13.2 125 69 ALS4(1)(2)102ND450
450 1500 MF 66 x 105 8.9 17.1 79 42 ALS4(1)(2)152MF450
450 1500 QC 90 x 67 8.7 15.3 78 57 ALS4(1)(2)152QC450
450 1500 QD 90 x 75 9.3 16.7 87 49 ALS4(1)(2)152QD450
450 1500 NF 77 x 105 9.8 18.7 80 43 ALS4(1)(2)152NF450
450 2200 QH 90 x 98 12.5 22.5 58 32 ALS4(1)(2)222QH450
450 2200 NP 77 x 146 13.1 22.9 54 29 ALS4(1)(2)222NP450
450 3300 NP 77 x 146 14.6 22.0 38 27 ALS4(1)(2)332NP450
450 3300 QP 90 x 146 14.2 28.9 37 20 ALS4(1)(2)332QP450
450 4700 NT 77 x 220 21.9 32.0 27 15 ALS4(1)(2)472NT450
450 6800 QT 90 x 220 23.5 39.2 19 15 ALS4(1)(2)682QT450
500 220 DA 36 x 52 2.1 4.3 1000 810 ALS4(1)(2)221DA500
500 220 DB 36 x 62 2.1 4.4 1000 808 ALS4(1)(2)221DB500
500 330 DE 36 x 82 2.6 5.5 670 540 ALS4(1)(2)331DE500
500 470 DF 36 x 105 3.2 6.4 470 380 ALS4(1)(2)471DF500
500 680 KE 51 x 82 4.7 8.8 338 270 ALS4(1)(2)681KE500
500 1000 KF 51 x 105 5.7 10.6 230 187 ALS4(1)(2)102KF500
500 1500 ND 77 x 75 8.0 13.2 160 130 ALS4(1)(2)152ND500
500 2200 NF 77 x 105 10.2 17.1 110 90 ALS4(1)(2)222NF500
500 3300 NP 77 x 146 13.1 20.2 82 68 ALS4(1)(2)332NP500
500 4700 NT 77 x 220 15.3 22.9 60 48 ALS4(1)(2)472NT500
500 1500 QC 90 x 67 8.4 14.0 160 130 ALS4(1)(2)152QC500
500 2200 QD 90 x 75 10.2 16.3 112 90 ALS4(1)(2)222QD500
500 3300 QH 90 x 98 13.1 20.3 75 60 ALS4(1)(2)332QH500
500 3300 QP 90 x 146 14.1 23.4 80 66 ALS4(1)(2)332QP500
500 6800 QT 90 x 220 20.0 29.3 41 34 ALS4(1)(2)682QT500
Kevésbé
Olvass tovább
Hozzászólások (0)
