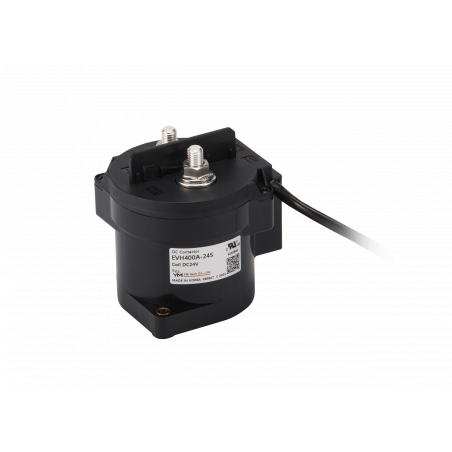

DC EVH400 relė
  • DC EVH400 relė

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: YM Tech

DC EVH400 relė

  • EVH400

Application

  • Charging System,
  • Battery Energy Storage System,
  • Solar System,
  • Fuel Cell Vehicle
  • etc.

Magnet coil ratings

Nominal voltage(V)Inrush Coil currnet 150ms (Max.)Holding Coil currentPick-up voltage (V)Max.Drop-out voltage (V)Min.Holding voltage (V)Min.Max. voltage (V)Remark
12S 12V 2.6A 0.45A 9VDC 6VDC 7.5VDC 18VDC PWM economizer
24S 24S 1.4A 0.20A 18VDC 12VDC 15.0VDC 32VDC
AS 12~36V 2.6A 0.15~0.45A 9VDC 6VDC 7.5VDC 36VDC
12D 12V 4.4A 0.4A 9VDC 6VDC 7.5VDC 18VDC Double coil economizer
24D 24V 2.6A 0.3A 18VDC 12VDC 15.0VDC 32VDC

Contact ratings

Type1Pole resistor load
Max. Continous current (wire size 240㎟) 400A
Max. switching current 500VDC 900A
1000VDC 600A
Contact rating switching voltages 12~1500VDC
Max. cut-off current 400VDC 2000A 10 Ops.
Voltage drop across Contacts per 100A 30mV Max.
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact currnet, Min 100mA 8VDC
Gold alloy Aux. Contacts Max. (Low level circiut type) 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. (Low level circiut type) 1mA 5VDC / 1mA 5VAC

Characteristics

Expected lifeMechanical (Min.)5 X 105
Electric (Min.) (Resistor) 750VDC 400A 6 X 103
1000VDC 400A 1 X 103
1000VDC 200A 1 X 104
1500VDC 200A 2 X 103
Initial insulation resistance Min. 200MΩ 1000VDC
Initial breakdown voltage Between open contacts 4500VAC 60 Sec. 5mA
Between contacts & coil 4500VAC 60 Sec. 5mA
Operate time (at 20°C) Max. 40ms
Release time (at 20°C) Max. 10ms
Shock resistance Functional Min 196 ㎨ {20G}
Destructive Min. 490 ㎨ {50G}
Vibration resistance Functional 196 ㎨ {20G} 80 to 500Hz
Destructive 196 ㎨ {20G} 80 to 500Hz
Conditions for operation transport and storage Ambient temperature -40℃ to +85°C
Humidity 5 to 85% R.H.
Unit weight PWM 950g
Double coil 1000g
