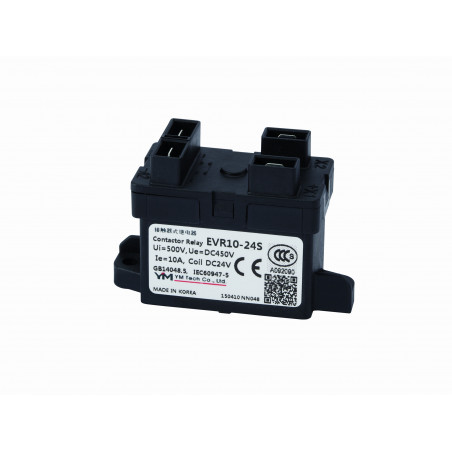

![DC EVR10 relė DC EVR10 relė](https://www.dacpol.eu/20271-large_default/40997-dc-evr10-rele.jpg)
![DC EVR10 relė DC EVR10 relė](https://www.dacpol.eu/20271-large_default/40997-dc-evr10-rele.jpg)
Jūs turite būti prisijungę
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją
please use latin characters
Application
Magnet coil ratings
Nominal voltage (v) | Nominal current (mA) | Coil resistance (Ω) | Pick-up voltage (V)Max | Drop-out voltage (V)Min | Max. voltage (V)Max | Coil power(W) dissipation | |
---|---|---|---|---|---|---|---|
AC | 6 | 226.5 | 9.5 | 80% Min. | 30% Max | 130% | 1.5~1.8VA (60Hz) |
12 | 112 | 35 | |||||
24 | 56 | 140 | |||||
50 | 28 | 600 | |||||
100 / 110 | 11.2 / 12.4 | 3,030 | |||||
200 / 220 | 8.8 / 9.7 | 10,800 | |||||
DC | 6 | 200 | 30 | 75% Min. | 10% Max. | 130% | 1.1~1.3 Approx. |
12 | 100 | 120 | |||||
28 | 43 | 650 | |||||
24 | 50 | 480 | |||||
36 | 34 | 1,080 | |||||
48 | 25 | 1,920 | |||||
60 | 20 | 3,000 | |||||
72 | 17 | 4,320 | |||||
100 / 110 | 11 / 12 | 9,350 |
Contact ratings
Type | 1Pole Resistive load (L/R≤1㎳) |
---|---|
Max. switching current (wire size 2.0㎟) | 10A |
Max. switching capacity | 1200VDC 2A |
Contact rating switching voltages | 12~1200VDC |
900VDC 10A(Resistive load)(+ polarity Main Terminal A1 and A2) each NO contact connected in series | |
Max. contact performance (wire size 2.0㎟) | 30A 120Sec. |
20A 180Sec. | |
Voltage drop across contacts per 10A | 0.1V Max. |
Min, permissible load | 12V DC 0.1A |
Description | S.P.S.T On/Off, (1a) |
Characteristics
Initial insulation resistance | Min. 100㏁ 500V DC | ||
---|---|---|---|
Expected life | Mechanical (Min.) | 2×106 | |
Electric (L/R≤1㎳) | 450V DC 10A | 7×104 | |
250V DC 15A | 2×105 | ||
Initial breakdown voltage | Between open contacts | 2500V AC 60 Sec. 10mA | |
Between contacts & coil | 2500V AC 60 Sec. 10mA | ||
Operate time (at 20℃) | Max. 20㎳ | ||
Release time (at 20℃) | Max. 5㎳ | ||
Shock resistance | Functional | Min 196 ㎨ {20G},(10㎲) | |
Destructive | Min 490 ㎨ {50G} | ||
Vibration resistance | Functional | 43 ㎨ {4.4G} 10 to 200㎐,(10㎲) | |
Destructive | 43 ㎨ {4.4G} 10 to 200㎐ | ||
Conditions for operation transport and storage | Ambient temperature | -40℃ to +85℃ | |
Humidity | 5 to 85% R.H. | ||
Unit weight | 65g |
