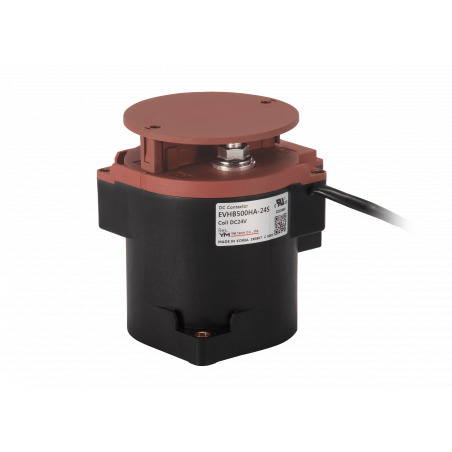

DC EVHB500h relė

  • EVHB500h

Application

  • Electric Vehicle,
  • Chargign System,
  • Battery Energy Storage System,
  • Solar System
  • etc.

Magnet coil ratings

Nominal voltage(V)Inrush Coil currnet 150ms(Max.)Holding Coil currnetPick-up voltage (V)max.Drop-out voltage (V)min.Holding voltage (V)min.Max. voltage (V)Remark
12S 12V 3.0A 0.4A 9VDC 6VDC 7.5VDC 32VDC PMV economizer
24S 24V 1.4A 0.2A 18VDC 12VDC 10.0VDC 48VDC
AS 12~36V 3.1A 0.4~0.2A 9VDC 6VDC 7.5VDC 48VDC
12D 12V 4.7A 0.6A 9VDC 6VDC 7.5VDC 18VDC Double coil economizer
24D 24V 2.5A 0.3A 18VDC 12VDC 13.5VDC 32VDC

Contact ratings

Type1Pole Resistor load
Max. Continous currnet (wire size 325㎟) 500A
Max. switching currnet 1000VDC 1000A
1500VDC 800A
400VDC 2000A
Max. switching voltage 1500VDC
Contact rating switching voltages 12~1500VDC
Voltage drop across contacts per 100A 30mV Max
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux, Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux, Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. (Low level circuit type) 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. (Low level circuit type) 1mA 5VDC / 1mA 5VAC

Characteristics

Expected lifeMechanical (Min.)5 X 10 5
Electric (Min.) (Resistor)1500VDC(+),(-) 150A6 X 10 3
1500VDC(+),(-) 200A2 X 10 3
1500VDC(+),(-) 500A5 X 10
Initial insulation resistance Min. 200MΩ 1000VDC
Initial breakdown voltage Between open contacts 4500VDC 60 Sec. 5mA
Operate time (at 20°C) Max. 50ms
Release time (at 20°C) Max. 10ms
Shock resistance Functional Min 196 ㎨ {20G}
Destructive Min 490 ㎨ {50G}
Vibration resistance Functional 98 ㎨ {10G} 80 to 200Hz
Destructive 98 ㎨ {10G} 80 to 200Hz
Conditions for operation transport and storage Ambient temperature -40°C to +85°C
Humidity 5 to 85% R.H.
Unit weight 1300g
