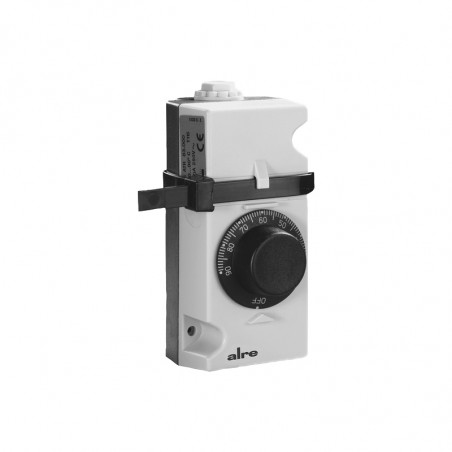

Application
Control or monitoring of temperatures at heat registers, pipelines or tanks, for example, temperature-dependent pump control or control of motor valves.
Technical data
Housing colour: | grey (lower part like RAL 7016, upper part like RAL 7035) |
Sensor material: | Cu |
Ambient temperature: | 0…80 °C |
Permissible atmospheric humidity: | Max. 95% rel. humidity, non-condensing |
Operating voltage: | none |
Max. switching current: | 16 (2) A |
Min. switching current: | 150 mA |
Max. switching voltage: | 230 VAC, 50 Hz |
Min. switching voltage: | 24 VAC, 50 Hz |
Switching element: | microswitch |
Switching contact: | toggler, potential-free |
Control function: | heating or cooling |
Hysteresis: | Approx. 4 K |
Electrical connection: | screw-type terminals |
Mounting/attachment: | On pipe by means of a cable tie (450 x 8.9 mm, easy to remove, heat-resistant up to 105 °C) |
Protection class: | I |
Safety and EMC: | according to DIN EN 60730 |
Sensor: | liquid-filled capillary |
General features: | Scale: degrees Celsius |
Scope of delivery: | Controller, cable ties |
Type | Item no. | Control range | Max. sensor temperature | Features | PG |
---|---|---|---|---|---|
ATR 83.000 | C1810492 | 30…90 °C | 100 °C | external setting, TR, IP 20 | II |
ATR 83.100 | C1810493 | 30…90 °C | 100 °C | internal setting, TW, IP 20 | II |
ATR 83.001 | C1810494 | 0…60 °C | 80 °C | external setting, TR, IP 20 | II |
ATR 83.101 | C1810495 | 0…60 °C | 80 °C | internal setting, TW, IP 20 | II |
TR = temperature controller, TW = temperature monitor
Accessories | Item no. | Features | PG |
---|---|---|---|
ATRS-1 | C1809518 | Temperature determination set for ATR with external setting (ATR 83.000, ATR 83.001) | II |
WP-01 | G9990180 | heat conduction paste 2 ml | II |
