Gamintojas: TEXA industries

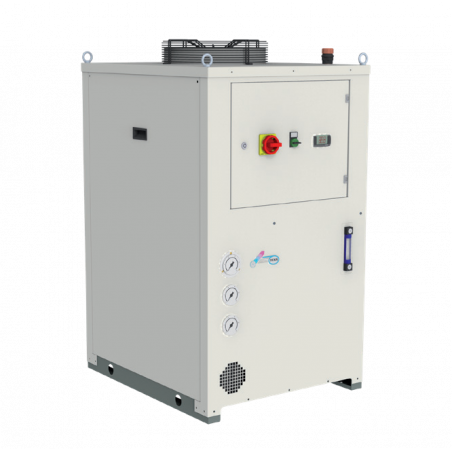

LCW15-22 2 dydžio neigiamos temperatūros skysčių aušintuvai

LCW15-22 Size 2

Negative temperature liquid chillers

EVAPORATOR
With brazed stainless-steel plates with sensor for protection against freezing.
AIR CONDENSER
Finned high-efficiency copper tube condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille. Fan adjustment step pressure switch.
LIQUID CIRCUIT
Liquid circuit composed entirely of non-ferrous material in contact with the liquid to prevent contamination. Stainless-steel centrifugal pump with 3 bar available head. Stainless-steel storage tank complete with drain valve, electrical level and visual level indicator, 0-10 bar pressure gauge, protective flow switch, regulation sensor.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX200 control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
HR - Fluid heating element
LTA - Operation at low ambient temperatures
FP - Polyurethane air filter
RU - Castors
TD - Differential fluid temperature management (two sensors)
- HIGH-pressure pump version "H" - 5 bar.
- Non-standard paint/coating
- Satin AISI 304 stainless steel framework
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out. Case heating element for oil. Mechanical management coolant injection valve.
REFRIGERATION CIRCUIT
Complete with charging port, drier filter, liquid receiver, thermostatic valve, solenoid valve, liquid viewing port, high- and low-pressure pressure switch, intake oil separator, R404A refrigerant. Solenoid valve for liquid injection. High- and low-pressure gas pressure gauge.
