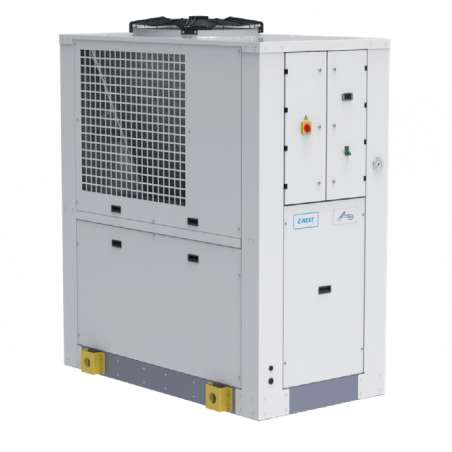

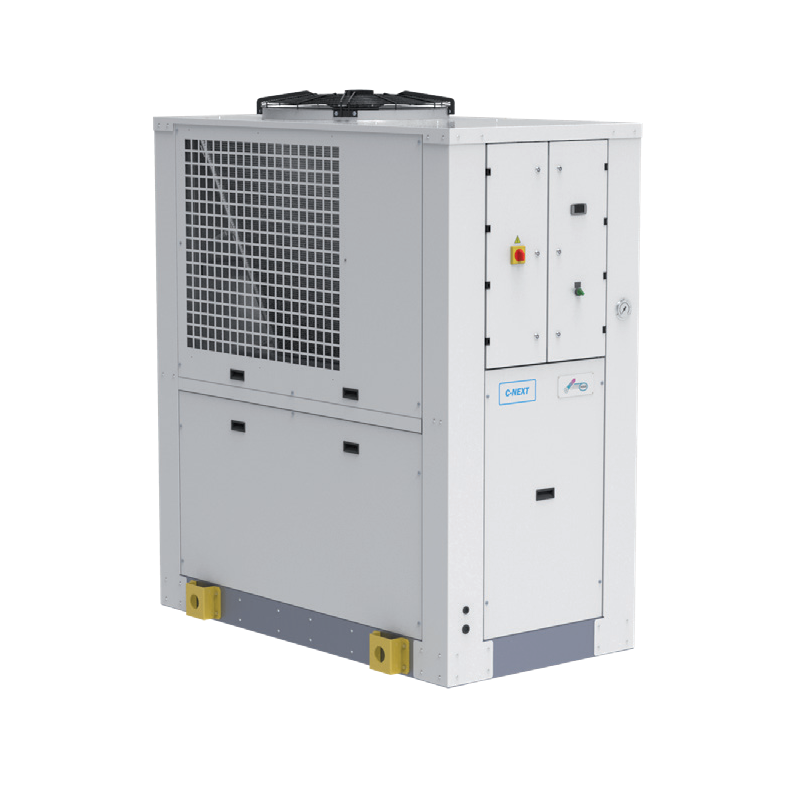

TAOD0-F8 4 dydžio Pramoniniai alyvos aušintuvai
  • TAOD0-F8 4 dydžio Pramoniniai alyvos aušintuvai
  • TAOD0-F8 4 dydžio Pramoniniai alyvos aušintuvai

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: TEXA industries

TAOD0-F8 4 dydžio Pramoniniai alyvos aušintuvai

TAOD0-F8 Size 4

Industrial oil chillers

EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with screw pump without tank, with maximum available pressure 10 bar, 0-25 bar oil pressure gauge, regulation sensor, protective flow switch.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX350C control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. RS485 connection. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
OM - Unit built for outdoor operation down to -10 °C ambient temp.
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
UL1 - UL certified electrical panel and components
- Outdoor installation optionals
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels.
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant. Optional 2-step cooling power regulation (standard on TAOF8).
mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

TAOD0-F8 Size 4

Industrial oil chillers

EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with screw pump without tank, with maximum available pressure 10 bar, 0-25 bar oil pressure gauge, regulation sensor, protective flow switch.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX350C control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. RS485 connection. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
OM - Unit built for outdoor operation down to -10 °C ambient temp.
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
UL1 - UL certified electrical panel and components
- Outdoor installation optionals
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels.
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant. Optional 2-step cooling power regulation (standard on TAOF8).
