Kvarciniai infraraudonųjų spindulių šildytuvai, tipas ICH-401 (FQE)

Product Description

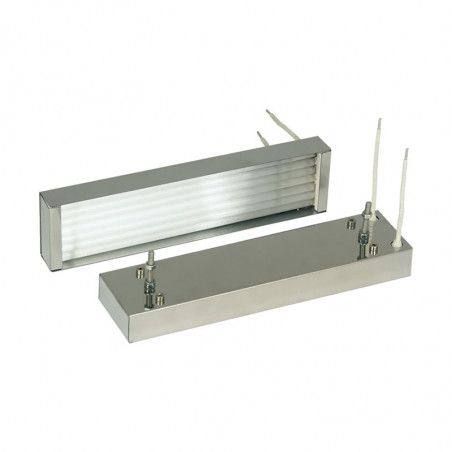

ICH-401 Full Quartz Infrared Heating Elements (FQE) is a cassette-style block of 7 full-lengths (228mm/~9inch) energy-efficient IR quartz emitters secured in a heat resistant stainless steel housing.

It is an instantly responding and a very efficient source of radiant heat. It can heat up in just 1-3 minutes and cool off in about 20 seconds. These emitters are essential tools for the processes that need an immediate heat-up and cool down, where the product could be damaged because of a heater remaining too hot after the power is cut off.

  • Quartz lamp tube has a Fe-Cr-Al alloy resistance coil wire inside, and optionally a built-in thermocouple TXA (Chromel-Alumel) with type "K" power leads.
  • ICH-401 quartz emitters (250 - 1,000w) produce infrared heating at the maximum allowed lamps temperature up to 730 °С, and surface radiation energy up to 6.0 W/cm.
  • The average operating lifespan is above 7,000 hours.
  • Supplied with standard 100 mm (4 inches) ceramic beaded power leads.


Electric Power 250W 400W 500W 650W 1000W
Power density, W/m² 15 23 29 38 58
Maximum surface temperature1), °C / °F 410/770 510/950 560/1040 620/1148 730/1346
Specific surface radiation energy1), W/cm² 1,05 1,81 2,32 3,07 4,88
Useful wavelength, µm 2,15-10,3 1,9-8,95 1,8-8,35 1,65-8,0 1,45-7,2
Maximum spectral radiation intensity wavelength, µm 4,2 3,7 3,5 3,2 2,9
Time needed to reach the operating temperature1), min 3 3 3 2 1
Emitter maximum temperature, °C / °F 780/1436
AC power supply (50 Hz), V 220/230
Operation mode Long term, under supervision
Case, emitter dimensions (length x width, mm/inch) 248х60, 228х59 / 9.76x2.36, 8.97x2.32
Effective emitter surface, mm² / in² 1719/2.66
Weight, g / oz 330/11.64

1) reached at ambient temperature from +18 to +25°C



Examples of Applications

ICH-400 series infrared quartz heaters are used for industrial and commercial heating systems. An instant heat response is required: thermoforming, drying chambers, infrared tunnels and panels, heating and drying conveyors, and program alternating power infrared soldering stations.

  • Thermoforming
  • Shrink packaging
  • Vulcanizing and curing rubber
  • Laminating
  • Curing
  • Sealing
  • Fusing processes
  • Space heaters
  • Drying processes (moisture, paint, coatings, textiles, photos, and sand core castings)


Custom Optionsa

  • Longer power leads.
  • Custom voltage supply: 110 - 380V.
  • Built-in (Type K Chromel-alumel) temperature control sensor: type TXA (K) thermocouple can be built into the emitter body to control the emitting surface temperature during heating.


After Service and Warranty

  • Guaranteed service life expectancy: at least five years.
  • Estimated life span at least 5,000 - 7,000 hours of non-stop operation.
  • The manufacturer guarantees the product's compliance with the requirements of the current regulatory documentation, subject to the conditions of transportation, storage, installation, and operation.
  • Warranty period: 12 months from the date of purchase.
  • During the warranty period, the consumer can have the faulty emitter replaced at the place of the purchase.
  • The warranty does not apply to the emitters having mechanical damage due to other signs of violation of transportation, storage, and operation rules.


Dimensions
