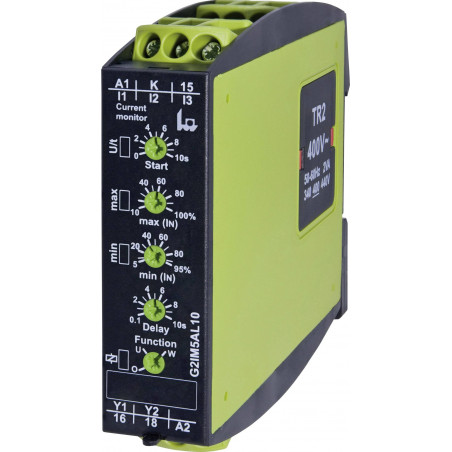

G2IM5AL10 – srovės stebėjimo relė
  • G2IM5AL10 – srovės stebėjimo relė

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: TELE Haase

G2IM5AL10 – srovės stebėjimo relė

  • G2IM5AL10
  • Vardinė vertė 0,02/1/5A AC/DC
  • Išėjimas 1 x przełączalne
  • Fazių skaičius jednofazowe
  • maitinimo šaltinis moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

mažiau
Skaityk daugiau

Atsiųskite užklausą

Ar Jūs domina šis produktas? Ar Jums reikia papildomos informacijos ar individualaus pasiūlymo?

Susisiekite su mumis
KLAUSKITE PRODUKTO close
Dėkojame, kad atsiuntėte žinutę. Atsakysime kuo greičiau.
KLAUSKITE PRODUKTO close
Naršyti
atsiųsti paklausimą

Pridėti į norų sąrašą

tu turi būti prisijungęs

  • Vardinė vertė 0,02/1/5A AC/DC
  • Išėjimas 1 x przełączalne
  • Fazių skaičius jednofazowe
  • maitinimo šaltinis moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
