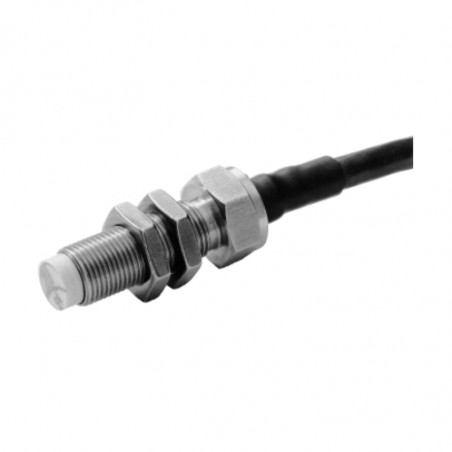

Vientisas artumo jutiklis ZS-00313-12
  • Vientisas artumo jutiklis ZS-00313-12

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: Honeywell

Vientisas artumo jutiklis ZS-00313-12

Environment-proof self-contained proximity sensor enclosed in a rugged hermetically sealed ceramic/stainless steel housing, designed to meet the requirements of ground mobile and naval applications.



Features

  • All metal sensing
  • Small size M12 housing
  • High frequency switching
  • Integral LEDs to indicate supply and output status
  • High level of electronics protection


Typical applications

  • Ammunition loading systems
  • Gun turret position control
  • Door and hatch open/closed monitoring


Specifications

Nominal sensing distance (mm) 4
Effective sensing distance (mm) 3,6 to 4,4
Stability of sensing distance (%) +12.5/-7.5 within -25° C to +70° C
+25/-7.5 within -40° C to +100° C
Reproduceability (%) ≤1
Repetition rate of sensing (Hz) ≤2000
Power-on delay (ms) ≤10
Supply voltage range (V) 12 to 32
Ripple voltage (Vss) ≤7
Surge voltage (V) 100V, 50ms
Transients (V) 250V, 50μs
Voltage drop (V) ≤2,5 @50mA
Residual current (μA) ≤100
Operating temperature range (°C) -40 to +100
Storage temperature (°C) -55 to +100
