Gamintojas: STEGO

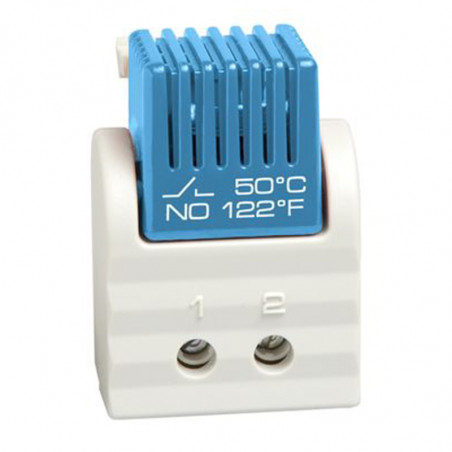

Miniatiūrinis termostatas FTO 011/ FTS 011 serijos

Properties
Small dimensions.
Easy to assemble.
Default temperature set.
High switching over tolerance.
Thermostat FTO 011
Thermostat NC (red) for control in heating systems.
Thermostat FTO 011
Thermostat  NC (red)
for control in heating systems.




Technical data
Sensor type
Bimetal
Contact type
Fast
contact resistance
< 20 Ohm
Life time
100 000 cycles
Max contact current
AC 240V 5(1,6)A (resistant load)
DC 30W
test current
AC 10A
EMC
EN 55014-1 -2, EN61000-3-2, EN 61000-3-3
Terminals
2 pole 2,5mm
Mounting
For DIN 35mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
47 x 33 x 33 mm
Weight
ok.23g
Assembly
arbitrary
Operation temperature
-20 do +80°C
IP
IP20
Certificates VDE i UL

Catalogue number
Article number Type Turn off temperature Turn on temperature
01160.0-00 NC 15°C/59° K 50°C/41°K
01160.0-01 NC 25°C/77°K 15°C/59°K

Article number Type Turn off temperature Turn on temperature
01161.0-00 NO 50°C/122°K 40°C/104°K
01161.0-01 NO 60°C/140°K 50°C/122°K
01161.0-02 NO 35°C/95°K 25°C/77°K
