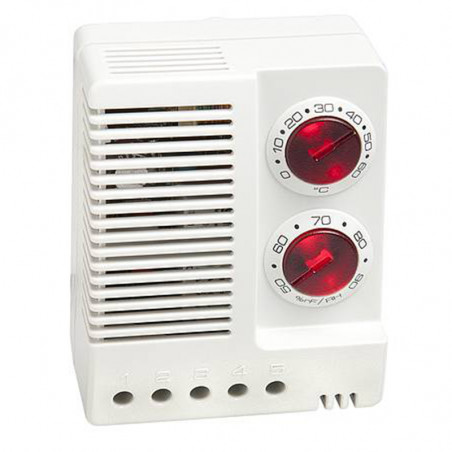

Elektroninė higroterma ETF 012
  • Elektroninė higroterma ETF 012

Nuotraukos yra skirtos tik informaciniams tikslams. Peržiūrėkite produkto specifikaciją

please use latin characters

Gamintojas: STEGO

Elektroninė higroterma ETF 012

Temperature and air humidity set up
Optic operation indicator (LED)
High contact current
For DIN bus

Technical data
Switch over difference (temperature)
2K(±1 K tolerance)
Switch over difference (humidity)
4 % humidity (± 1 % tolerance)
Reaction time (humidity)
ok. 160 Sec.
Contact type
Switch over contact
Contact resistance
< 10 mOhm
Lifetime (NC): 50 000 cycles (NO): 100 000 cycles
Max switch over current
NC: AC 250 V 6(1) A
NO: AC 250 V 8(1,6) A
NC: AC 120 V 6(1) A
NO: AC 120 V8 (1,6) A DC24V4A
EMC
EN 55014-1 -2, EN 61000-3-2, EN 61000-3-3
Operation indicator
LED
Terminals 5 pole 2,5 mm2
Mounting
For DIN 35 mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
77 x 60 x 43 mm
Weight
ok. 20 g
Assembly
Vertical
Operation temperature
0 do 60 °C (32 do 140 °F) /-20 do 80 °C (-4 do 176 T)
IP IP20






Catalogue number

Article number Power supply Temperature range Humidity range Certificates
01230.0-00 AC 230 V, 50/60 Hz 0 do 60 °C 50 do 90 % VDE, UL File No. E164102
01230.9-00 AC 120 V, 50/60 Hz 32 do 140 °F 50 do 90 % UL File No. E164102
01230.9-01 AC 120 V, 50/60 Hz 0 do 60 °C 50 do 90 % UL File No. E164102
